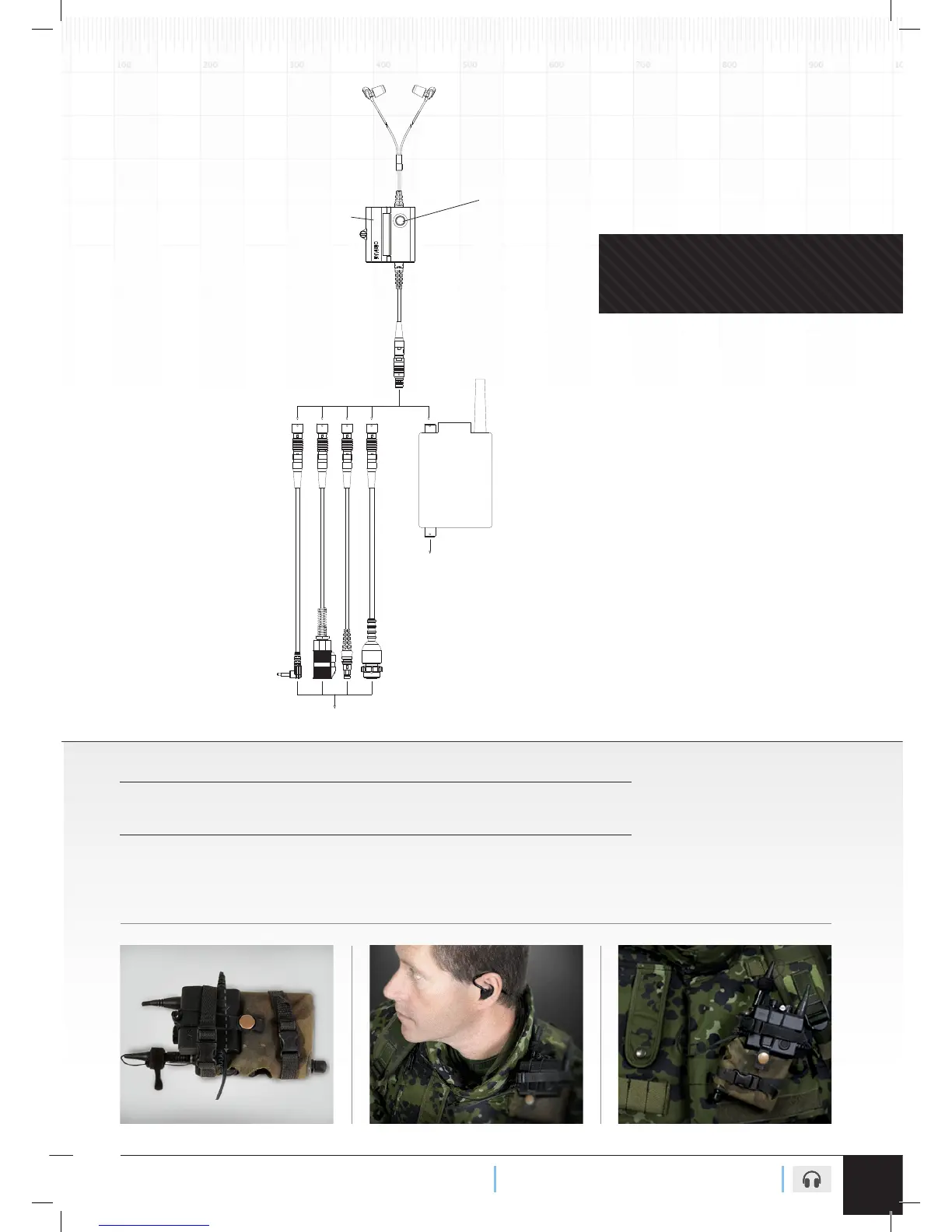

The gure above illustrates the different components in the headset system, along with the radio. The headset is hard wired without the need
for connectors into the control unit which houses the hear-thru electronics and power supply. A short cable with the radio connector is also
hard wired into the control unit, creating a trouble free solution that easily mounts on the soldier. The images below illustrate the INVISIO S10
mounted on the Selex PRR / EZ PRR. It has been designed to ensure that no additional space is required on the soldier.
INVISIO
S10
Product System Diagram
Selex PRR
Radio
Hear-Thru
ON/OFF
S10 Control Unit
Internal
AA Battery
X5 Headset
Secondary Radio
via Selex PRR
Other Communication Device
via Adapter Cable
3
INVISIO S10 / Hearing Protection Headset with Hear-Thru
