Cables specifications - Inxpect SRE 100 and
200 Series
Page 16/17
08000016
15 metres
4.1.2 SRE 200 Series sensor
It is possible to order the following lengths of cable from Inxpect:
Purchase Code
Length
Description
08000120
3 metres
cable between a sensor
and another sensor,
TPU, connectors M12
90° angled, A-coded
08000121
5 metres
08000122
10 metres
08000123
15 metres
5. Bus terminator

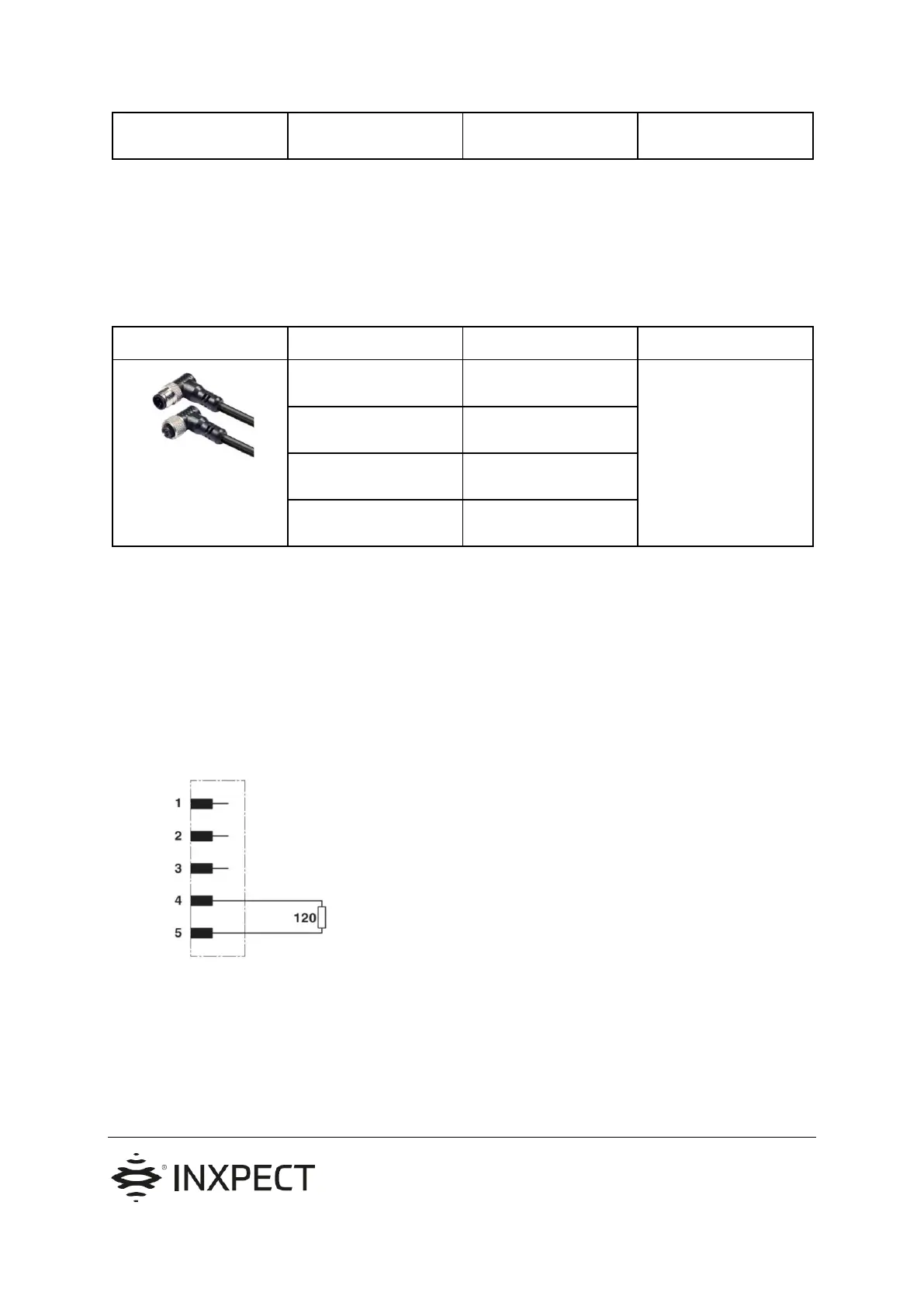

For the last sensor in the CAN bus a termination resistor of 120 Ω must be installed between the signals CAN_H
and CAN_L, as indicated in the following picture.
It is possible to order an M12 male connector A-coded including the bus terminator resistor.
