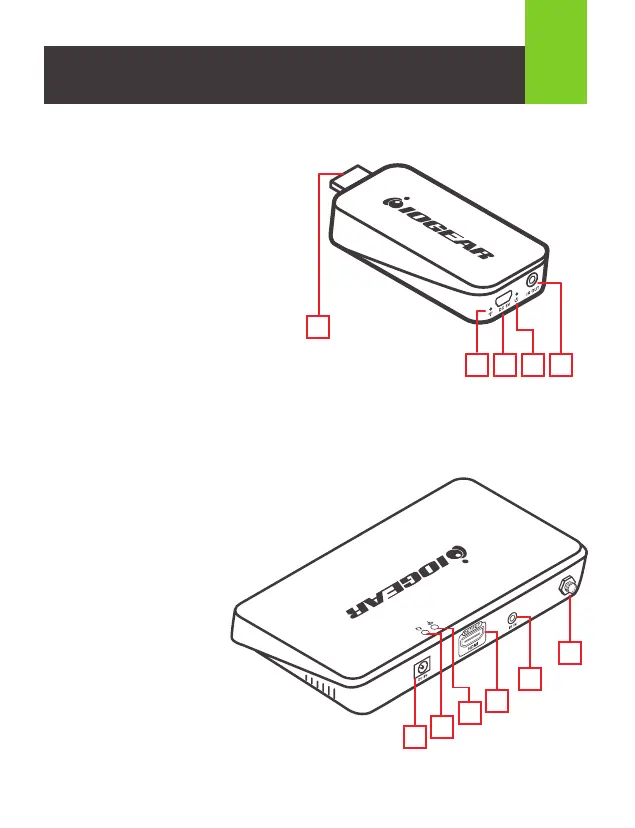

Overview
3
F. Power input
G. Power indicator
H. Wireless connection indicator
I. HDMI output connector
J. IR receiver extender
cable connector
K. Antenna connector
A. HDMI input
B. Wireless connection indicator
C. Power input
D. Power indicator
E. IR blaster cable connector
Receiver Back
Transmitter
A
B C D E
F
I
J
G
H
K
