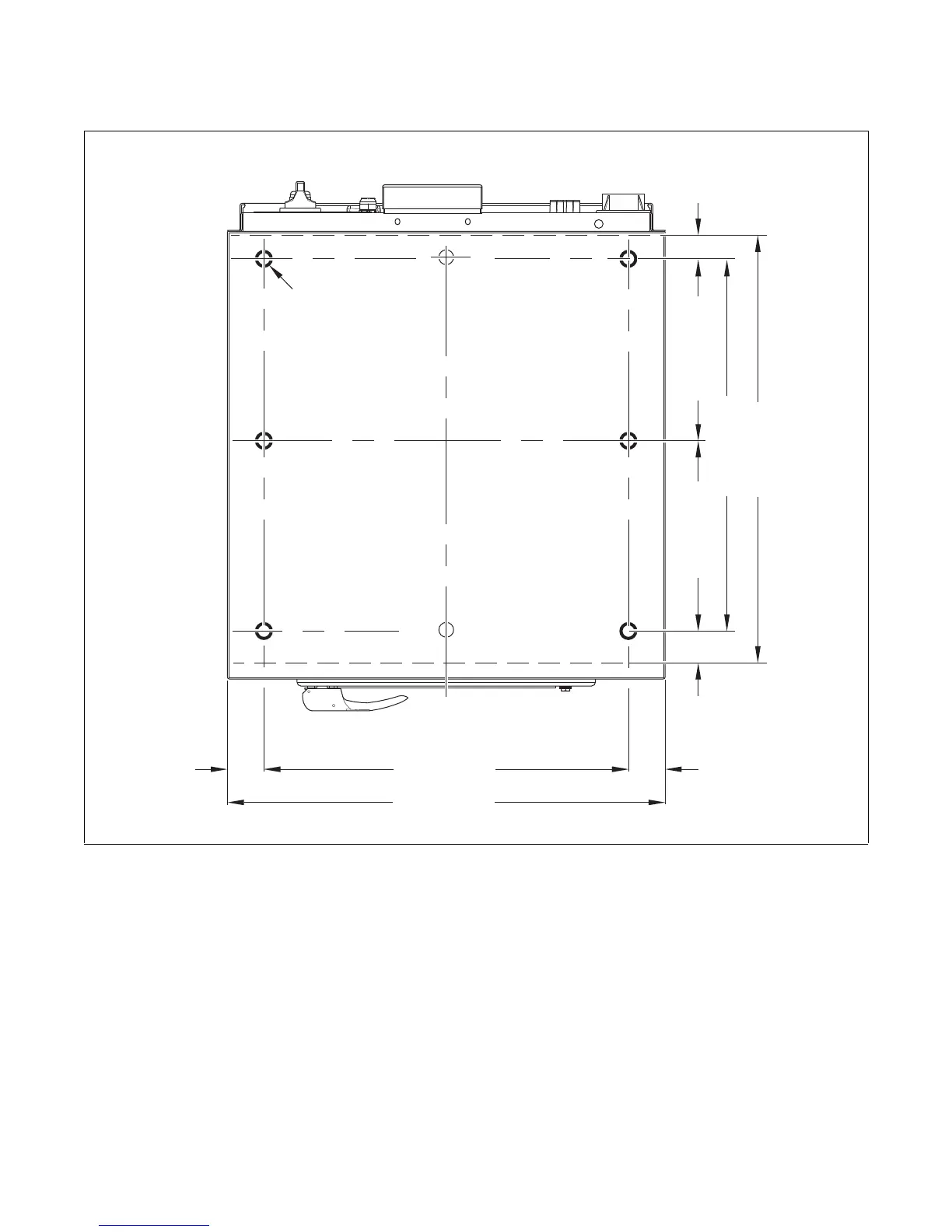

Mounting Bolt Hole Locations - Model IWF018 (2-speed)
CHM2105N
Figure 5
2.17 in.
(55 mm)
21.65 in. (550 mm)
10.75 in. (273 mm)
1.46 in.
(37 mm)
22.05 in. (560 mm)
25.4 in. (645 mm)
11.3 in. (287 mm)
2.17 in.
(55 mm)
25.98 in. (660 mm)
ø0.87 in.
(ø22 mm)
1.89 in.
(48 mm)
