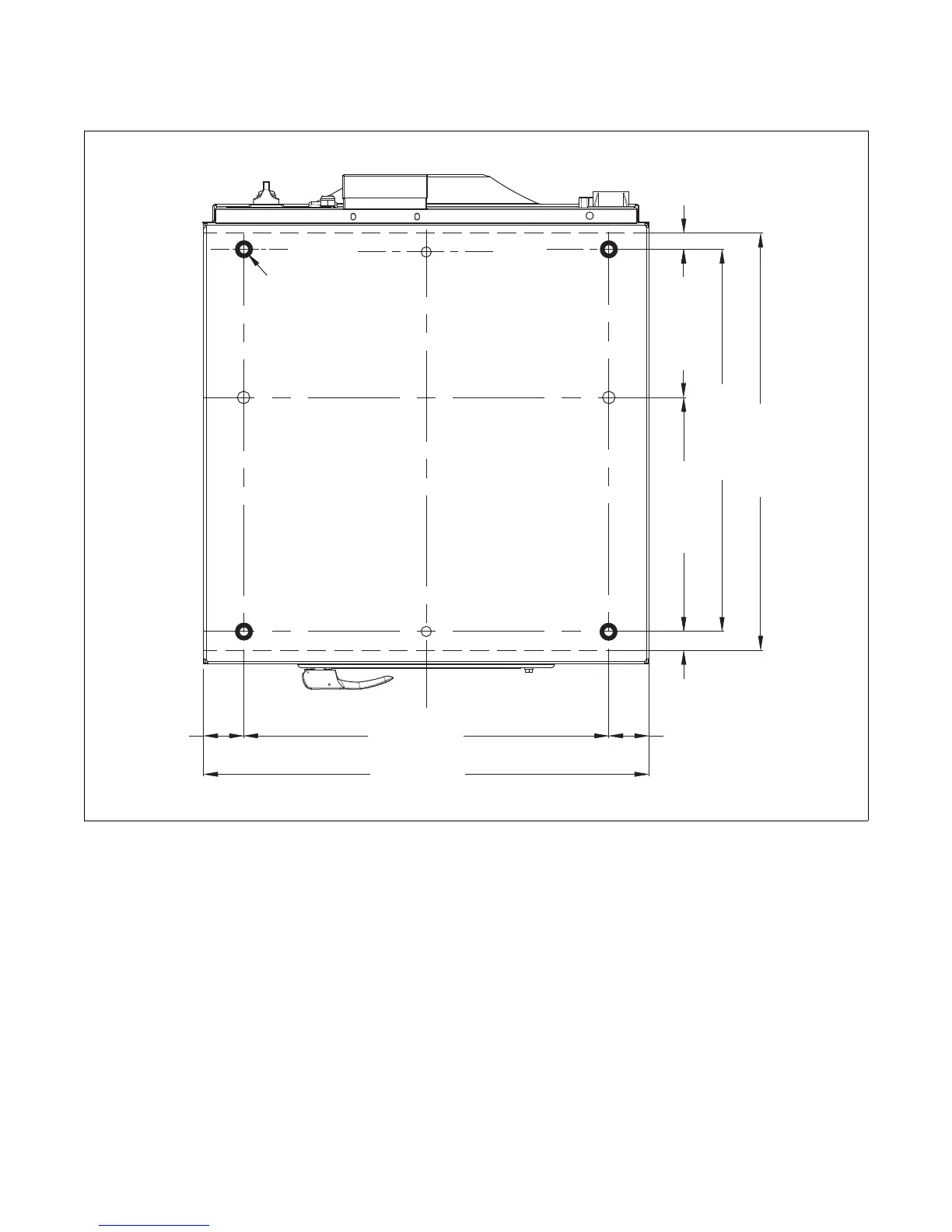

Mounting Bolt Hole Locations - Model IWF030 (2-speed)
CHM2159N
Figure 9
2.76 in.
(70 mm)
25.2 in. (640 mm)
10.24 in. (260 mm)
1.1 in.
(28 mm)
26.38 in. (670 mm)
28.78 in. (731 mm)
16.14 in. (410 mm)
2.76 in.
(70 mm)
30.71 in. (780 mm)
ø0.87 in.
(ø22 mm)
1.3 in.
(33 mm)
