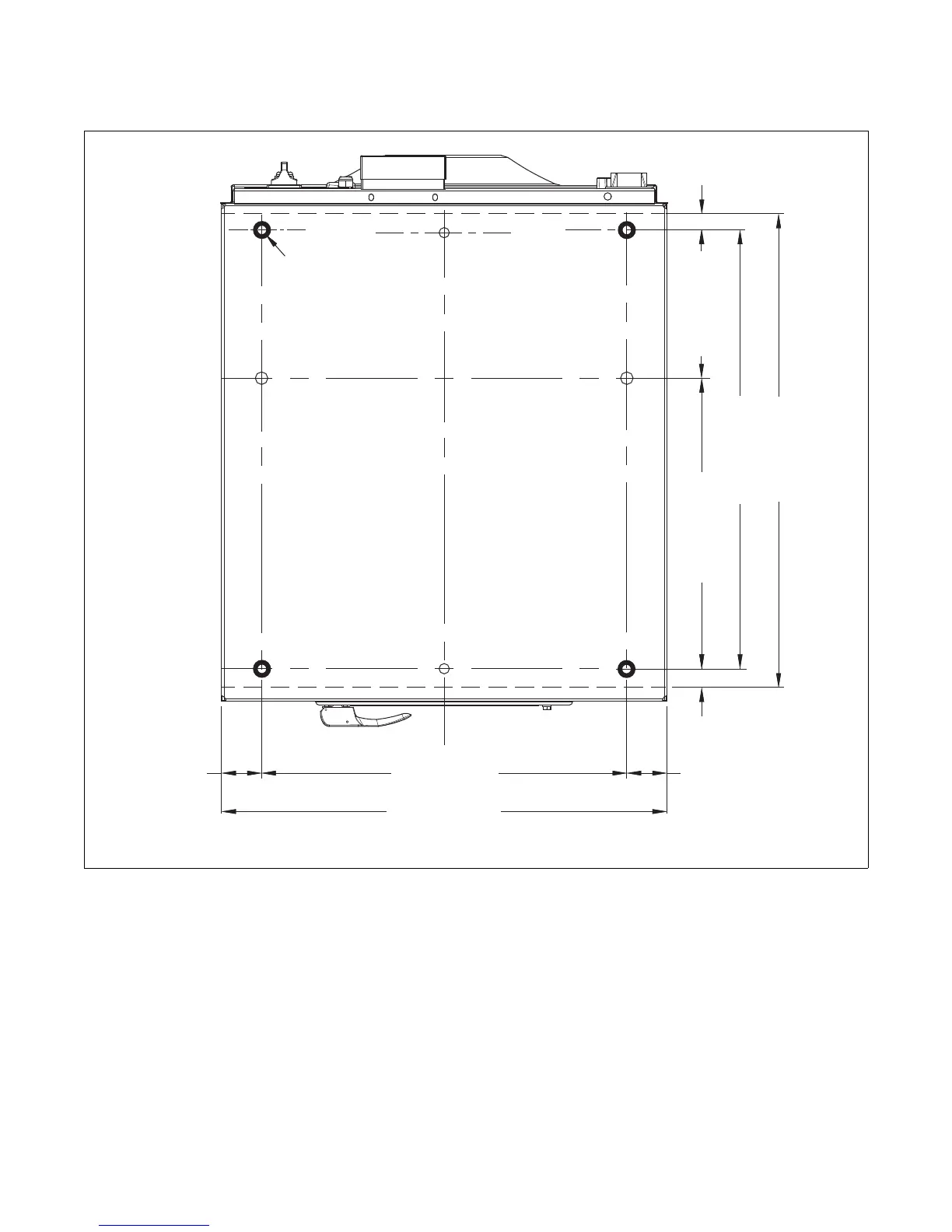

Mounting Bolt Hole Locations - Model IWF040 (2-speed)
CHM2161N
Figure 16
CHM2161N
2.76 in.
(70 mm)
25.2 in. (640 mm)
10.24 in. (260 mm)
1.3 in.
(33 mm)
30.31 in. (770 mm)
32.72 in. (831 mm)
20.08 in. (510 mm)
2.76 in.
(70 mm)
30.71 in. (780 mm)
ø0.87 in.
(ø22 mm)
1.1 in.
(28 mm)
