Washer-Extractors
38
5-08-51

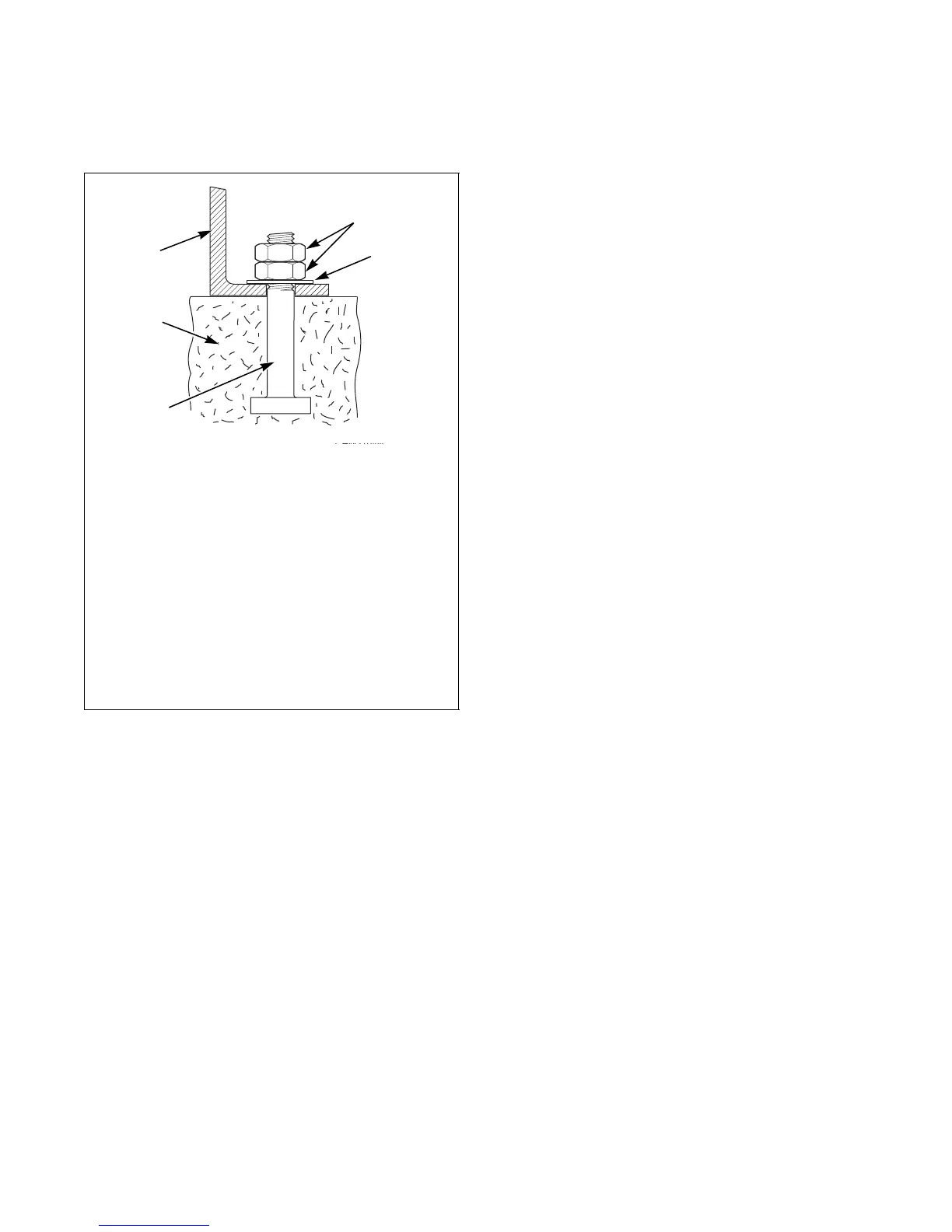

Anchoring to Concrete Base
The machine must be anchored directly to concrete
base. Refer to Figure 23.
Figure 23
IMPORTANT: Machine bolt should be re-checked
on a quarterly basis.
CHM2104N
1 Nut
.625 in. (M16)
2 Washer
1.57 in. x 0.60 in. x 0.15 in.
(40 mm x 17 mm x 4 mm)
3 Bolt
.625 in. (M16)
4 Concrete Base
15.74 in. (400 mm) (Models IWF033 and
IWF040), and 21.65 in. (550 mm)
(Model IWF055), and 27.55 in. (700 mm)
(Model IWF075)
5 Machine Base
