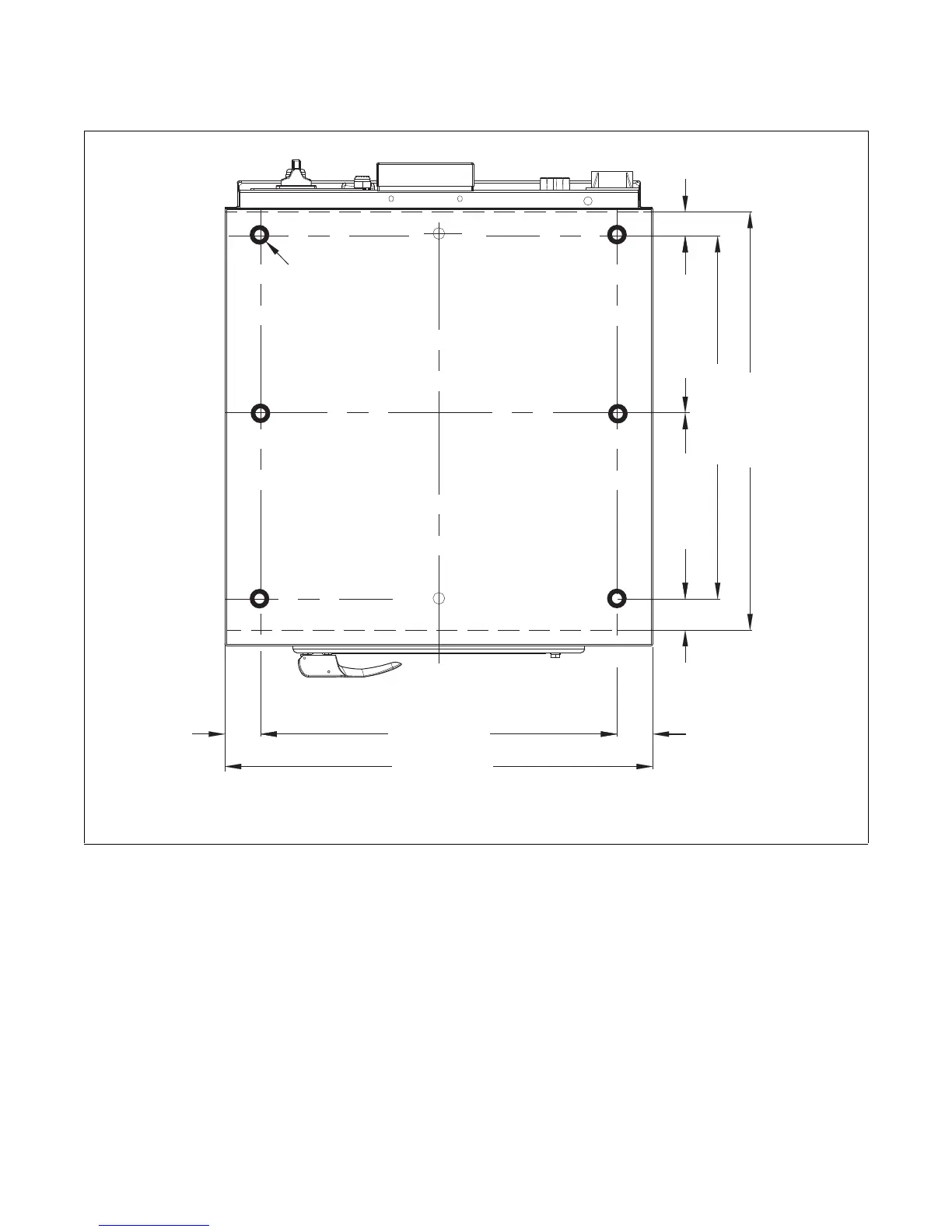

Mounting Bolt Hole Locations - Model IWF018 (M-speed)
CHM2164N
Figure 27
CHM2164N
2.17 in.
(55 mm)
21.65 in. (550 mm)
10.75 in. (273 mm)
1.46 in.
(37 mm)
22.05 in. (560 mm)
25.4 in. (645 mm)
11.3 in. (287 mm)
2.17 in.
(55 mm)
25.98 in. (660 mm)
ø0.87 in.
(ø22 mm)
1.89 in.
(48 mm)
