Directly to Concrete Base
The machine must be anchored directly to concrete

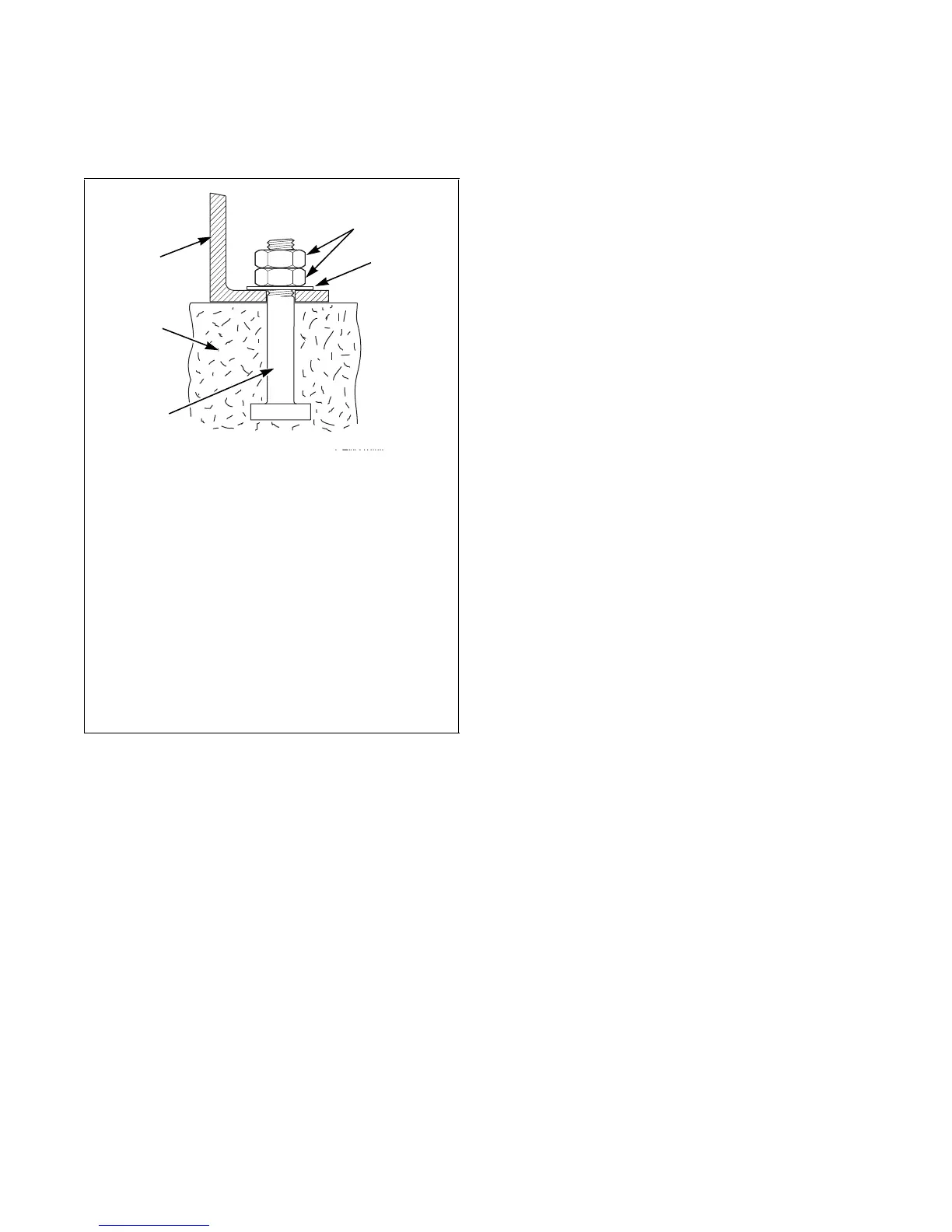

base. Refer to Figure 12.
Figure 34
IMPORTANT: Machine bolts should be re-checked
on a quarterly basis.
CHM2104N
1 Nut
.5 in. (M12) (Models IWF014, IWF018 and
IWF025), and .625 (M16) (Model IWF030)
2 Washer
1.57 in. x 0.60 in. x 0.15 in.
(40 mm x 17 mm x 4 mm)
3 Bolt
.5 in. (M12) (Models IWF014, IWF018 and
IWF025), and .625 (M16) (IWF030)
4 Concrete Base
9.48 in. (250 mm) (Models IWF014, IWF018
and IWF025), and 13.77 in. (350 mm) (Model
IWF030)
5 Machine Base
