Washer-Extractors
5-08-51
59

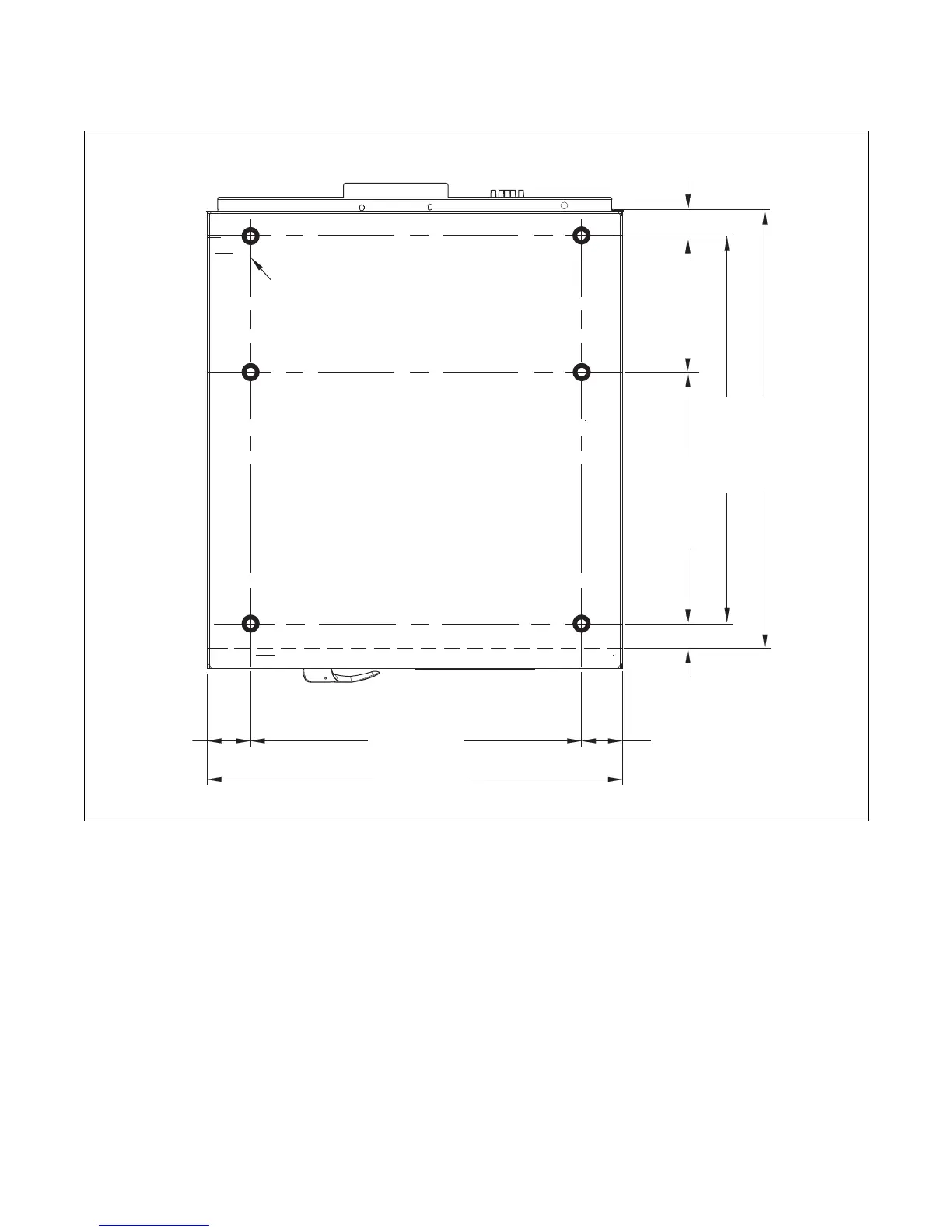

Mounting Bolt Hole Locations - Model IWF033 (M-speed)
CHM2168N
Figure 36
2.76 in.
(70 mm)
25.2 in. (640 mm)
10.24 in. (260 mm)
1.1 in.
(28 mm)
26.38 in. (670 mm)
28.78 in. (731 mm)
16.14 in. (410 mm)
2.76 in.
(70 mm)
30.71 in. (780 mm)
ø0.87 in.
(
ø22 mm)
1.3 in.
(33 mm)
