Iqua U60 - System Overview and Parts; Exploded View and Parts List; Sensor Range Adjustment

6 74.033.EU3

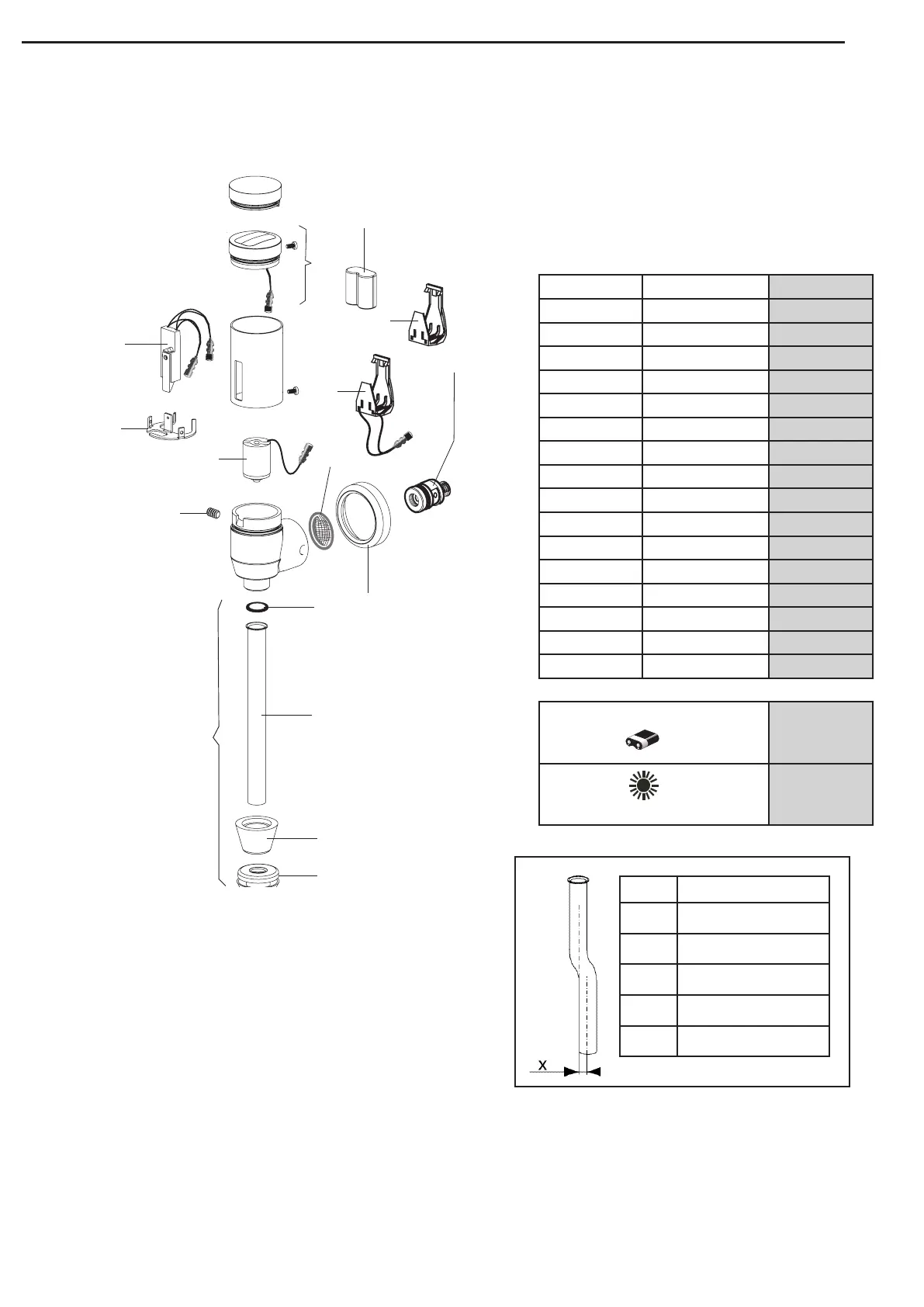

• Systemübersicht • System overview
• Vista generale del sistema • Résumé du système
A6
22
D
27
2
19
26
3
12
C1 / C2
1
11
24
25
23
28
X
1 cm 550 011 11
2 cm 550 012 11
3 cm 550 013 11
4 cm 550 014 11
5 cm 550 015 11
D 392.006.11 B, S
A6 396.004.00 B, S
B1 397.259.00 B
B2 397.260.00 S
1 397.261.00 B
2 550.000.04 B, S
3 397.020.11 S
11 397.262.00 B, S
12 392.004.00 B, S
19 390.020.00 B, S
22 390.025.00 B, S
23 392.008.11 B, S
24 392.009.11 B, S
25 392.010.11 B, S
26 392.011.11 B, S
27 392.012.00 B, S
28 396.008.00 S
B
SOLAR
S
