Page 3 of 17

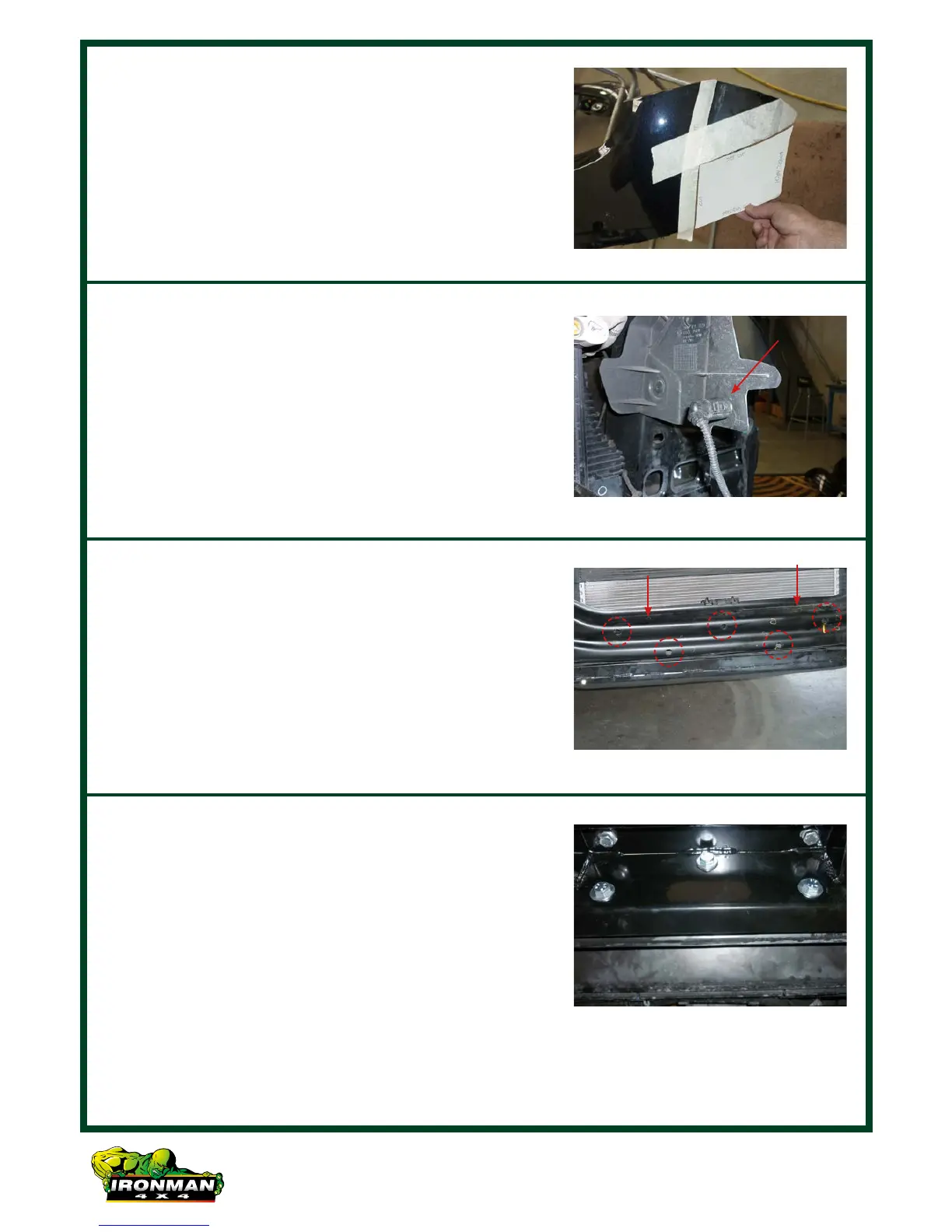

7. Place bumper cutting templates onto the ends of
the bumper, mark and remove sections as shown.
Note: Cutting templates can be found of the last
pages of the fitting manual.
8. Remove ambient air temperature sensor and fit to
plastic panel as shown.
9. Place chassis bracket in position on chassis and
mark location of all mounting holes onto front
cross member. Remove chassis bracket and drill
all holes to 12.5mm.
7 x Holes will need to be drilled to 12.5mm in front cross member
10. Refit chassis bracket and secure in place using
M12 hardware provided.
