GSM router iRZ RUH

(HSUPA/HSDPA/UMTS/EDGE/GPRS) 3G

User manual

2.6.4. Ethernet network connector

Ethernet 10/100 Mbitps. Connection of a single computer or an entire network of devices for

data collection and control.

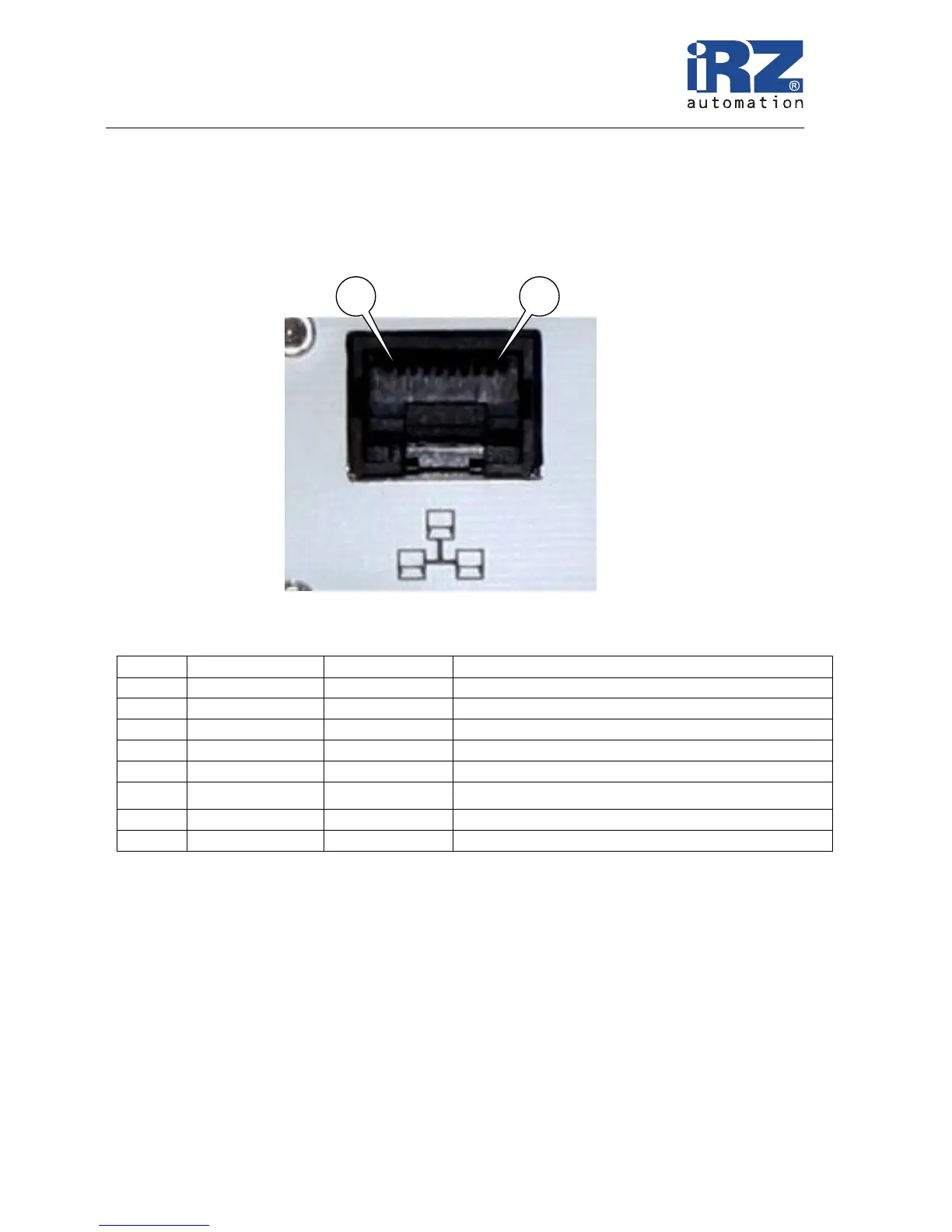

Fig. 2.6.4 Ethernet connector

Table 2.6.4 Ethernet connector pin functions

Pin Signal Direction Function

1 ETX P Router - PC Transmission, positive pole

2 ETX N Router - PC Transmission, negative pole

3 ERX P PC - Router Receiving, positive pole

4 not used -

5 not used -

6 ERX N PC - Router Receiving, negative pole

7 not used -

8 not used -
