USE AND MAINTENANCE MANUAL ICE CREAM CABINETS
428000668
037

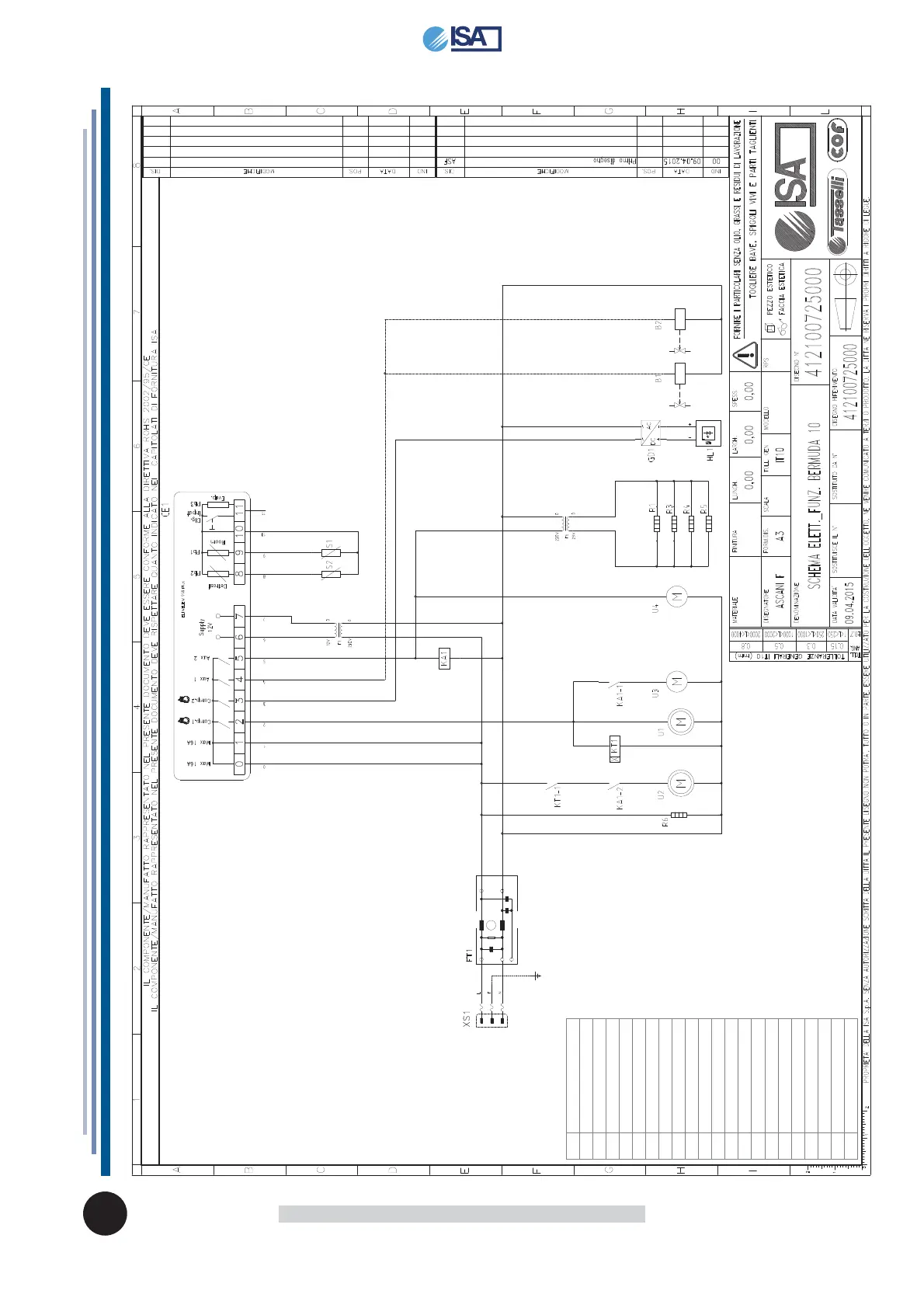

Attachment 2 - WIRING DIAGRAM - 412100725000
B1 Solenoid valve 1
B2 Solenoid valve 2
CE1 Electronic control board
FT1 EMC fi lter
GD1 Power LED
HL1 LED lighting
KA1 Compressor 1 relay
KT1 Compressor 2 relay
R1 Perimetral trim heater
R3 Frontal glass trim heater
R4 Side glass 1 trim heater
R5 Side glass 2 trim heater
R6 Storage trim heater
S1 Temperature sensor
S2 Evaporator defrosting sensor
T1 Transformer
T6 Transformer
U1 Compressor 1
U2 Compressor 2
U3 Condenser fan
U4 Evaporator fan
XS1 Power supply cable
