3. Attach Adjustable Bar to Motor Housings

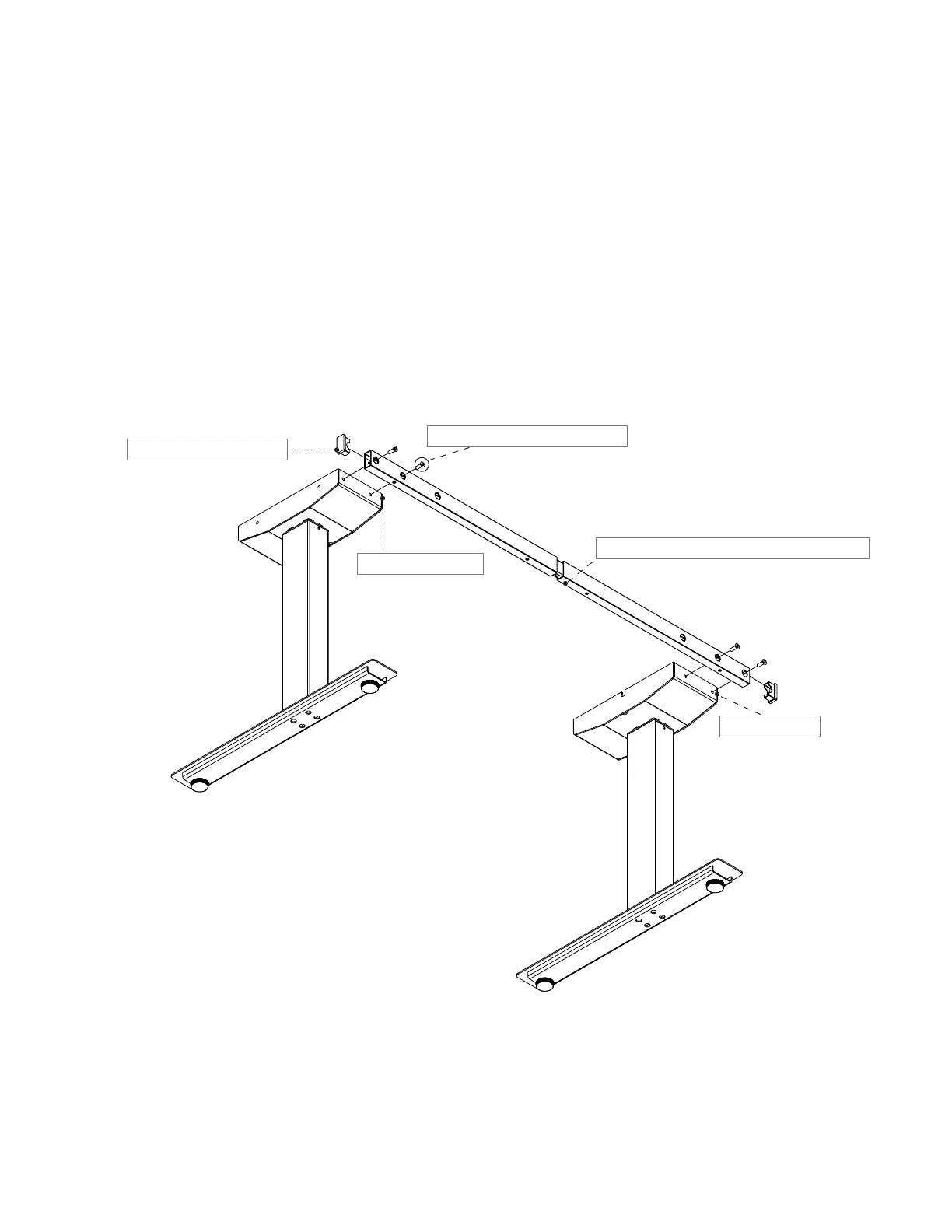

Figure 3. Attach Adjustable Bar to Motor Housings
Facing the rear of the Height Adjustable Leg Assemblies, use an M5 Hexagonal Wrench to fasten the
Adjustable Bar with the 4 Silver M8x25mm Countersunk bolts onto the rear of the Motor Housings.
Make sure to use the 2 outer holes on each end of the Adjustable Bar.
The 4 Center Bolts of the Adjustable Bar should be facing forward towards the Motor Housings.
After fastening the Adjustable Bar, install the 2 Rectangular Plastic End-Caps on each end of the Adjustable
Bar. See Figure 3.
Rectangular Plastic End-Caps
Rear of Motor Housing
Adjustable Bar with 4 Center Bolts facing forwards
Silver M8 x 25mm Countersunk Bolts
Use Outer 2 holes
Note: For worksurfaces less than 48”, attach crossbars to front and back of Motor Housing.
