Connections
Check the voltage marked on the back of the unit matches your mains
supply. Locate the unit as close to a wall outlet as possible. We
recommend using high quality power cables to make the connections to
and from your MiniSub.
ISOL-8 IsoLink cables are designed specifically to complement the
MiniSub and are ideal for this purpose.
Cables using woven, unscreened construction may interact with the
on board filters and degrade performance.
Avoid adapters and extension cables and keep overall cable lengths as
short as is practical for best results.
The MiniSub has dedicated, high performance filters for each connected
equipment type. Make sure you connect each system component to the
appropriate labelled outlet:
High power outlet
Fused IEC power input connector
Earth binding post
Low/medium power outlet
4
3
2
1

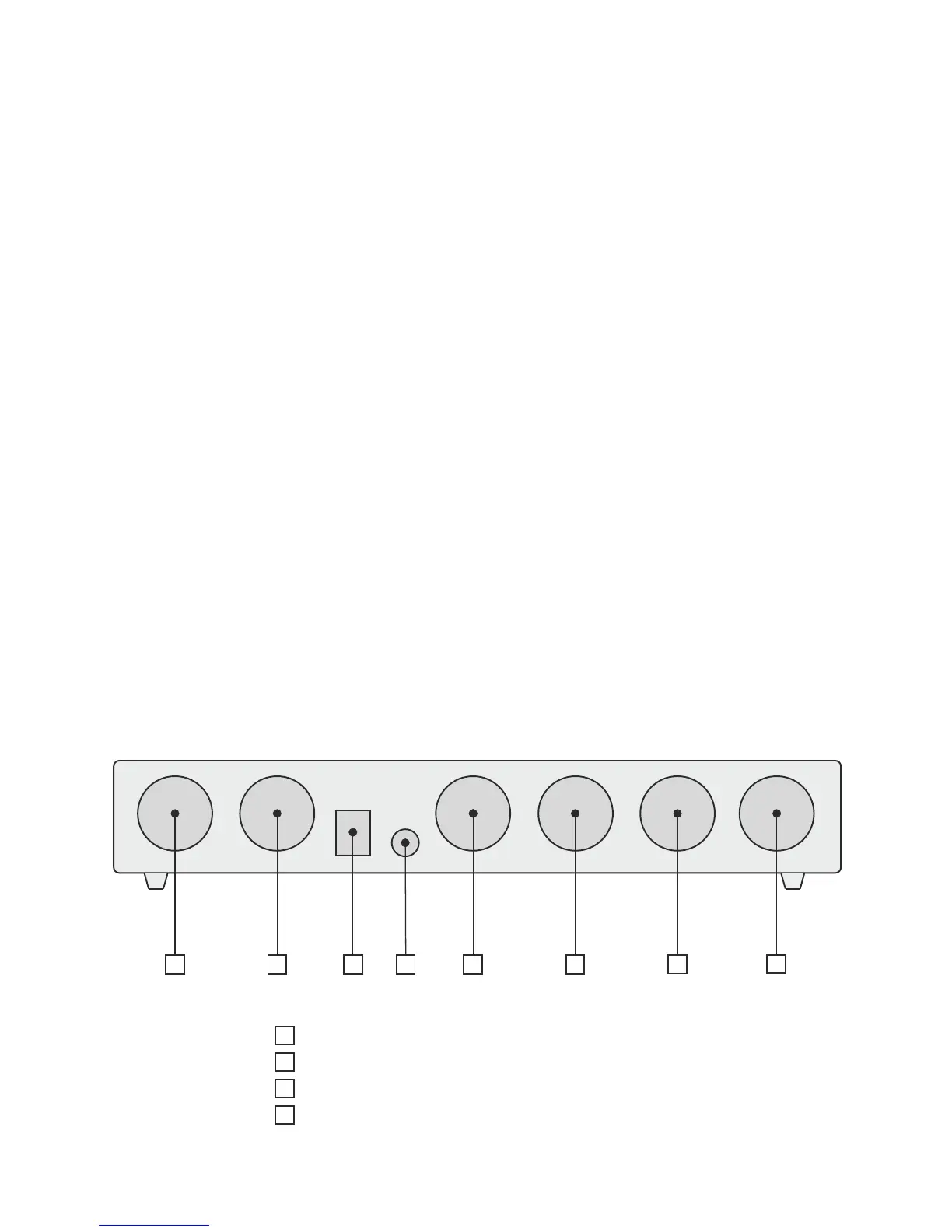

Rear Panel View
