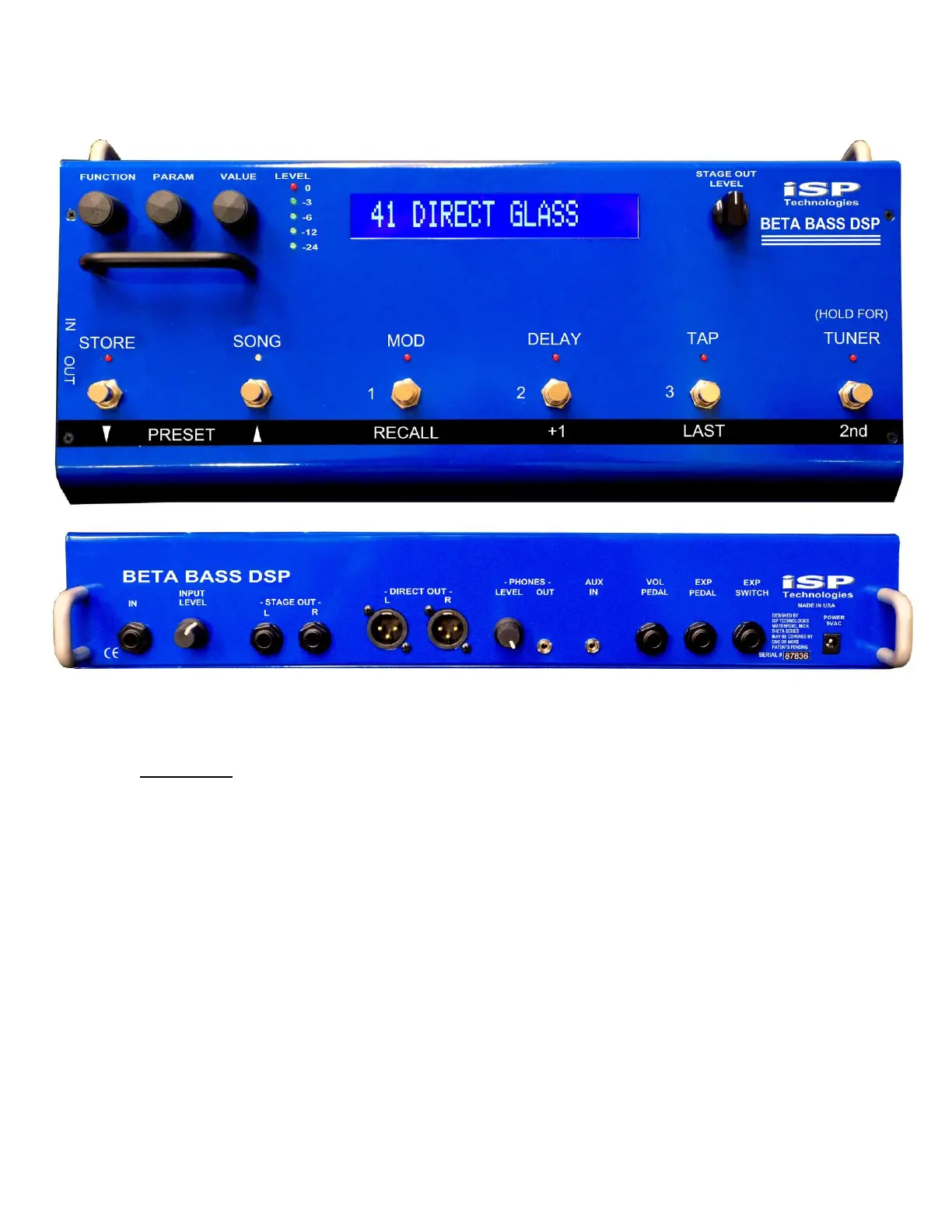

FIGURE 1
BETA DSP v1 Instruction Manual
Quick Start
Refer to Figure 1 for the hardware drawing which shows the locations of the
switches, knobs, and jacks when reading the following, or even better, just look
at your unit.
1. Connect the bass to the IN jack, connect the STAGE OUT jack(s) to a
power amp such as the iSP Stealth which is connected to a speaker
cabinet, OR connect the DIRECT OUT jacks to the input of a mixer, OR
connect the PHONES jack to headphones or earbuds (or connect all
three). If you have a mono system, you can set the output(s) to mono in
the global parameters. The STAGE OUT jacks can be connected to a
conventional bass amplifier, but this will not yield optimum results, since
most bass amps will further shape the sound. You can connect an audio
source such as your phone to the AUX IN jack, then play along with tracks
while listening via the PHONES OUT or DIRECT OUTs.
