Product Quick Guide:
Hardware Guide
D-200-T
1. Aluminum Bezel
(3 color Options: Red, Blue, Silver)
2. Power LED
3. Alarm reset
4. HDD LED
5. Temp Sensor 1 LED (TC-ISF08 require)
6. Fan LED (TC-ISF08 require)
7. Temp Sensor 2 LED (TC-ISF08 require)
8. Handle
9. 5.25” Bay X2
11. Key lock
12. USB 2.0
13. Reset button
14. Power button
15. 3.5” Bay X1
16. Ear Mount
18. For 2U Power Supply
17. Expansion slot
20. Cross bar/ Fan bar
19. For ATX, micro-ATX MB
21. 1x 80mm Fan
22. For Optional Sensor Board TC-ISF08
23. Removable Air Filter

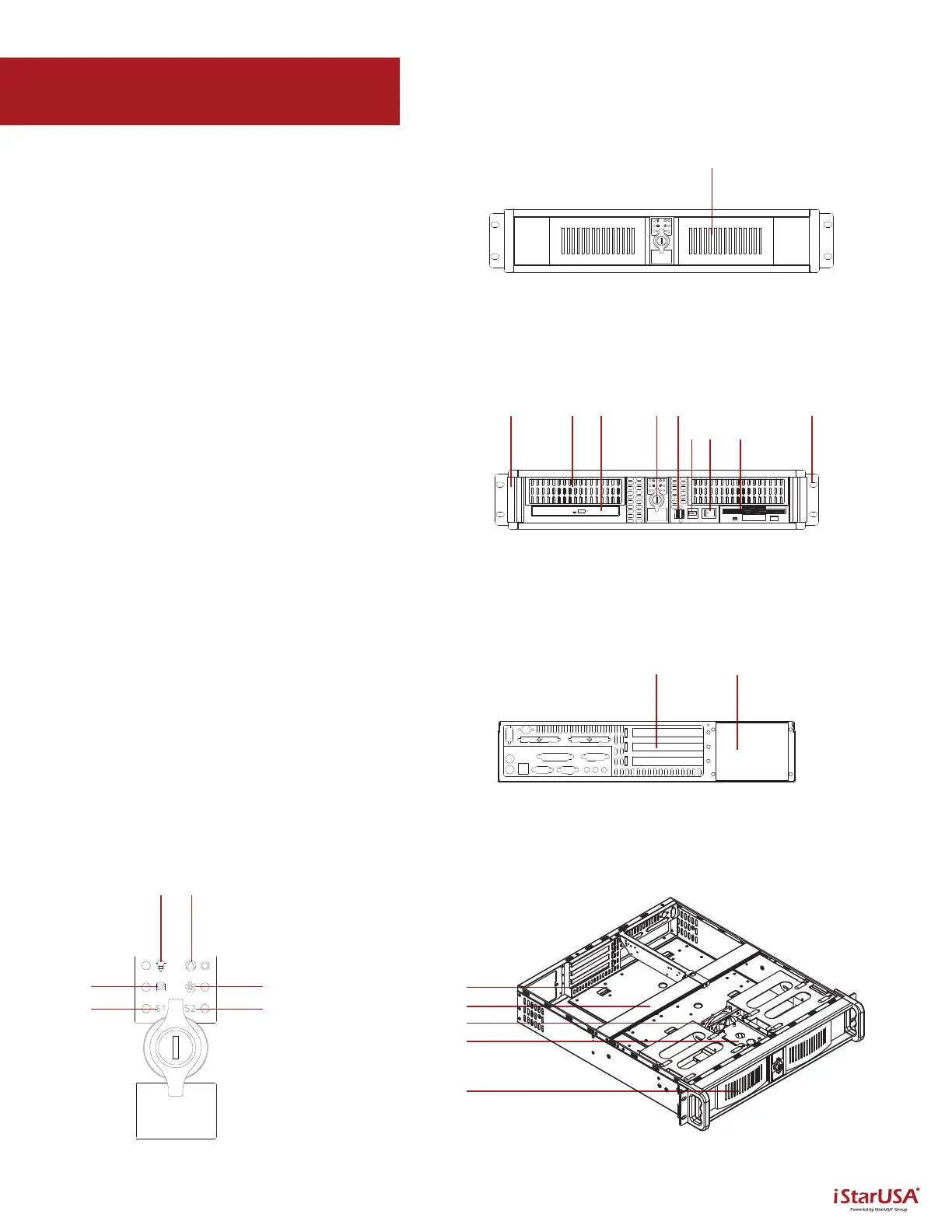

Front View
Front Open View
1
2
3
Rear View
Top View
17
18
19
4 6
5 7
20
21
22
23
8 9
13
14 15
11 161210
10. Slim 5.25” Optical X1
