ENGINE ASSEMBLY ( 3 )

89

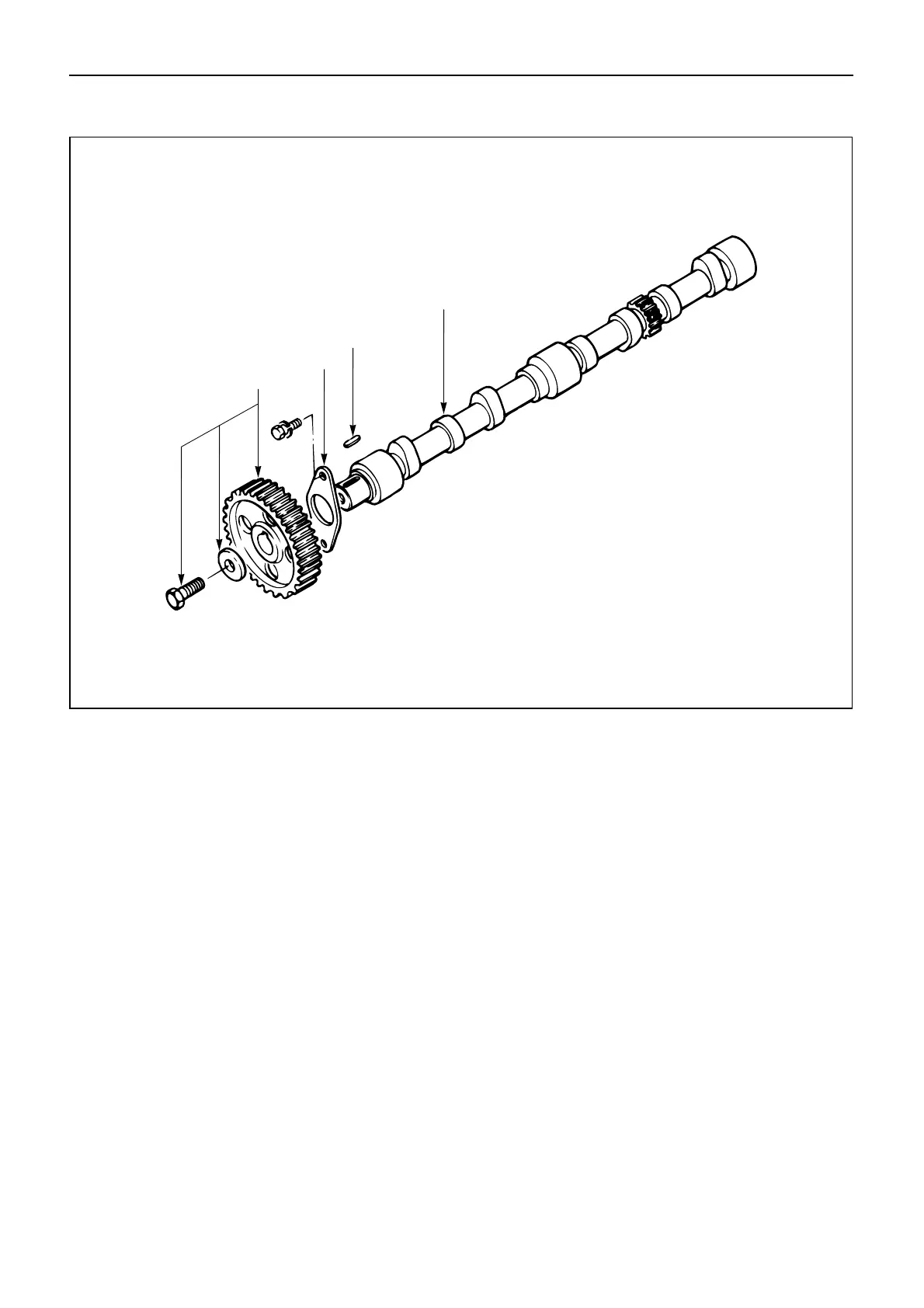

CAMSHAFT, CAMSHAFT TIMING GEAR, AND THRUST PLATE

Reassembly Steps

1. Camshaft

2. Feather key

3. Thrust plate

▲ 4. Camshaft timing gear

4

3

2

1
