Isuzu C-240PW-28 - Cam Height; Camshaft Journal Diameter; Check Camshaft Run-Out

ARMY TM 9-2818-254-24
AIR FORCE TO 38G1-94-2

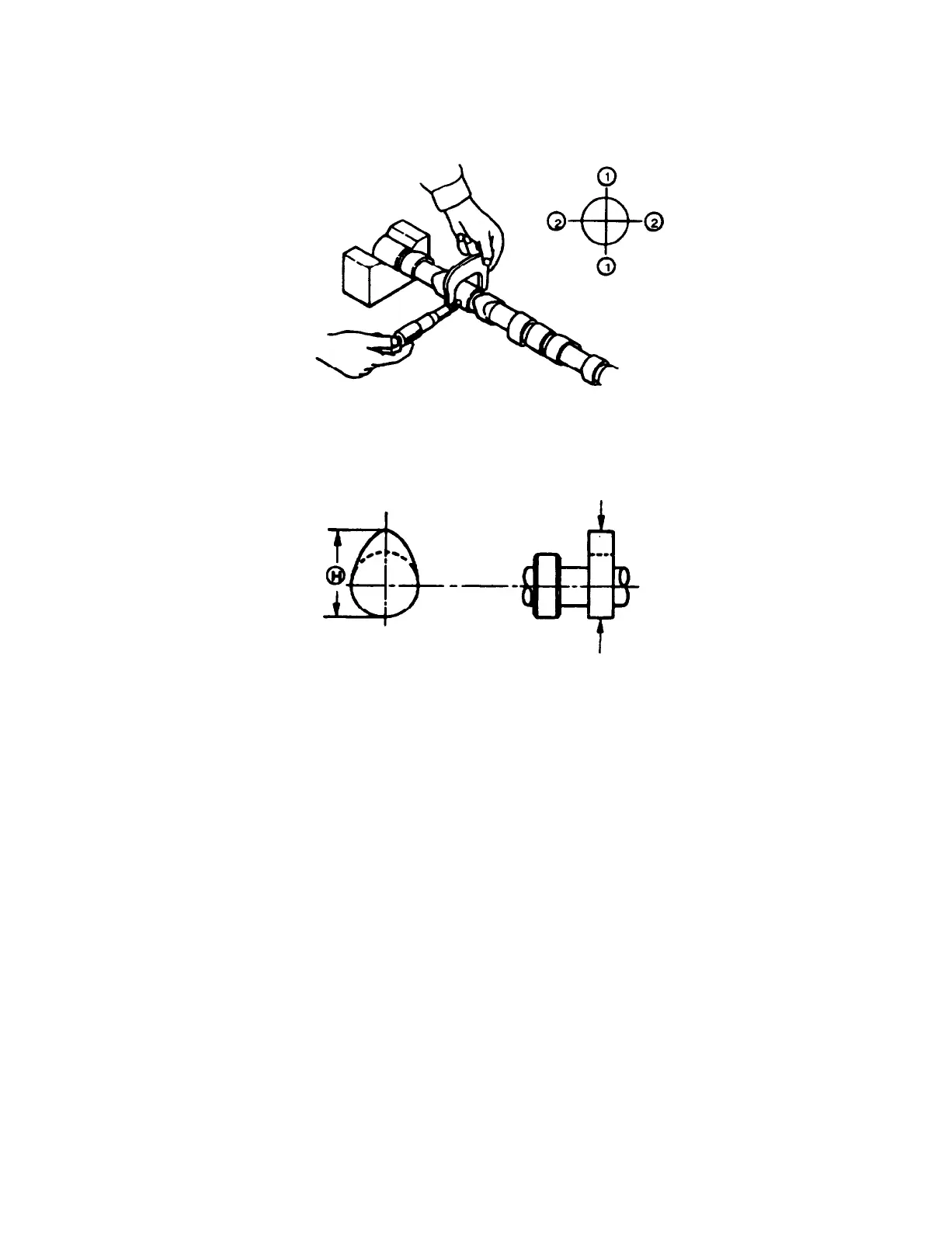

FIGURE 3-104. Camshaft Journal Diameter
c. Standard cam height is 1.60 in. (40.57 mm). Using a micrometer, measure cam height, refer to FIGURE
3-105. If cam height is less than limit of 1.58 in. (40.2 mm), replace camshaft.
FIGURE 3-105. Cam Height
d. Check camshaft run-out as follows:
(1) Place
camshaft on V-blocks.
(2) Measure run-out with a dial indicator, refer to FIGURE 3-106.
(3)
Standard run-out is 0.002 in. (0.05 mm). If runout exceeds limit of 0.004 in. (0.10 mm), replace camshaft.
3-155
