CONTROLS AND INSTRUMENTS
Pintle Hook
V
CAUTION
Firmly set the trailer parking brake and block the trailer tires with chocks on a
level ground before coupling and decoupling the trailer.
•
NOTE
Refer to the trailer manufacturer's Instruction Manual for detailed trailer handling
instructions.
•
Full-trailer Tractor

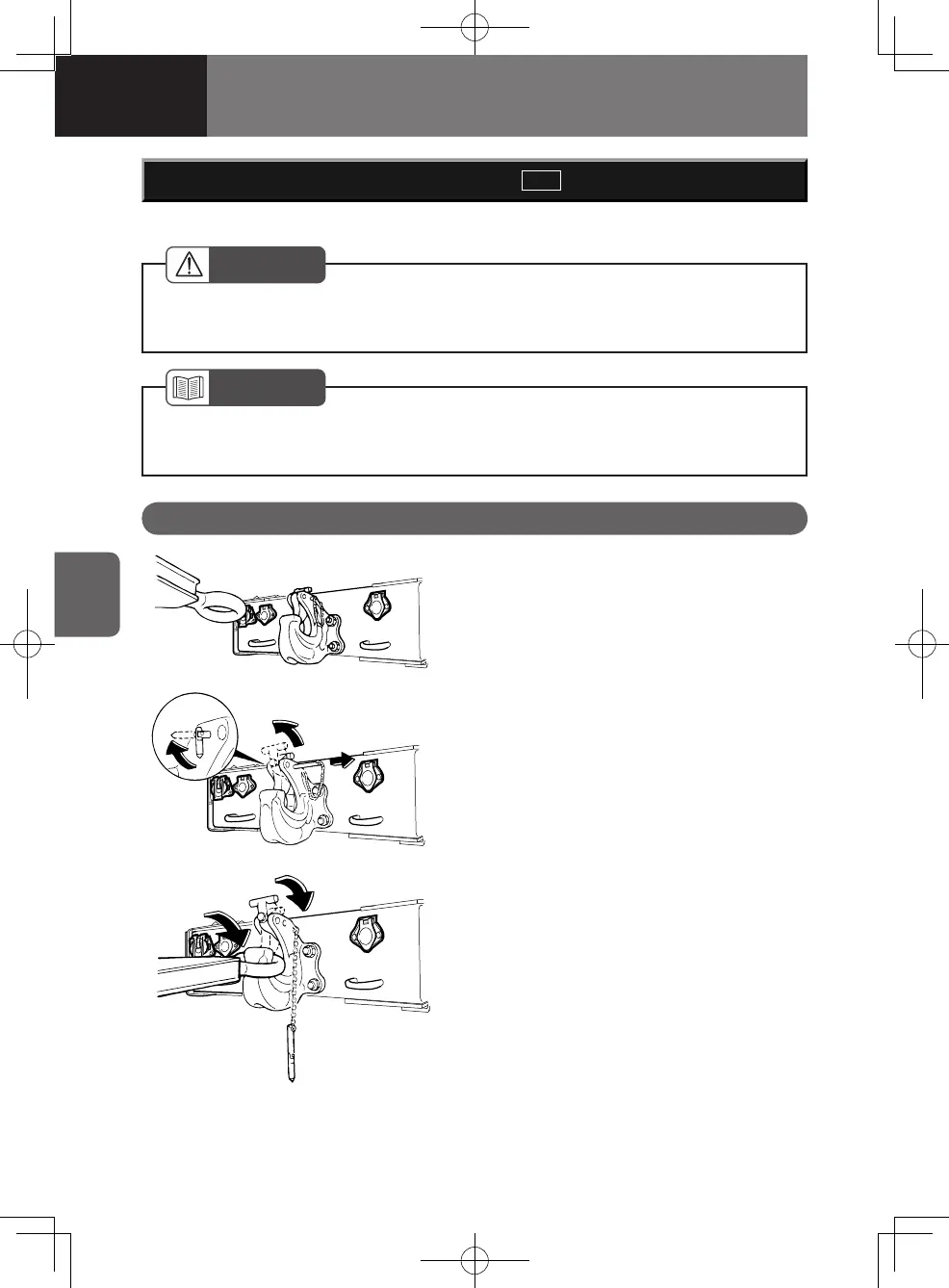

1. Make sure that the tractor and the
dolly are parallel and adjust the
lunette eye on the trailer to the height
of the pintle hook.
Coupling of Trailer
2. Pull out the pintle hook lock pin.
3. Reverse the tractor to couple its pintle
hook onto the lunette eye.
Insert the pintle hook lock pin.
