COMFORT AND CONVENIENCE

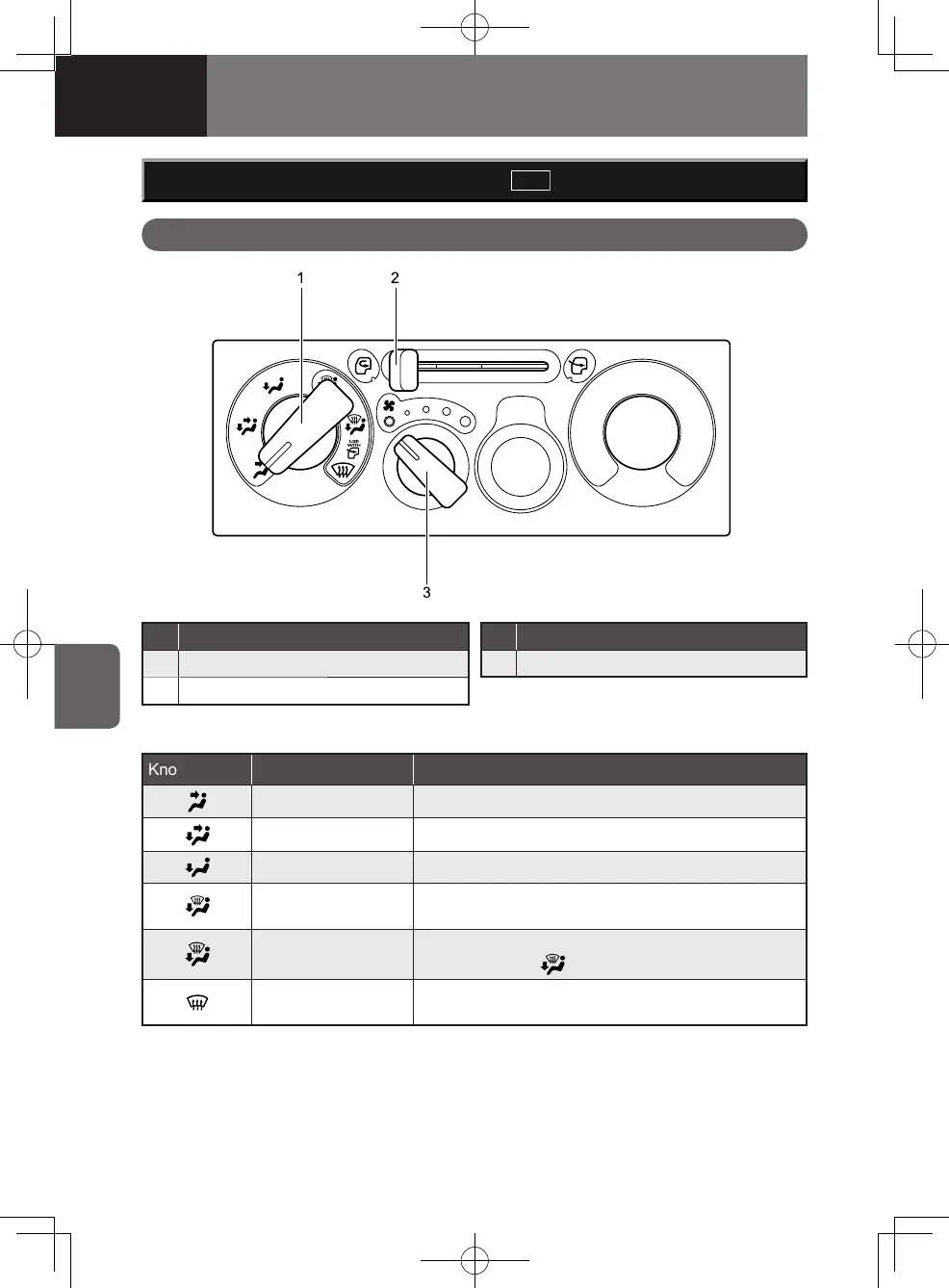

How to Use the Controls
Ventilator
V
1. Outlet selector knob
1 2
3
Knob position Air delivery Outlet
Face Air flows through outlets 1 and 2.
Bi-level Air flows through outlets 1, 2 and 5.
Feet Air flows through outlets 5.
Feet, door windows
and windshield
Air flows through outlets 5 and some through outlets
3 and 4.
Feet, door windows
and windshield
Air flows through outlets 5 and air of greater volume
than in position "
" flows through outlets 3 and 4.
Door windows and
windshield
Air flows through outlets 3 and 4.
No. Name
1 Outlet selector knob
2 Air source lever
No. Name
3 Fan speed control knob
