STARTING AND STOPPING THE ENGINE
FROM AN ANALOG INSTRUMENT PANEL
Startup procedure from IVECO MOTORS main
panel (provided upon request)
Make sure that the electric switch with ENGINE ROOM - BRIDGE label
on the Relay box unit, (usually located in the engine room) is turned to
BRIDGE, then proceed as follows:
1. Lift the key switch safety cover (8), insert the key and turn it to the
right, to 8B position.
2. Check that the analog instruments provide acceptable reading with
the values of the relevant physical parameters (temperature,
battery voltage and oil pressure).
3. Wait for the acoustic alarm to stop and that the alarm warnings (5)
on the signaling module are switched off (except for "alternator
anomaly" and "oil low pressure"). At the same time check that
testing of indicators is successful (see relevant section as regards
test reading and module indication instructions).
4. Turn the key to 8C position and realeas it without accelerating
when the engine has started.
5. Check that the analog instruments provide acceptable reading with
the new values of the relevant physical parameters (temperature,
battery voltage and oil pressure).
6. In case startup fails, you can resume startup position only after
releasing the key and after turning the switch 8A to the stop
position.

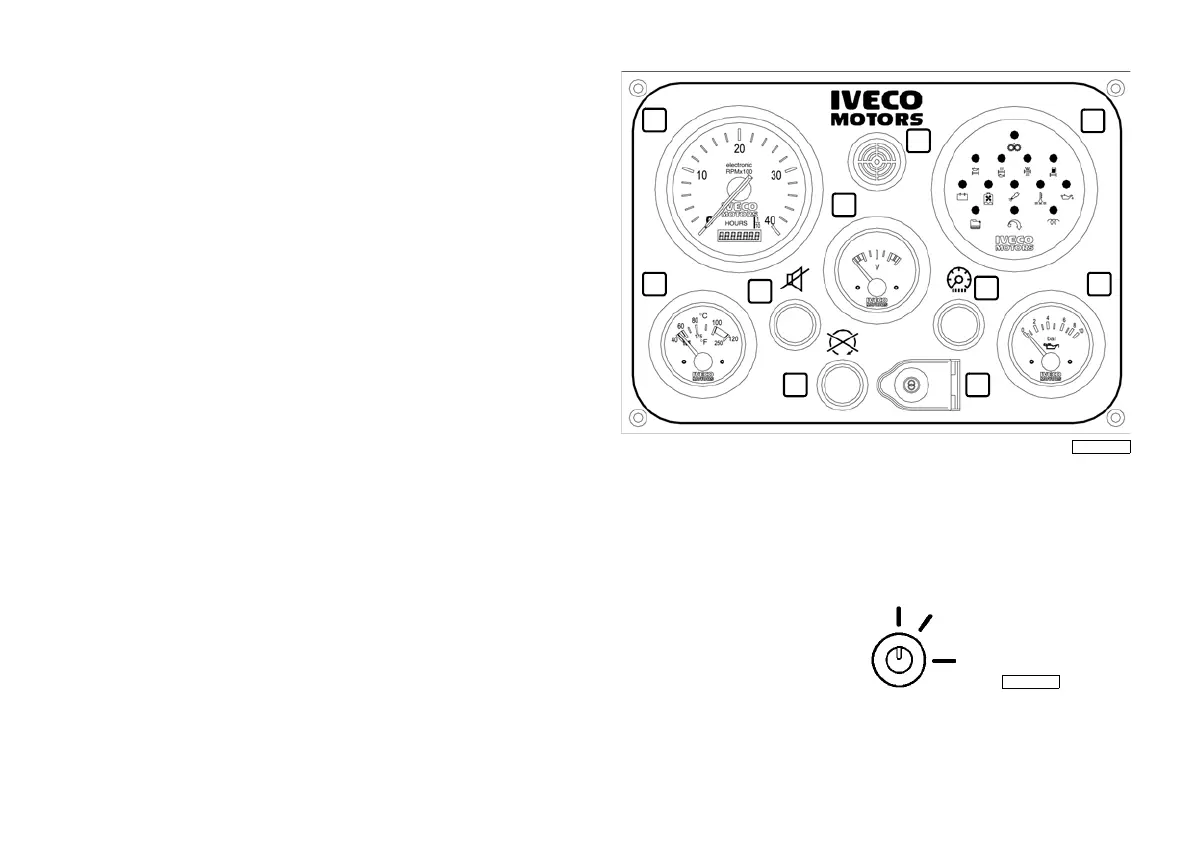

1. Coolant temperature indicator - 2. Tachometer and hour counter -
3. Voltmeter - 4. Horn - 5. Alarms and signaling module 6. Engine oil
pressure indicator - 7. Panel instruments light switch - 8. Key switch for
engine startup/stop - 9. Engine stop push button - 10. Horn silencing
push button.
1
2
3
4
5
6
7
89
10
04_354_N
8A
8B
8C
04_356_N
Switch key detail
