STARTING AND STOPPING THE ENGINE
FROM A DIGITAL INSTRUMENT PANEL
(C13 ENT M50 engine only)
Startup procedure from IVECO MOTORS main
panel (provided upon request)
Make sure that the electric switch with ENGINE ROOM - BRIDGE label
on the Relay box unit, (usually located in the engine room) is turned to
BRIDGE, then proceed as follows:
1. Lift the key switch safety cover (8), insert the key and turn it to the
right, to 8B position.
2. Check that the analog instruments provide acceptable reading with
the new values of the relevant physical parameters.
3. Wait for the acoustic alarm to stop and that the warning lights (5)
on the signaling module are switched off (except for "alternator
anomaly" and "oil low pressure"). At the same time check that
testing of indicators is successful (see relevant section
RECOGNIZING ALARM STATUSES).
4. Turn the key to 8C position and release it without accelerating
when the engine has started.
5. Check that the analog instruments provide acceptable reading with
the new values of the relevant physical parameters (temperature,
battery voltage and oil pressure).
6. In case startup fails, you can resume startup position only after
releasing the key and after turning the switch 8A to stop position.

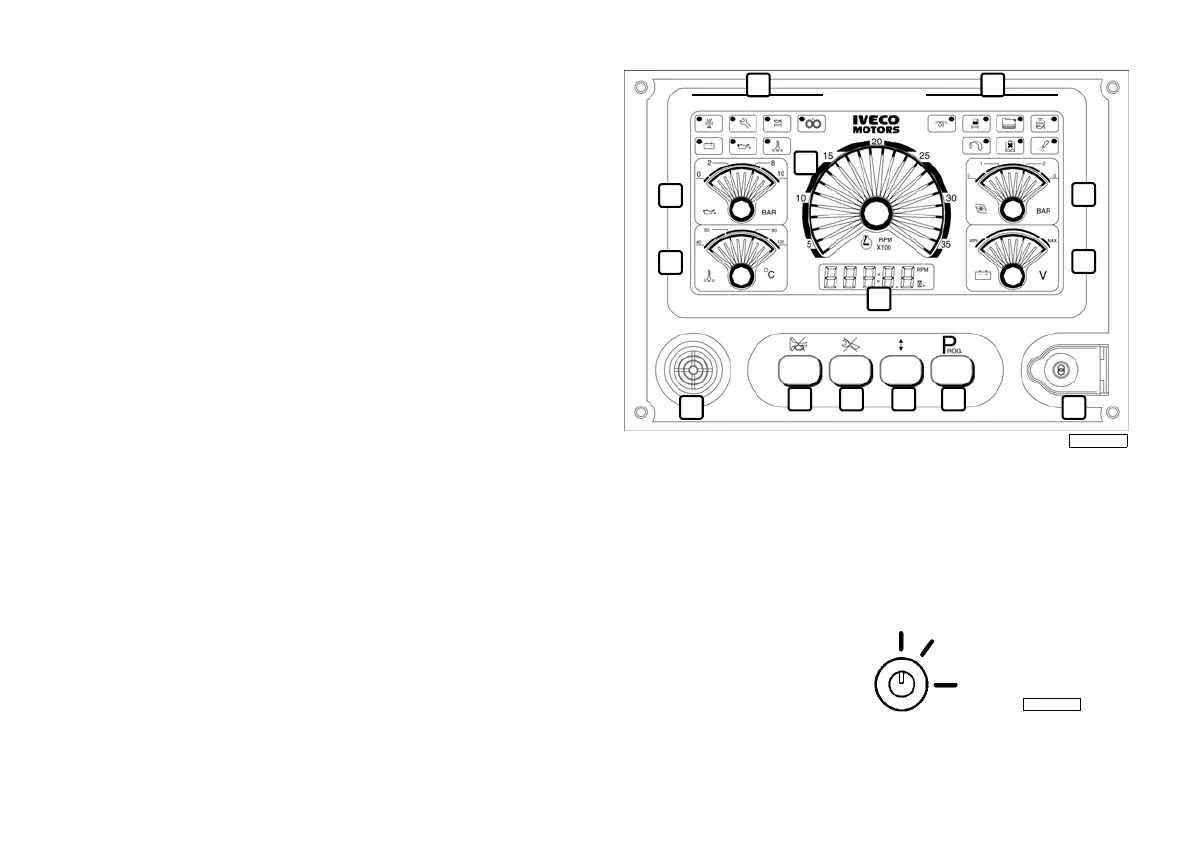

1. Engine coolant temperature indicator - 2. Lubrication circuit
pressure indication - 3. Service and alarm signals - 4. Revolution
counter - 5. Air booster pressure indicator - 6. Voltmeter - 7.
Alphanumeric display - 8. Engine start/stop key switch - 9. Accessory
functions programming key - 10. Additional information slide selection
key - 11. “Programmed maintenance” reset key - 12. Horn silencer -
13. Horn.
1
2
4
6
5
8
91112
13
3 3
10
7
04_357_N
8A
8B
8C
04_356_N
Switch key detail
