19
ENGLISH
ENGINE MANAGEMENT FROM RELAY BOX
(C13 ENT M50 engine only)
The engine fitting includes a "Box relay" unit which is usually located
near the engine room and which provides management of the
following functions:
 Start and stop.
 Control post selection: bridge or engine room.
 Revolution speed increasing and decreasing.
 Self-diagnosis test (only for Customer Service Network).

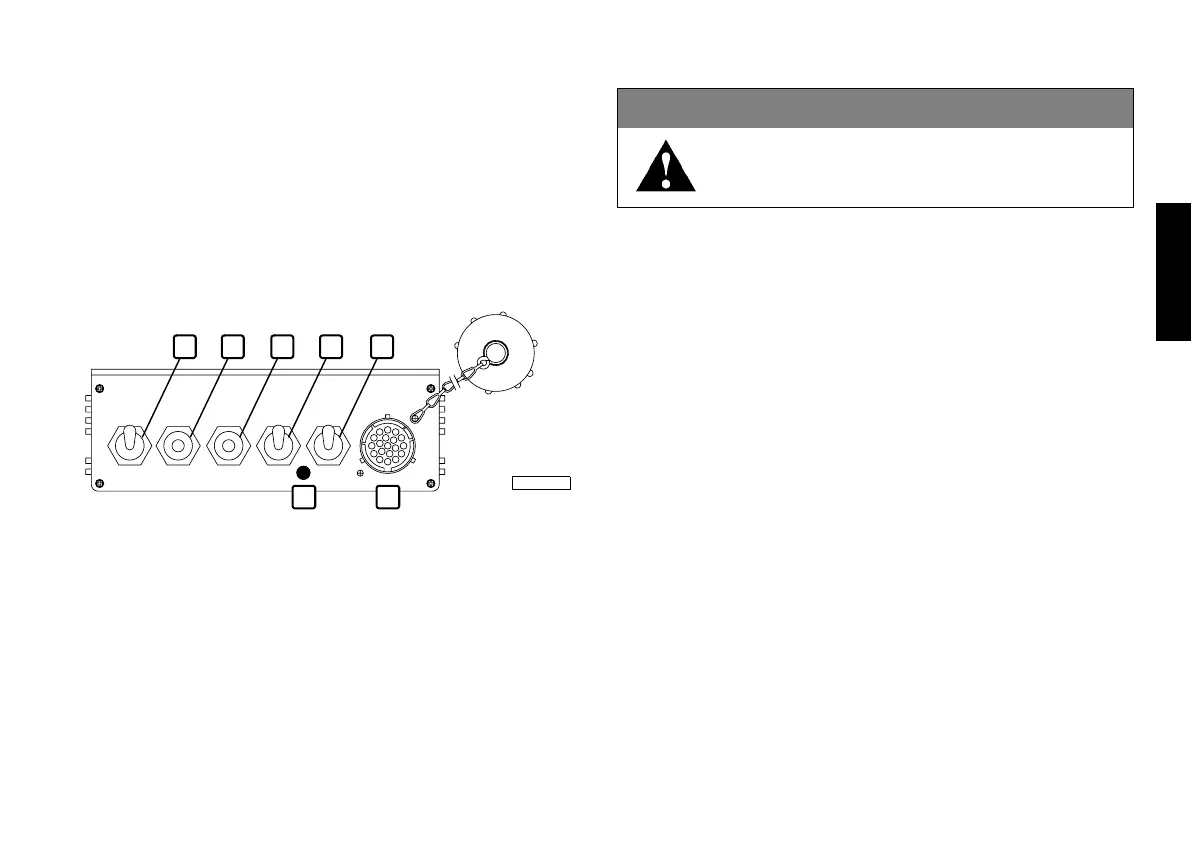

1. Control post selection - 2. Start/stop control - 3. Manual accelerator -
4. Accelerator push button enabling (3) - 5. Blink code emission push
button - 6. EDC fault signaling led and blink code - 7. Diagnosis tool
connector.
Startup procedure
1. Turn the switch to 1 ENGINE ROOM. The START-STOP (2) push
button nearby is enabled; this action disables any function of
on boardpanels located on the bridge and fly-bridge.
2. Press the 2 push button to ENGINE START position and release it
upon startup.
Speed management procedure
1. Turn the 4 switch to PTO ON position;
2. To speed up: press and hold the 3 button in the PTO+ position
until the required speed is reached, then release it.
3. To speed down: press and hold the 3 button in the PTO- position
until the required speed is reached, then release it.
Once the required speed has been reached, it will be maintained until
the 4 switch is turned to PTO OFF position or the engine is stopped.
%.').%
2//-
%.').%
34/0
04/
04/
/.
"2)$'% %.').%
34!24
04/ 04/
/&&
#(%#+
6 7
04_002_C
1 2 3 4 5
WARNING!
When the engine is rotating, do not operate the ENGINE
ROOM / BRIDGE switch.
