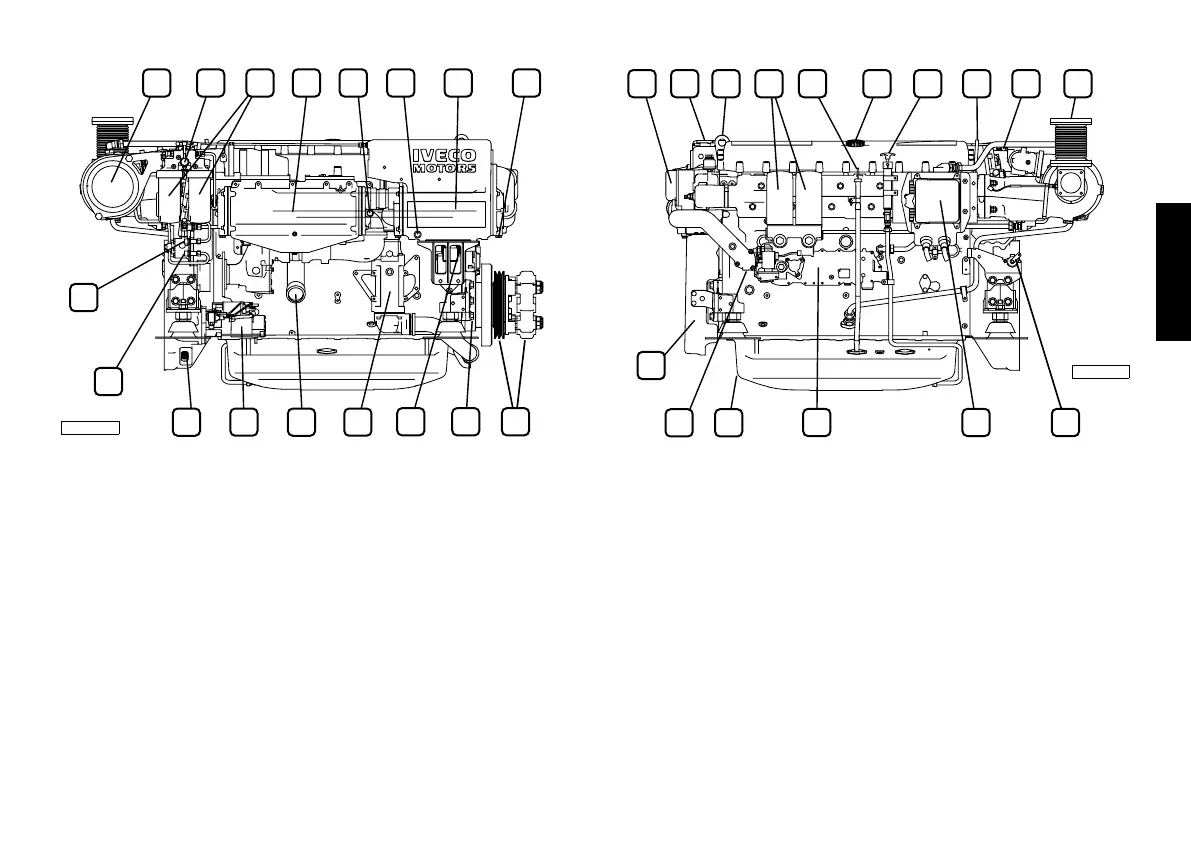

CURSOR C13 ENT M50 Engine
1. Air filter - 2. Fuel filters switch lever (opt.) - 3. Fuel filter - 4. Air-sea water
heat exchanger - 5. Sacrificial anode - 6. Sacrificial anode - 7. Coolant - sea
water tube bundle heat exchanger - 8. Sea water drain plug - 9 Pulleys and
joints for power take-offs coupling (opt.) - 10. Auxiliary elements tensioning
belt - 11. Alternator location - 12. Inverter oil heat exchanger (opt.) - 13. Sea
water pump intake - 14. Electrical starter motor - 15. Seat for flywheel tool
insertion - 16. Engine fuel intake pipe - 17. Fuel pipe to tank.
CURSOR C13 ENT M50 Engine
1. Location of thermostatic valve - 2. Coolant refill cap - 3. Lifting padeye - 4.
Oil filters - 5. Lubricating oil dipstick - 6. Lubricating oil refill cap - 7. Lubrication
oil hand pump - 8. Lifting padeye - 9. Location of oil steam filter and filter
clogging sensor - 10. Chimney exhaust gas (pot.) - 11. Accelerator
potentiometer lever - 12. Electronic control unit - 13. Lubricating oil heat
exchanger - 14. Lubricating oil drain plug- 15. Coolant drain plug - 16. Auxiliary
items belt tensioner casing.
       

  





05_101_C
        


  

05_102_C
