7
ENGLISH

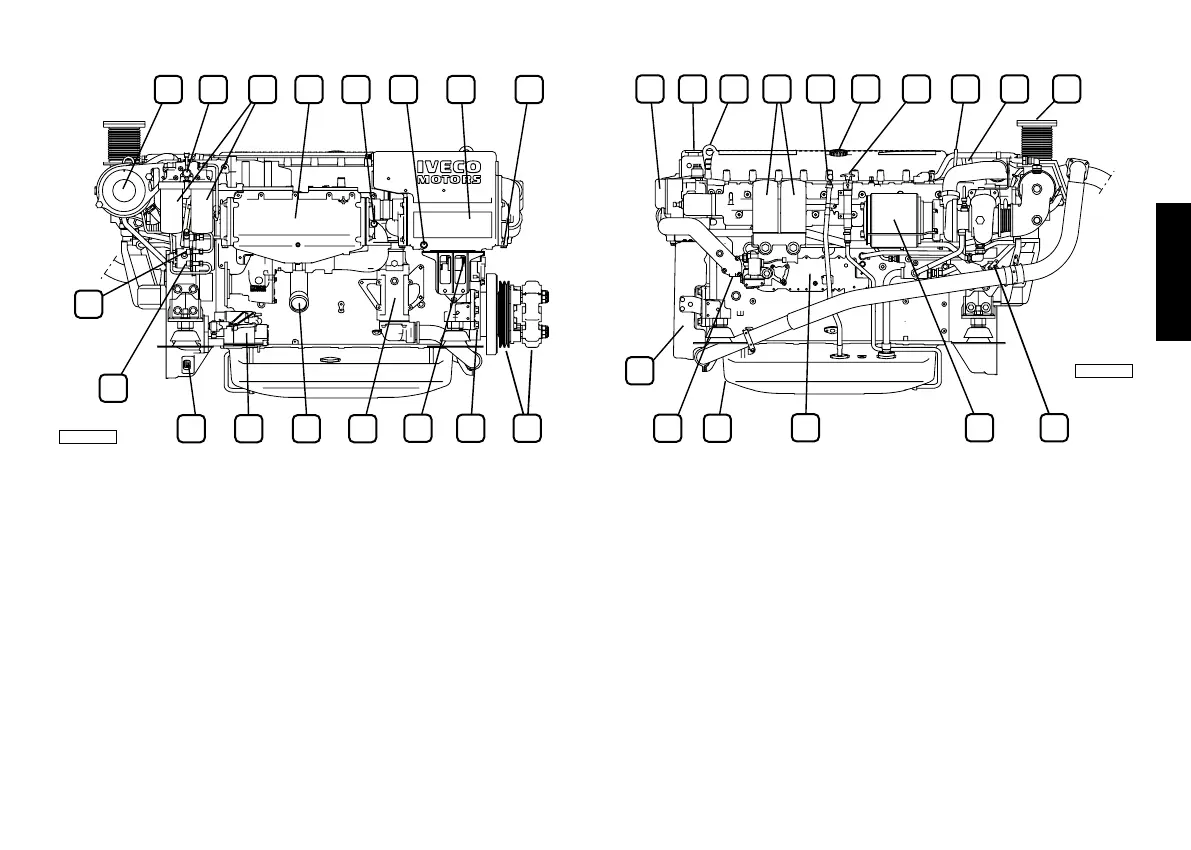

CURSOR C13 ENT M77 Engine
1. Air filter - 1. Fuel filters switch lever (opt.) - 3. Fuel filter - 4. Air-sea water
heat exchanger - 5. Sacrificial anode - 6. Sacrificial anode - 7. Coolant - sea
water tube bundle heat exchanger - 8. Sea water drain plug - 9 Pulleys and
joints for power take-offs coupling (opt.) - 10. Auxiliary elements tensioning
belt - 11. Alternator location - 12. Inverter oil heat exchanger (opt.) - 13. Sea
water pump intake - 14. Electrical starter motor - 15. Seat for flywheel tool
insertion - 16. Engine fuel intake pipe - 17. Fuel pipe to tank.
CURSOR C13 ENT M77 Engine
1. Location of thermostatic valve - 1. Coolant refill cap - 2. Lifting
padeye - 3. Oil filters - 4. Lubricating oil dipstick - 5. Lubricating oil refill
cap - 6. Lubrication oil hand pump - 7. Lifting padeye - 8. Location of
oil steam filter and filter clogging sensor - 9.
Chimney exhaust gas (pot.) -
11. Accelerator potentiometer lever - 12. Electronic control unit - 13.
Lubricating oil heat exchanger - 14. Lubricating oil drain plug- 15. Coolant
drain plug - 16. Belt tensioner carenatura.
       

  





05_103_C
        


  

05_104_C
