DAILY 4x4 ‒ GUIDELINES FOR BODYBUILDERS
ELECTRONIC SUB-SYSTEMS
5.2 BODYBUILDER CONNECTORS
11
– Printed 692.68.999 – 3 Ed. - Base 08-2020
208225

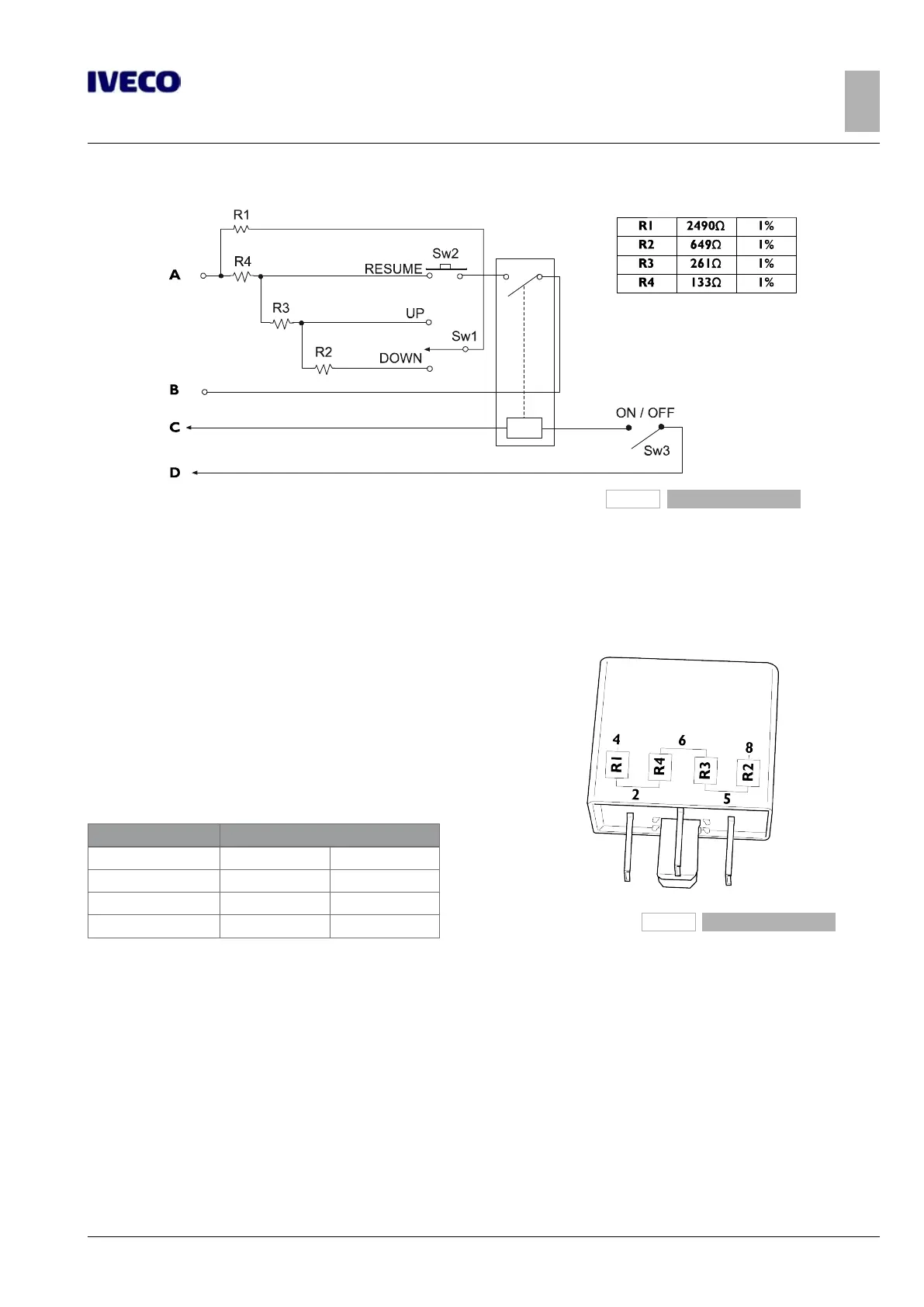

Figure 6
A. 12-pin bodybuilders connector 32-way
B. 13-pin bodybuilders connector 32-way (ground)
C. 28-pin bodybuilders connector 32-way (ground if V=0)
D. 11-pin bodybuilders connector 32-way (+15)
230050
Figure 7
For this purpose IVECO recommends use of a relay which enables utiliza-
tion of the same functions available on the steering wheel lever.
The Cruise Control option must be configured on both the ECM and BCM
systems.
Please note that the driver must position the Cruise Control switch on
the steering wheel lever to OFF, otherwise the external controls will be
ignored.
Table 5.3
Function Short-cut necessary
CC Resume Pin 2 Pin 6
CC Set- Pin 2 Pin 8
CC Set+ Pin 2 Pin 5
CC ON Pin 2 Pin 4
(6)
Should you wish to change the value of the 2nd speed limiter, using the tool available at the IVECO Assistance Service, please note that:
● The accuracy of the speed limiter is reduced at low vehicle speeds.
● The accuracy of the speed limiter is reduced at low engine speeds: interference with the engine idle speed regulator is possible, partic-
ularly below 1000 rpm.
● The speed limiter must only be used in 1
st
gear or in reverse gear.
● The speed limiter may be adjusted in steps of 1 km/h by the IVECO Assistance Service.
● The bodybuilder must check the functionality of the speed limiter for each application and is also responsible for preparing the relative
specific instructions.
