Electronic Hook Switch (EHS) Solutions for Avaya

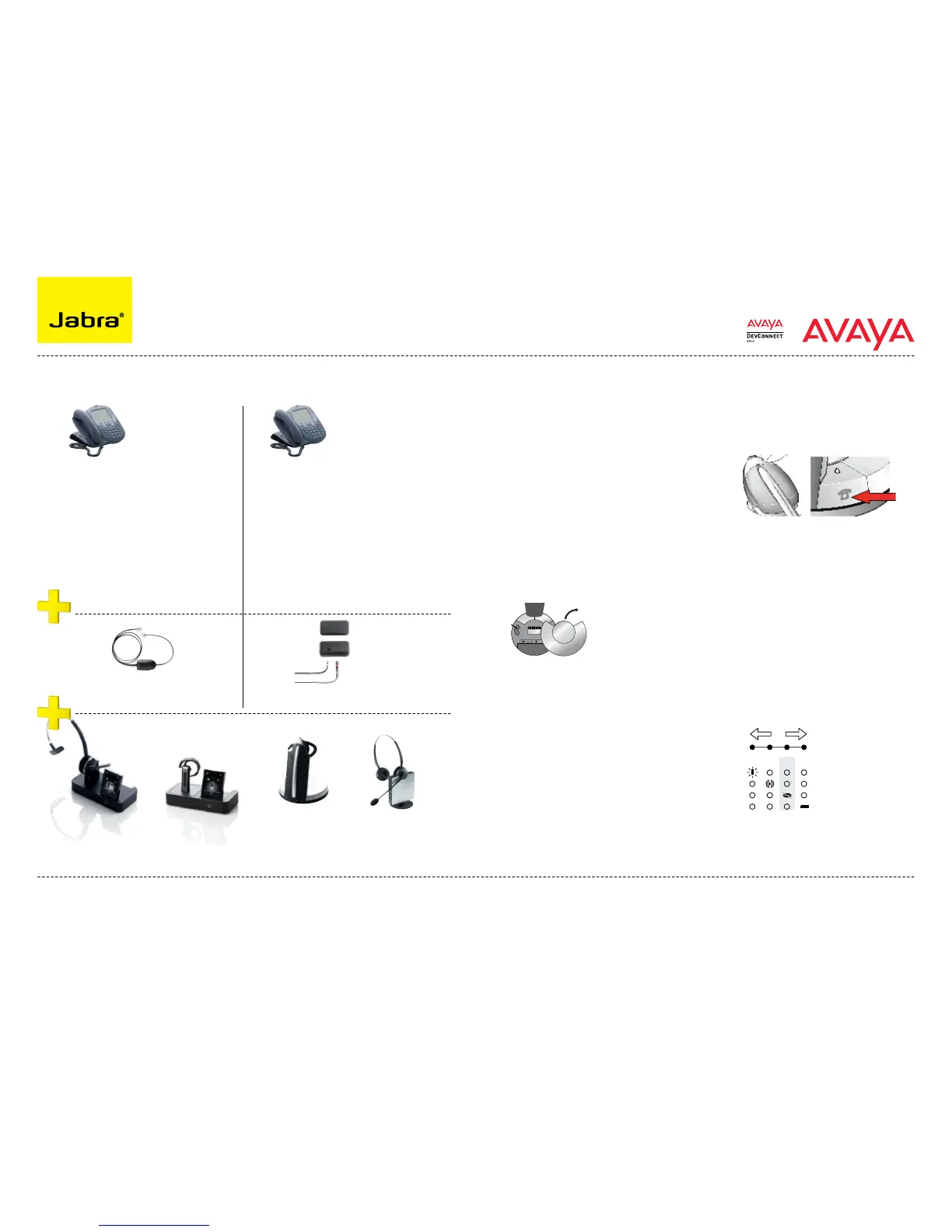

SUPPORTED AVAYA IP PHONES SET UP INFORMATION
To connect your Avaya phone and Jabra headset with the Jabra LINK 14201-19 EHS adapter, just
follow these simple steps: (For set up information on Jabra LINK 14201-20, please go to page 12)
Regional sales contacts:
Americas: Bill Orlansky, borlansky@gn.com
EMEA: Norbert Lohwieser, nlohwieser@gn.com
APAC: Mike Powrie, mpowrie@gn.com
For more information visit www.jabra.com/avaya
SEE THE LAST PAGE FOR ORDER INFO
Setting up Jabra PRO 9400 and Jabra GO
6400 - follow the guide on page 11.
Setting up Jabra GN9350e series
Open up the cover on the base unit. 1.
On the LCD display, navigate to the 2.
handset picture.
Navigate to the DHSG mode and select 3.
it by pressing the OK button.
Set Compatibility selector in position 4.
“A”.
Setting up Jabra GN9330e EHS
Place headset on base station.1.
Push simultaneously 5 sec on the 2 2.
buttons (base station and headset
– see illustrations next column)
LED on headset starts to blink rapidly 3.
Choose EHS mode with volume control 4.
on headset. LEDs on base indicates
selected mode: LED 2: DHSG mode
After setting wait a few seconds. 5.
When LED on headset stops blinking,
start using headset.
Setting up Jabra GN9120/GN9125 EHS
Set compatibility selector (1.
Telephone
Termination Switch Wheel
)
in position “A”
Set the base unit to the DHSG mode 2.
by keeping the headset in the base
and hold the volume +/- buttons on
the headset for 6 seconds until the red
light on the base flashes rapidly.
Scroll through the four different 3.
settings using +/- and set to the lips
icon. Leave for 15 seconds until the
unit has displayed the confirmation
flash sequence and it is ready to go!
Avaya 2420 ver B On IP switch only
Avaya 2420 IP Ver Firmware> 4.0
Avaya 4610 & 4610SW Firmware> 1.8
Avaya 4620 & 4620SW Firmware> 1.8
Avaya 4621 & 4621SW Firmware> 1.8
Avaya 4622 & 4622SW Firmware> 1.8
Avaya 4625 & 4625SW Firmware> 1.8
Avaya 4630 & 4630SW Firmware> 1.8
Avaya 5620
Avaya 5621
Avaya 5625
Avaya 1608
Avaya 1616
Avaya 2410
Avaya 5410
Avaya 5420
Avaya 5610
Avaya 6224D+M
Avaya 6416D+M
Avaya 6424D+M
Avaya 9620
Avaya 9630
Avaya 9640
Avaya 9650
Jabra LINK™ 14201-20 EHS
Adapter for Avaya
Jabra LINK™ 14201-19 EHS
Adapter for Avaya
