MODEL
NO.
VOLTAGE
MAXIMUM
AMP
DRAW
MAXIMUM
FUSE
SIZE
MINIMUM
WIRE
SIZE
MAXIMUM LENGTH
BETWEEN (+) & (-)
BATTERY TERMINALS
23680-4003 12 volt 13 amp 15 amp
30 / 0.25mm
(1.5mm²)
4.5m (15ft) *
32 / 0.2mm
(1.0mm²)
ELECTRICAL WIRING INFORMATION
23680-4103
24 volt
6 amp
10 amp
4.5m (15ft) *

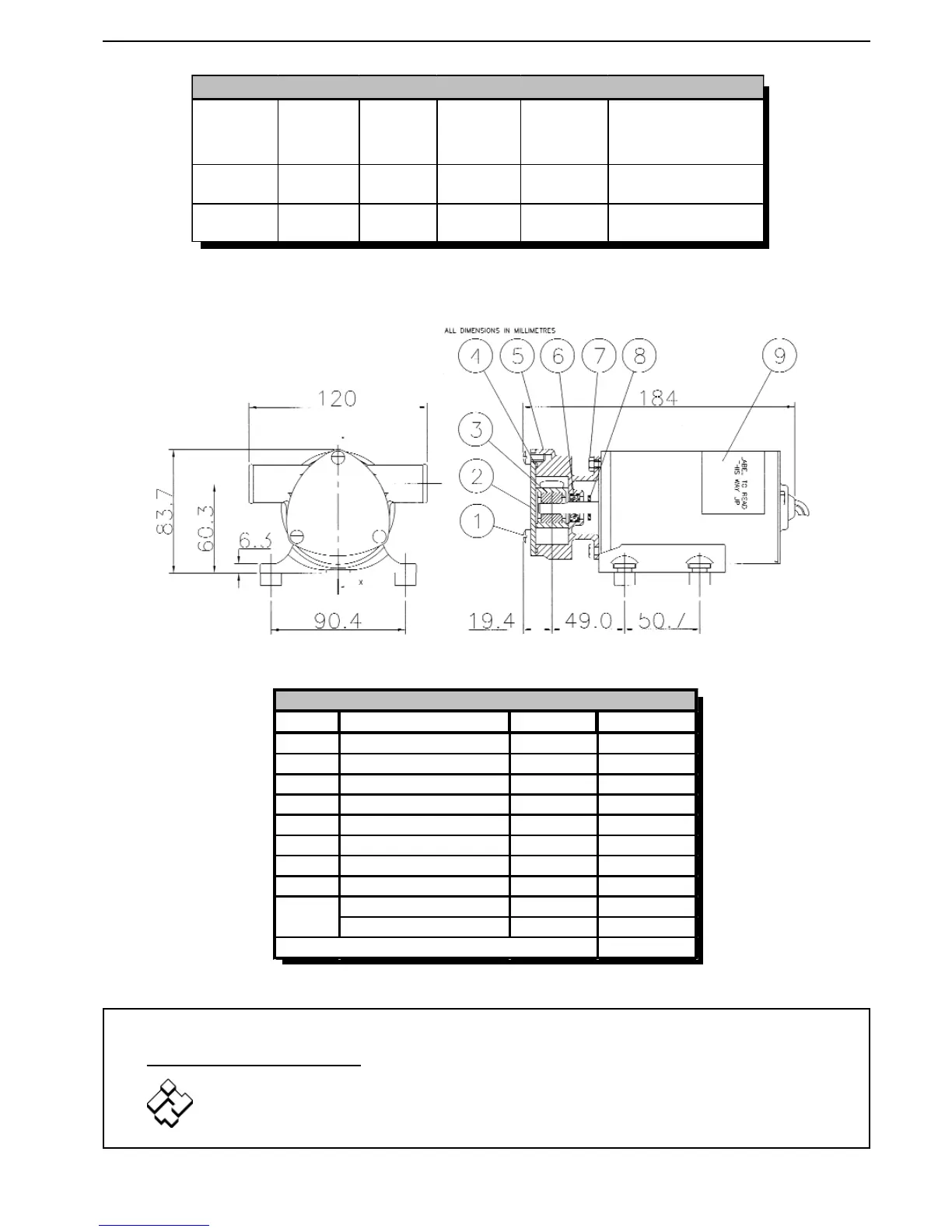

DIMENSIONAL DRAWING & PARTS LIST
WEIGHT: Water Puppy - 3.0kg (6.6lb)
Warranty: All products of the company are sold and all services of the company are offered subject to the company’s warranty and terms and conditions of sale, copies of which will be furnished upon request.
©Copyright 2005 ITT Industries
43010-0129 rev 08/2005 qxd
Jabsco
ITT Industries
Jabsco, 20 Icon, Foothill Ranch, CA 92610
Tel : +1 949 609 5106 Fax : +1 949 859 1254
Jabsco, Bingley Road, Hoddesdon, Hertfordshire, EN11 0BU
Tel : +44 (0) 1992 450 145 Fax : +44 (0) 1992 467 132
Fluid Products Canada
,
55 Royal Road, Guelph, Ontario N1H 1T1
Tel : +1 519 821 1900 Fax : +1 519 821 5316
NHK Jabsco Co Ltd
,
3-21-10, Shin - Yokohama, Kohoku-ku, Yokohama 222
Tel : +81 (0) 45 475 8906 Fax : +81 (0) 45 475 8908
Jabsco GmbH
,
Oststraße 28, 22844 Norderstedt
Tel : +49 (0) 40 53 53 73 0 Fax : +49 (0) 40 53 53 73 11
USA
UK
CANADA
JAPAN
GERMANY
www.jabsco.com
KEY DESCRIPTION QUANTITY PART NO.
1 End Cover Screw * 3 SP1004-09
2 End Cover 1 9328-0200
3 Impeller * 1 6303-0003
4 O-ring * 1 X5251-049
5 Body 1 23064-2100
6 Seal * 1 SP2701-52
7 Screw (pump to motor) 2 X3001-147F
8 Slinger 1 6342
Motor 12V 1 98012-2652C
Motor 24V 1 98012-2653C
SK224
WATER PUPPY PART LIST
Service Kit (Contains Items Marked *)
9
* For longer installations, fit thicker cables
