cover. Position the handle on the diverter shaft and
secure it in place with its screw. Orient the top cover so
the discharge indicator arrows align with their respective
discharge ports and secure the top cover to the valve
body with its three machine screws. Slide the diverter
into the valve body positioned near the discharge ports.
Ensure the diverter pivot pin is properly aligned, with the
pivot pin socket in the bottom of the body and push the
top cover firmly against the body.
O-Ring seal, with the diverter positioned opposite the
raised molded-in handle stop on the underside of the top
cover. Position the handle on the diverter shaft and
secure it in place with its screw. Orient the top cover so
the discharge indicator arrows align with their respective
discharge ports and secure the top cover to the valve
body with its three machine screws. Slide the diverter
into the valve body positioned near the discharge ports.
Ensure the diverter pivot pin is properly aligned, with the
pivot pin socket in the bottom of the body and push the
top cover firmly against the body.

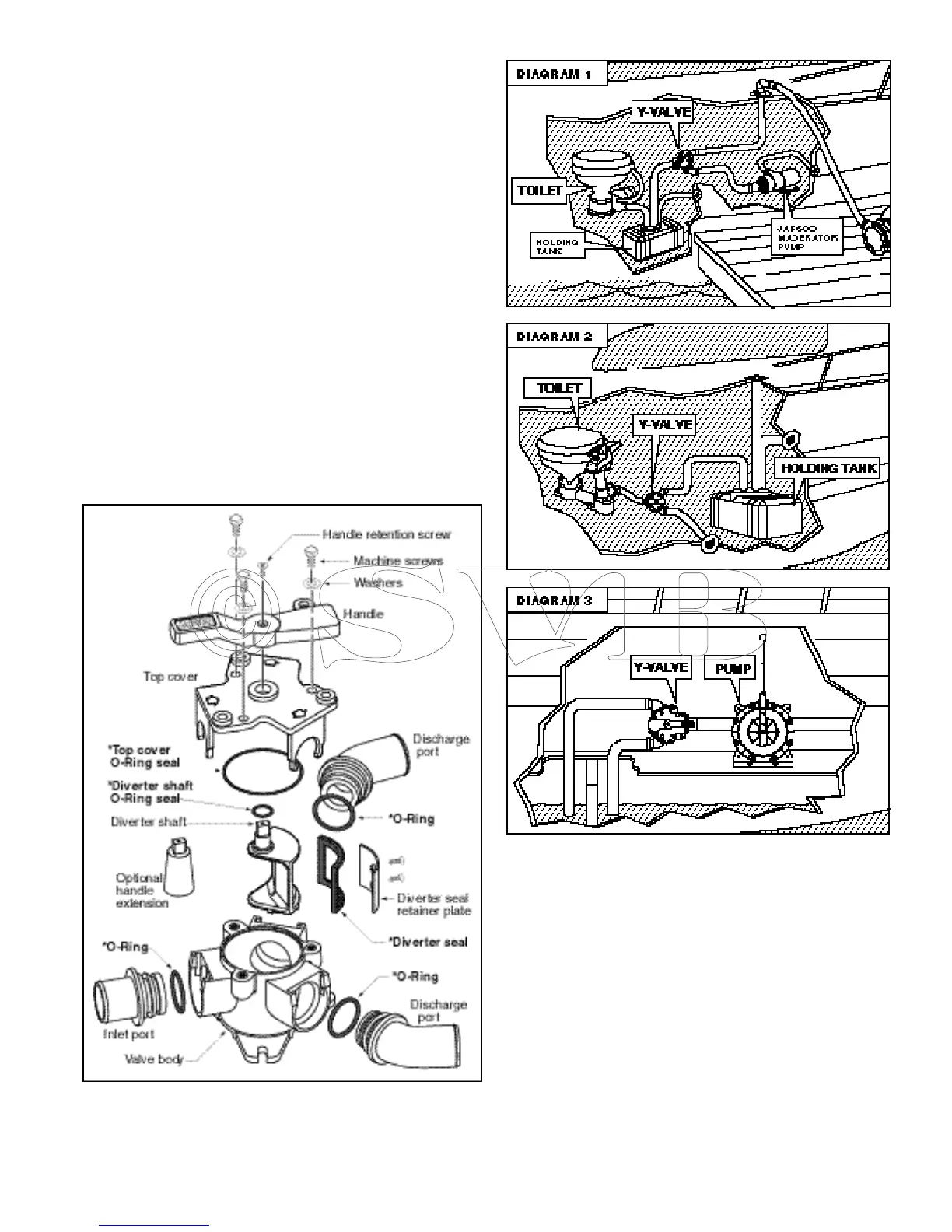

SERVICE (CONT.)
* Shaded parts with bold descriptions are included in
45488-0000 Service Kit.
Port Kit (includes all ports) 18753-0661
