Air-cooled generator is adopted by Sunray series vehicle, conducting cooling via the air blowing from the fan behind
the pulley into the generator shell. The generator is the main power of the vehicle with the function of power
supplying to all electric equipments (except starter) in the normal operation of the starter (above the idle speed) as
well as battery charging.
Explosive
Explosive
Explosive
Explosive View
View
View
View of
of
of
of Generator
Generator
Generator
Generator

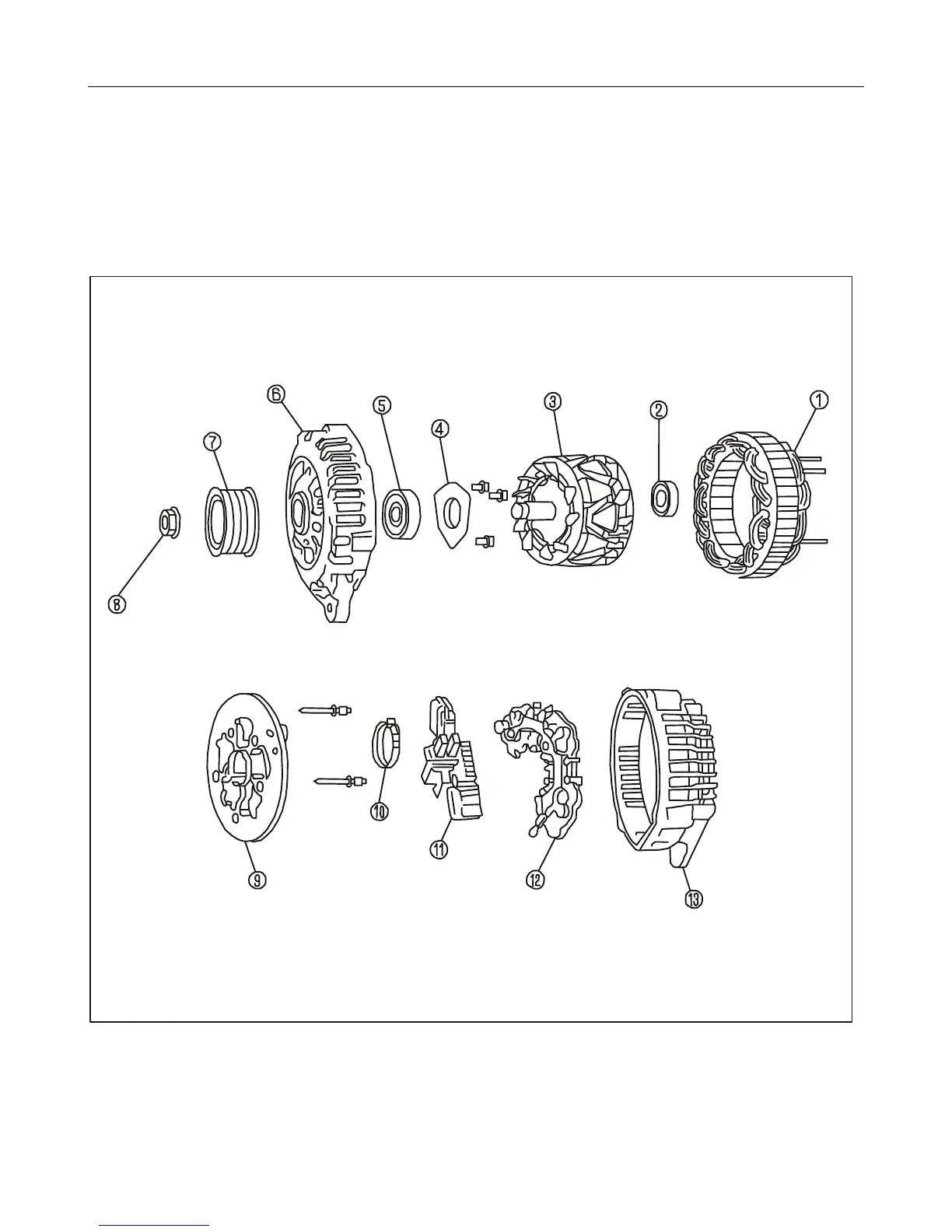

1. Stator 2.Rear bearing 3.Rotor assembly 4.Retainer
5. Front bearing 6.Front cover 7.Pulley 8.Pulley nut
9.Fan guider 10. Double labyrinth seal 11.IC voltage regulator assembly 12.Diode assembly
13. Rear cover
