JAC HFC4DA1-2C - Page 226

SC
SC
SC
SC Battery
Battery
Battery
Battery and
and
and
and Charging
Charging
Charging
Charging System
System
System
System
- 18 -
Removal
Removal
Removal
Removal and
and
and
and Installation
Installation
Installation
Installation
Removal
Removal
Removal
Removal of
of
of
of Generator
Generator
Generator
Generator

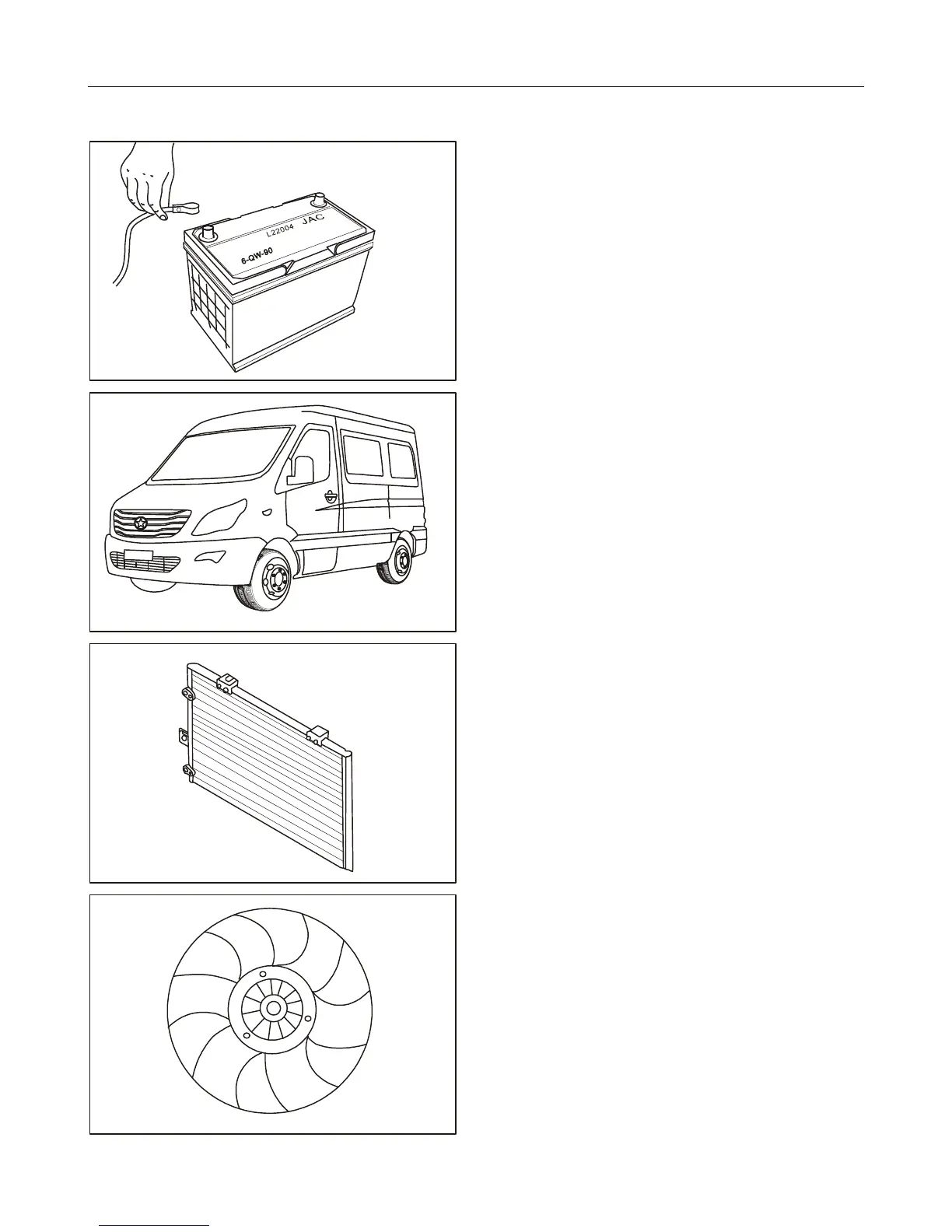

1. Disconnect the battery connection.
2. Remove the front bumper.
3. Remove the condenser, intercooler and water tank.
4. Remove the cooling fan.
