Maintenance manual for sunray hfc4da1-2c china-IV diesel engines

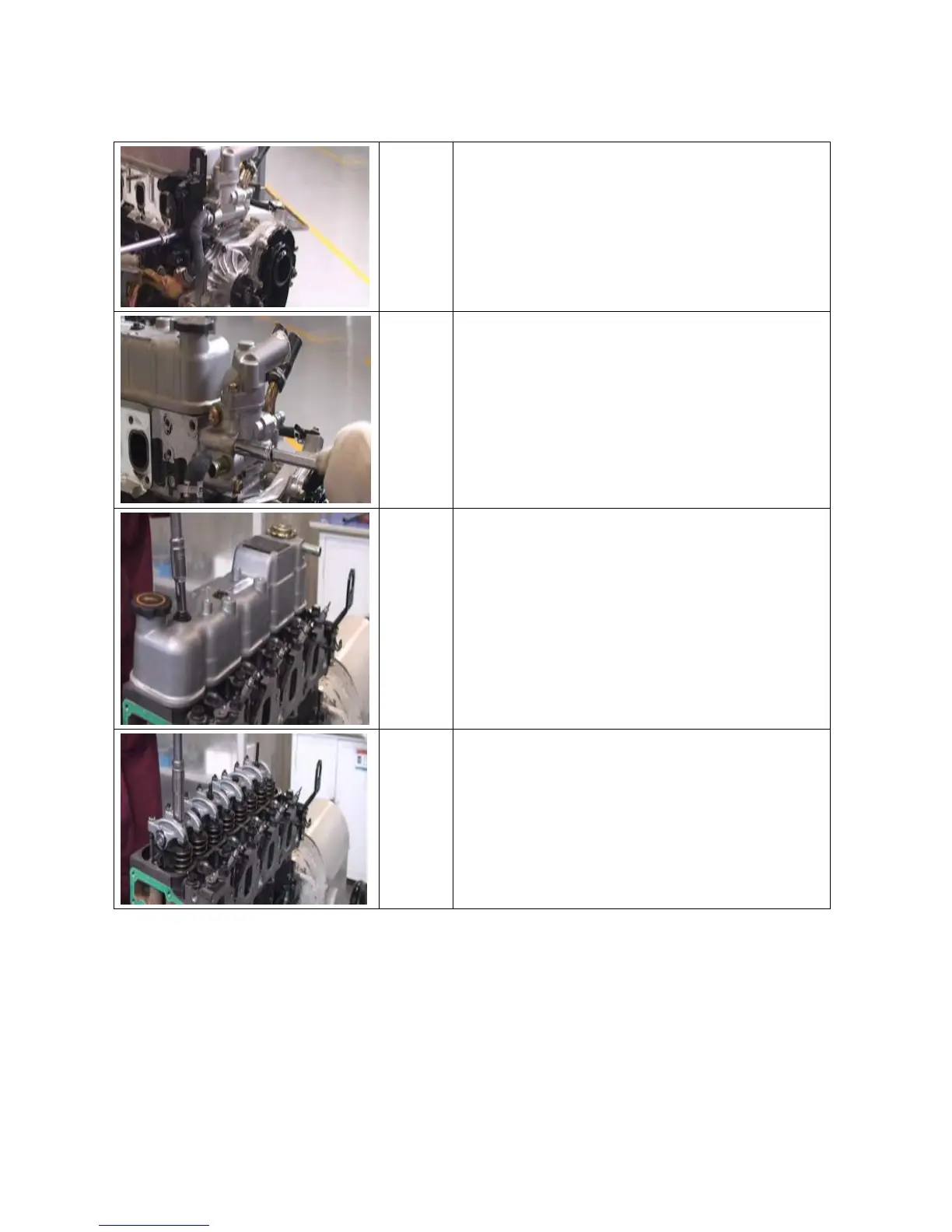

j. Remove the fixing bolts of compressor bracket and

remove the compressor bracket;

k. Remove the bypass rubber pipe, remove the thermostat

housing and water outlet assembly; Disassemble the

fixing bolts of thermostat housing and remove the

thermostat housing.

l. Remove the fixing bolts of cylinder head shield and

remove the cylinder head shield;

m. Remove the bolts and nuts of rocker arm support as per

specified sequence and remove the rocker arm

assembly. Sequence: 4-1-3-2

n. Notice: The failure to loosen the bolts of rocker arm

support as per the specified sequence will damage the

rockshaft*.

o. Take out the push rod;
