Sunray instruments are all-digital instruments which take stepping motors as the structural forms. Analog or
digital signals of all sensors are converted into digital signals via processing of central processing units (CPU) to
drive the stepping motors. After the processing, the drive signals are sent to respective indicating instruments of
stepping motors and actuate their operations.
Locations
Locations
Locations
Locations of
of
of
of combination
combination
combination
combination instruments:
instruments:
instruments:
instruments:

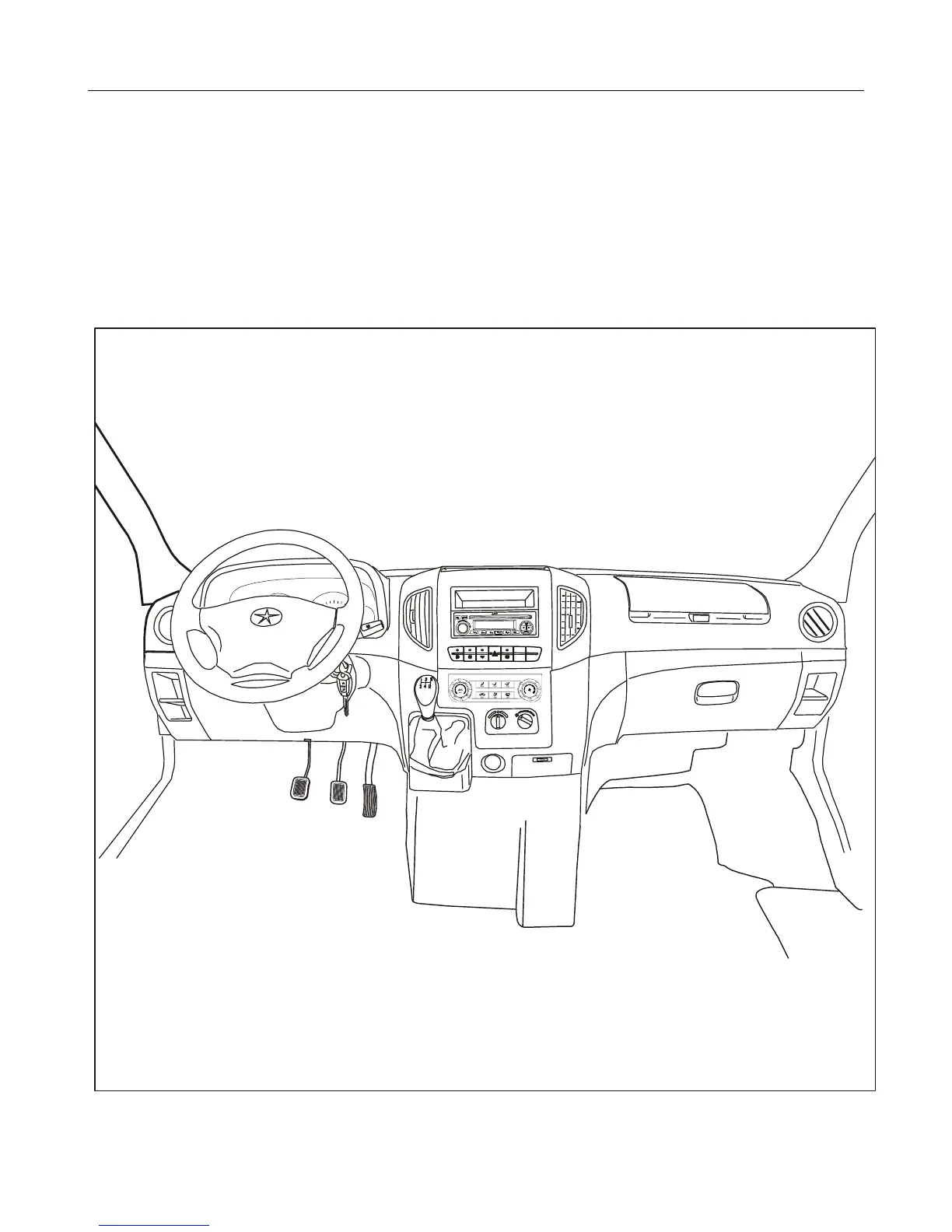

Sunray combination instrument is in front of the driver.
