8. Power Window Timer
When the ignition switch is turned to “ ON ”
position, the power windows are operable with
front doors closed. When the ignition switch is
turned to “ LOCK ” or “ ACC ” position, the power
windows are operable within T1 (30 ± 3sec);
however, if any of front doors opens within this
period, the power windows are inoperable.
T1: 30 ± 3 sec
9. Tail Lamp Auto Cut
Tail lamps shall lighten in any case once the
lighting switch (on the left of combination switch)
is turned from OFF to ON.
Tail lamp auto cut is controlled by the procedures
below:
� Lighting switch (on the left of combination
switch) is turned from ON to OFF.
� With the key pulled out, when the driver side
door opens, the tail lamp shall go out.
� If you insert the key again, the tail lamp shall
lighten.
Note: Tail lamps mentioned here refer to small
lamps.
10. Rear Fog Lamp Control
With the ignition switch turned to “ OFF ” position,
the lighting switch (on the left of combination
switch) and front fog lamp switch turned on, if you
turn on the rear fog lamp switch, the rear fog lamps
won ’ t lighten. With the ignition switch turned to
“ ON ” position, the lighting switch (on the left of
combination switch) turned to small lamp position,
and front fog lamp switch turned on, if you turn on
the rear fog lamp switch, the rear fog lamps shall
lighten and at this time if you turn off the front fog
lamps, the rear fog lamps shall be turned off
simultaneously. When the lighting switch is turned
to lighting position, the operation of rear fog lamps
won ’ t be affected by the front fog lamps, viz. with
front fog lamp switch off, the rear fog lamps can be
separately controlled by the rear fog lamp switch.

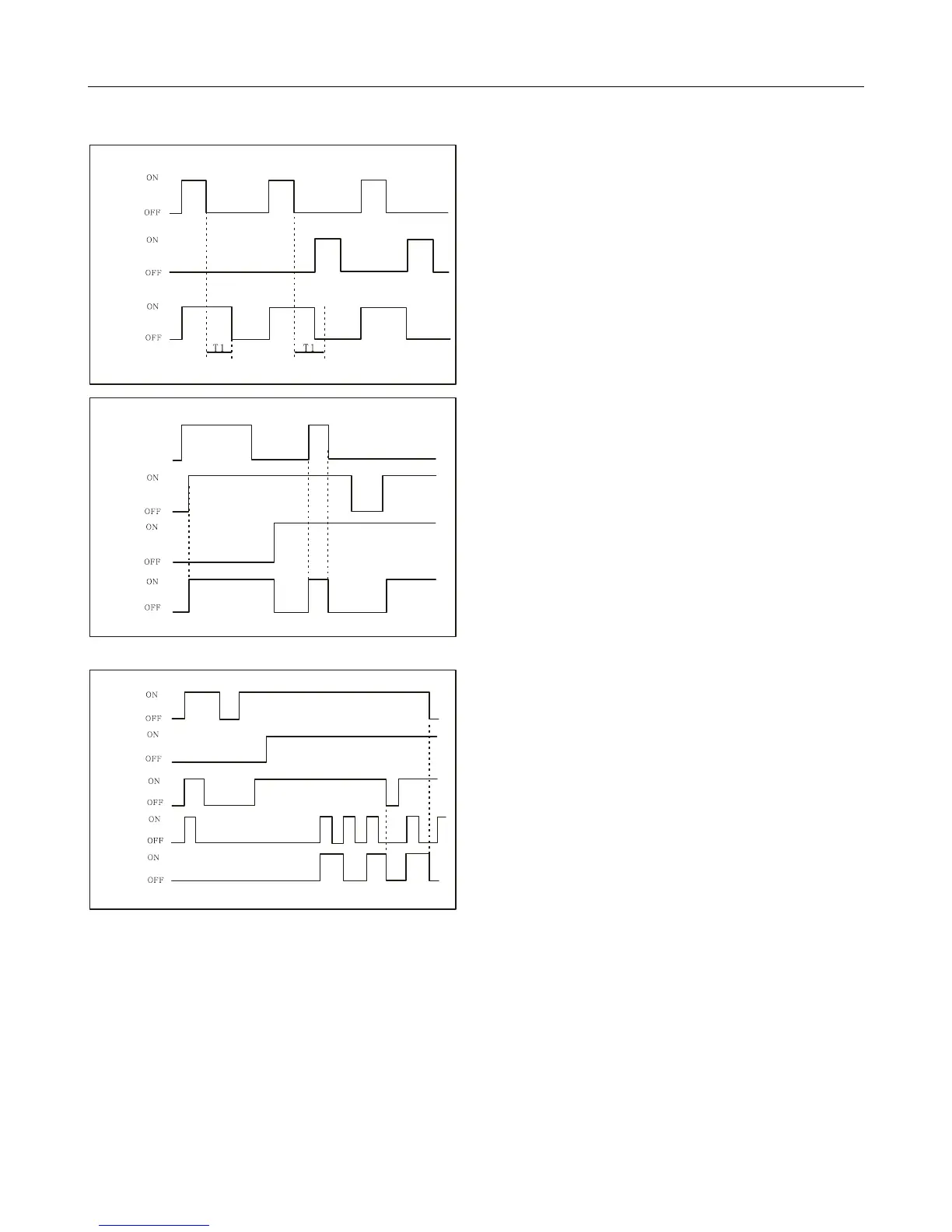

Ignition
switch
Front door
switch
Power
window
motor
Ignition switch
Insert in
Pull out
Small lamp switch
Driver side
door switch
Tail
lamp
relay
Tail
lamp
relay
Ignition
switch
Front fog
lamp switch
Rear fog lamp
switch
Rear fog
lamp
