1. Control logic
In the case of no fault in sensor, the buzzer 2HZ beeps once; in the case of one or more faulted sensors, the buzzer 2HZ beeps twice and
then turns into normal distance measurement.
Distance
0 - 30
﹥
30 - 60
﹥
60 - 90
﹥
90 - 180
﹥
180
Beeping frequency of the buzzer ON 8HZ 4 HZ 2 HZ OFF
2. Definitions of control module interfaces

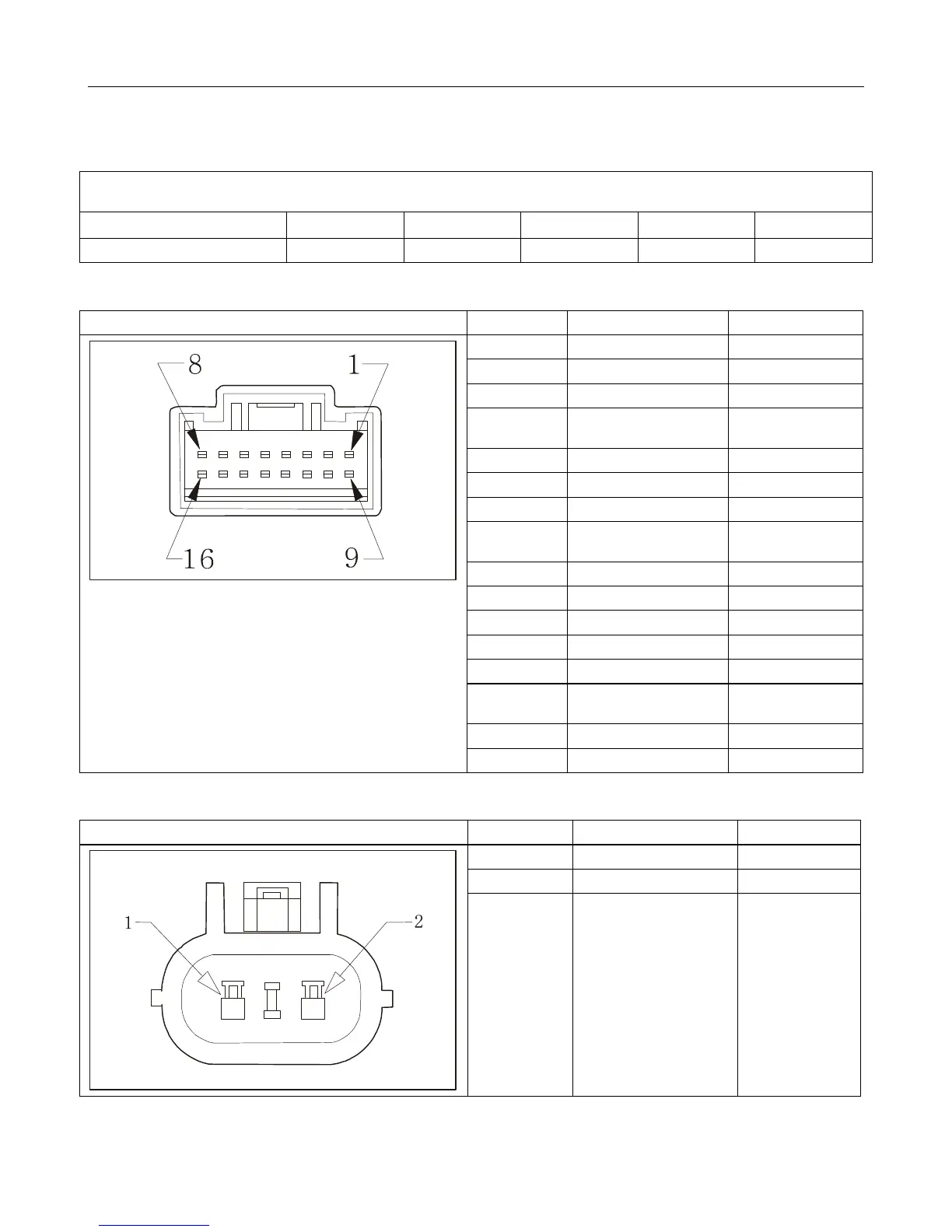

Connector figure Pin Signal name Function
1 R-SHIFT Reversing signal
2 NC
3 NC
4 S-CR Right intermediate
probe
5 NC
6 NC
7 S-L Left probe
8 S-CL Left intermediate
probe
9 NC
10 NC
11 NC
12 NC
13
DATA
Data display
14 Buzzer Control signal of
buzzer
15 S-R Right probe
16 GND Ground
3. Probe interfaces
Connector figure Pin Current Function
1 0.1 Power supply
2 0.1 Ground
