JAC HFC4DA1-2C - Page 409

AT
AT
AT
AT Air
Air
Air
Air Conditioner
Conditioner
Conditioner
Conditioner
- 200 -
Removal/Installation
Removal/Installation
Removal/Installation
Removal/Installation
Removal/installation
Removal/installation
Removal/installation
Removal/installation of
of
of
of temperature
temperature
temperature
temperature control
control
control
control motor
motor
motor
motor

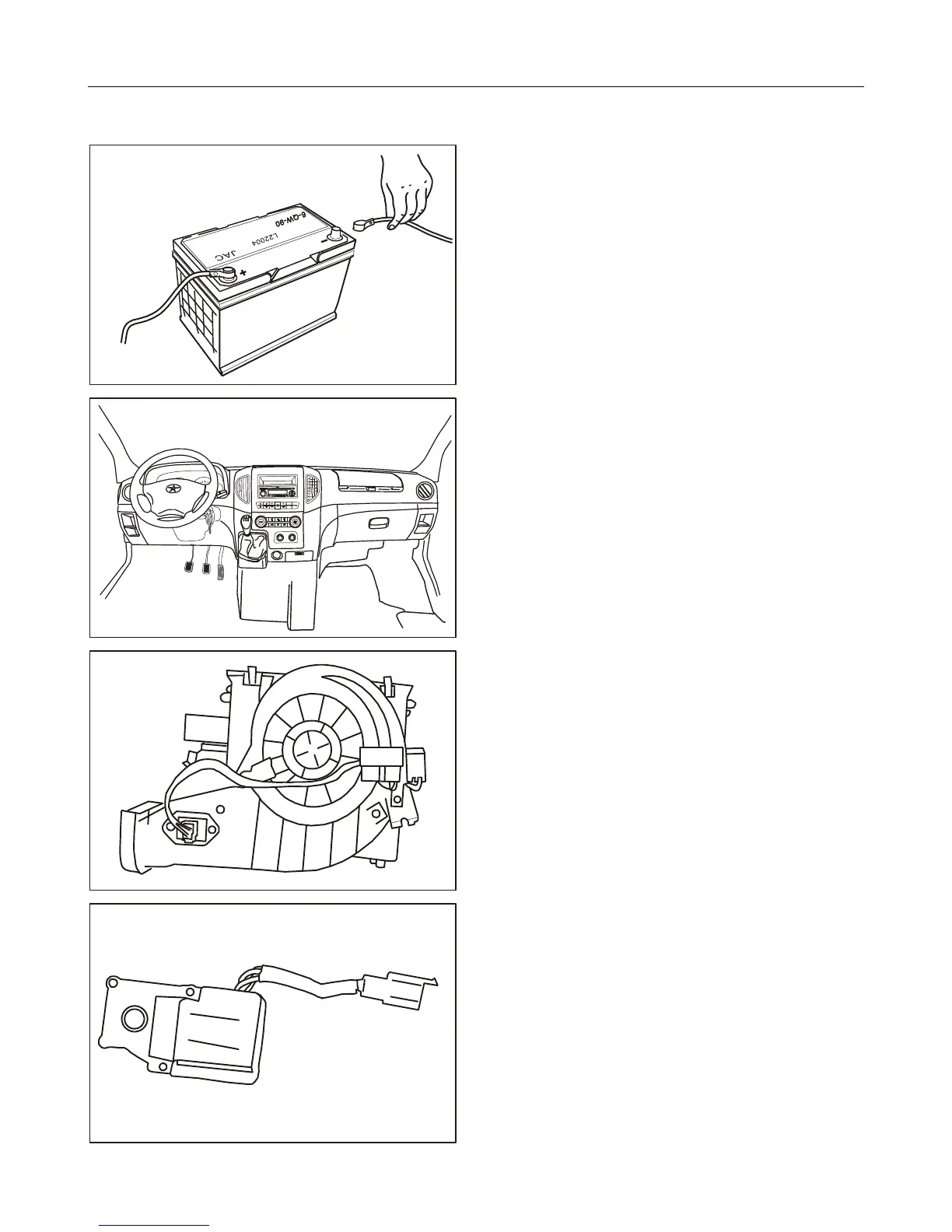

1. Disconnect negative cable of battery.
2. Remove instrument panel.
3. Disconnect harness connector and remove
mounting screws from temperature control motor.
4. Take down the temperature control motor.
