JAC HFC4DA1-2C - Page 412

AT
AT
AT
AT Air
Air
Air
Air Conditioner
Conditioner
Conditioner
Conditioner
- 203 -
Removal/Installation
Removal/Installation
Removal/Installation
Removal/Installation
Removal/
Removal/
Removal/
Removal/ i
i
i
i nstallation
nstallation
nstallation
nstallation of
of
of
of internal/external
internal/external
internal/external
internal/external air
air
air
air damper
damper
damper
damper motor
motor
motor
motor

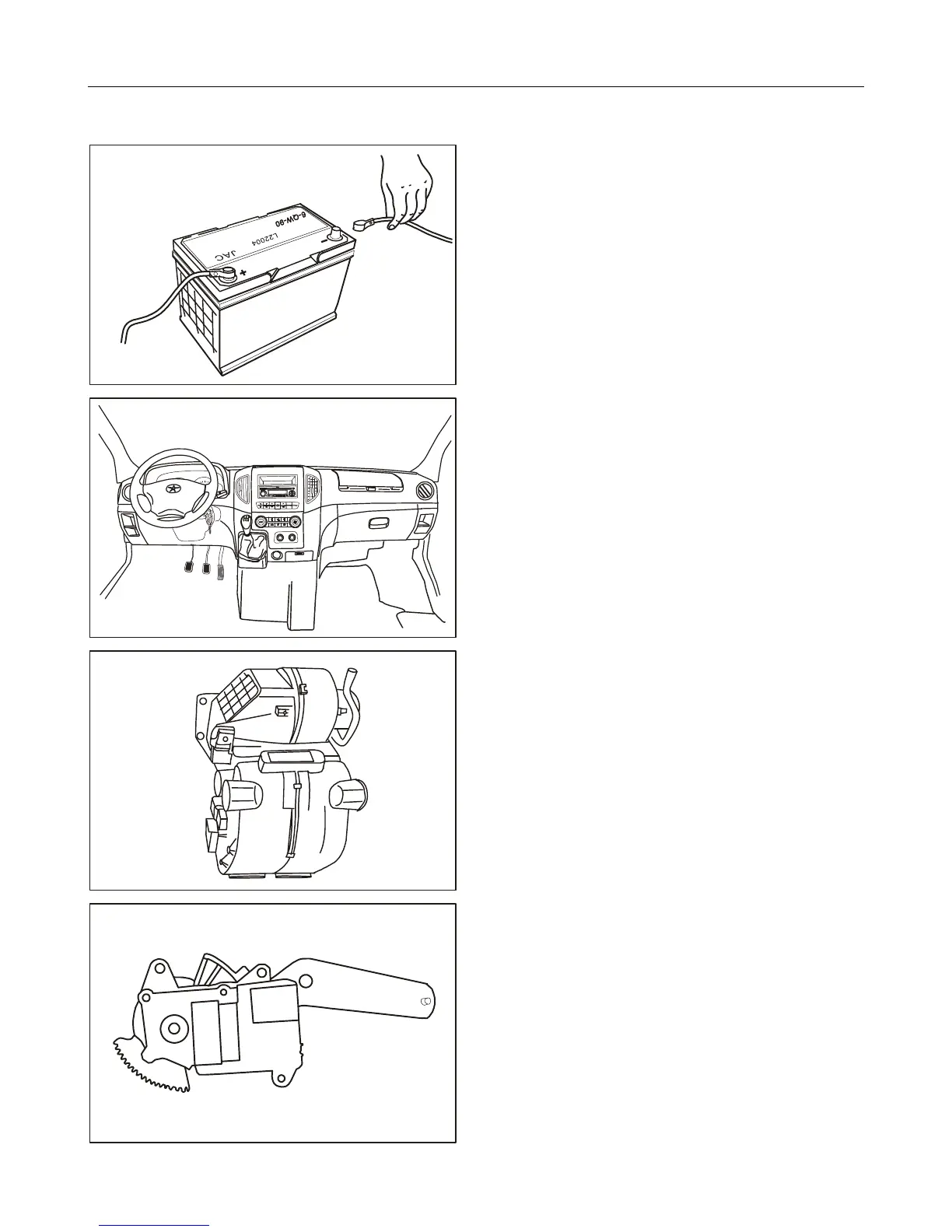

1. Disconnect negative cable of battery.
2. Remove instrument panel.
3. Disconnect harness connector and remove
mounting screws from internal/external air damper
motor.
4. Take down the internal/external air damper motor.
