- 212 -
Notation
The following electrical notations, electrical symbols and abbreviations are adopted in this manual.

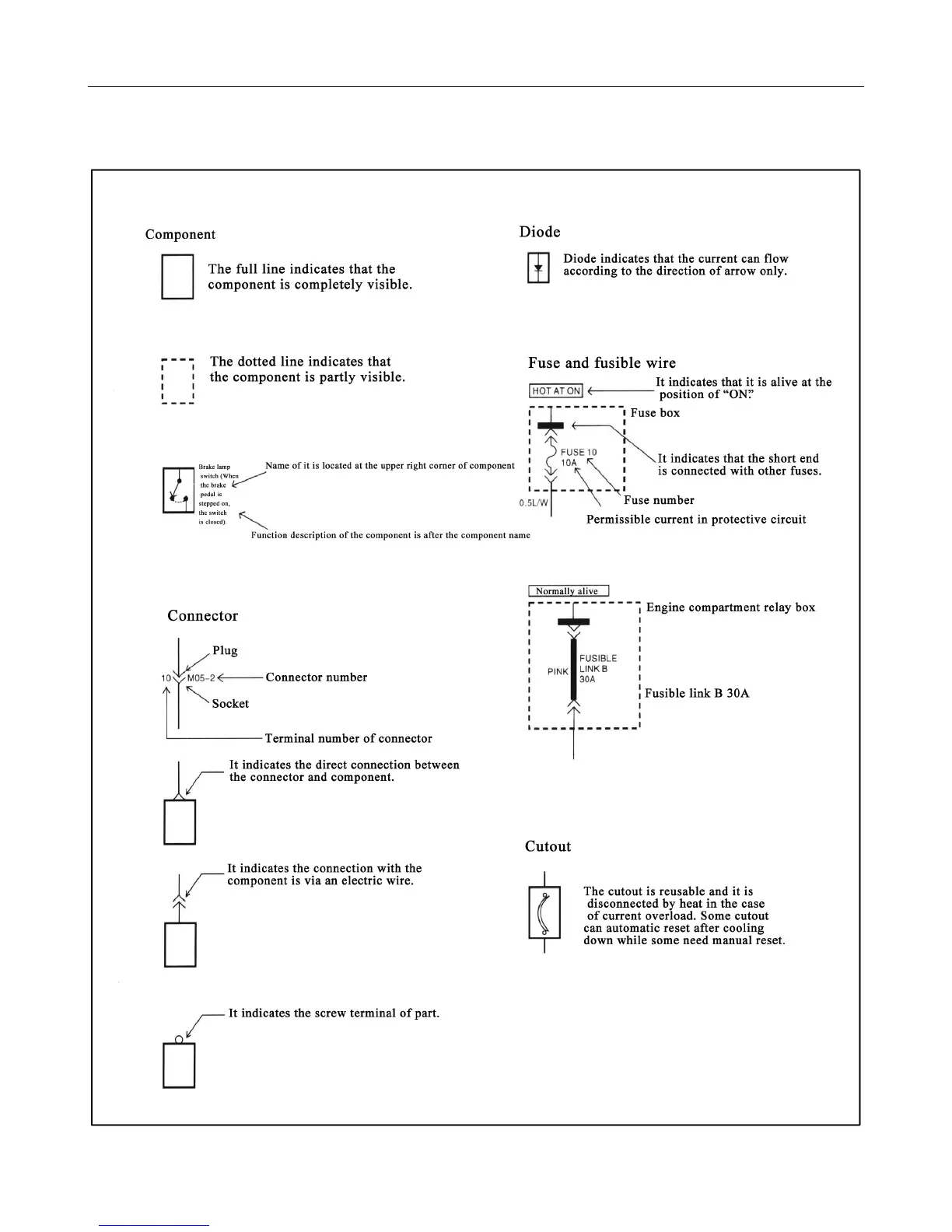

Notation of circuit diagram
