JAC HFC4DA1-2C - Page 426

EC
EC
EC
EC Circuit
Circuit
Circuit
Circuit Diagram
Diagram
Diagram
Diagram
- 215 -
Wire color description
Wire color Code Wire color Code
Black B Orange O
Blue L Pink P
Brown Br Red R
Green G Violet V
Gray Gr Yellow Y
Light green Lg White W

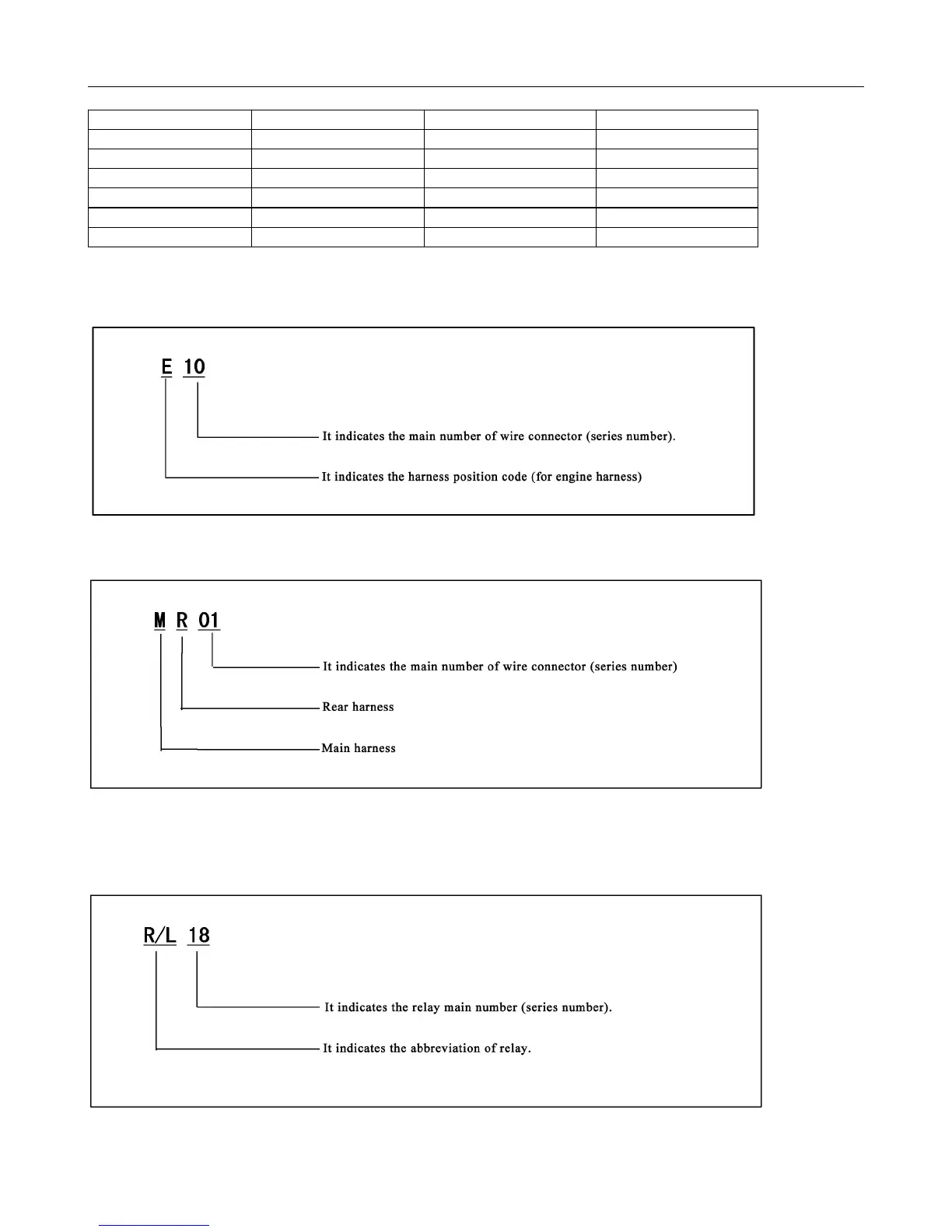

Identification of wire connector codes
Wire connector identification code consists of harness position identification code and wire connector identification
code. For example:
Notice:
Wire connectors between harnesses are expressed by following codes. For example:
Identification of relays
Relay identification code consists of relay abbreviation and its main number (series number). For example:
