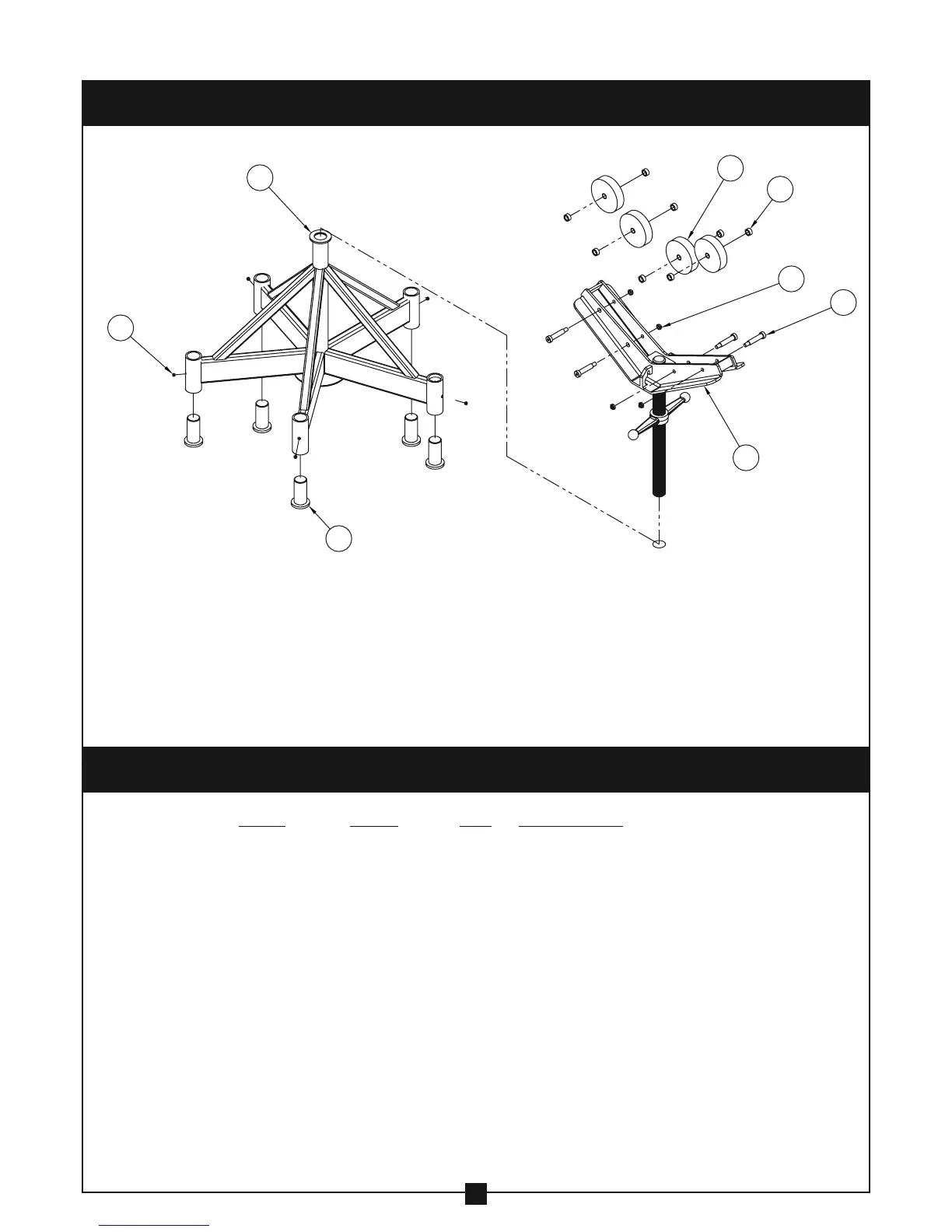

EXPLODED VIEW – 636NC
PARTS LIST — 636NC
ITEM# PART# QTY DESCRIPTION
1 ....................302-2 .................. 4 ......... Nut – Hex,
3
⁄8-16 (Nylon Insert – Thin)
2 ....................636-3 ................... 5 ......... Screw – Socket Set (
5
⁄16"-18 X
1
⁄4") Cup Pt
3 ....................636-4 ................... 4 ......... Screw – Shoulder, (
1
⁄12" X 2")
4 ..................636-846 ................. 8 ......... Spacer
5 ..................636-855 ................. 1 ......... V-Head
6 ..................636-861 ................. 1 ......... Base
7 ..................636-895 ................. 4 ......... Roller
8 ..................636-902 ................. 5 ......... Foot Assembly
2
6
8
7
4
1
3
5
