Jacuzzi Faucet Kit User Manual

GASKET
INSERT
FAUCET HANDLE
(HOT)
5/8" X 1/2"
ELL
VALVE (2)
5/8" O.D.
COPPER PIPE
TEE 5/8" X 5/8" X 1/2"
5/8" O.D.
COPPER PIPE
5/8" X 1/2"
ELL
HOT WATER
SUPPLY
COLD WATER
SUPPLY
SPEEDNUT
PUSH-ON 1-1/2" (2)
INSERT
(COLD)
FAUCET WRENCH
FAUCET HANDLE (2)
WATER RAINBOW
FILL SPOUT
WASHER
1/4" FLAT (2)
LOCKNUT
1/4-20 (2)
BOLT
1/4-20 X 1-1/2"
HEX HEAD
SCREW #10-24 X3/8" PHPM (2)

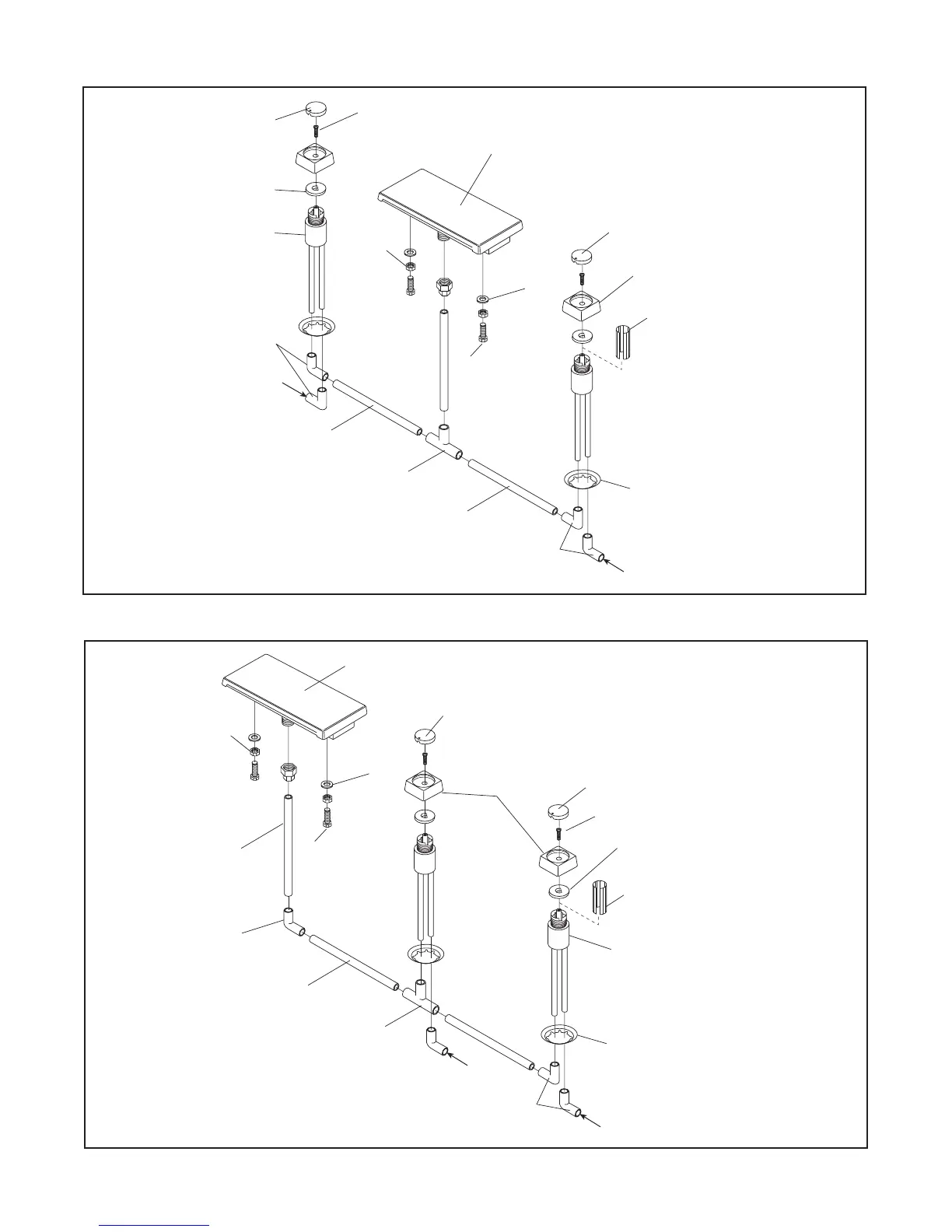

SUGGESTED WATER RAINBOW
PLUMBING SCHEME A - FOR
SEPARATED VALVE
CONFIGURATIONS
(Pipe and fittings not provided.)
G
FAUCET HANDLE (2)
FAUCET HANDLE
5/8" X 1/2"
ELL
5/8" O.D.
COPPER PIPE
TEE 5/8" X 5/8" X 1/2"
5/8" X 1/2"
ELL
INSERT FAUCET HANDLE
(COLD)
FAUCET
HANDLE (2)
SCREW #10-24 X3/8" PHPM (2)
H
5/8" O.D.
COPPER PIPE
GASKET
INSERT
FAUCET HANDLE
(HOT)
VALVE (2)
HOT WATER
SUPPLY
COLD WATER
SUPPLY
SPEEDNUT
PUSH-ON 1-1/2" (2)
FAUCET WRENCH
WATER RAINBOW
FILL SPOUT
WASHER
1/4" FLAT (2)
LOCKNUT
1/4-20 (2)
BOLT
1/4-20 X 1-1/2"
HEX HEAD
SUGGESTED WATER RAINBOW
PLUMBING SCHEME B - FOR
PAIRED VALVE CONFIGURATIONS
(Pipe and fittings not provided.)
FAUCET HANDLE (2)
