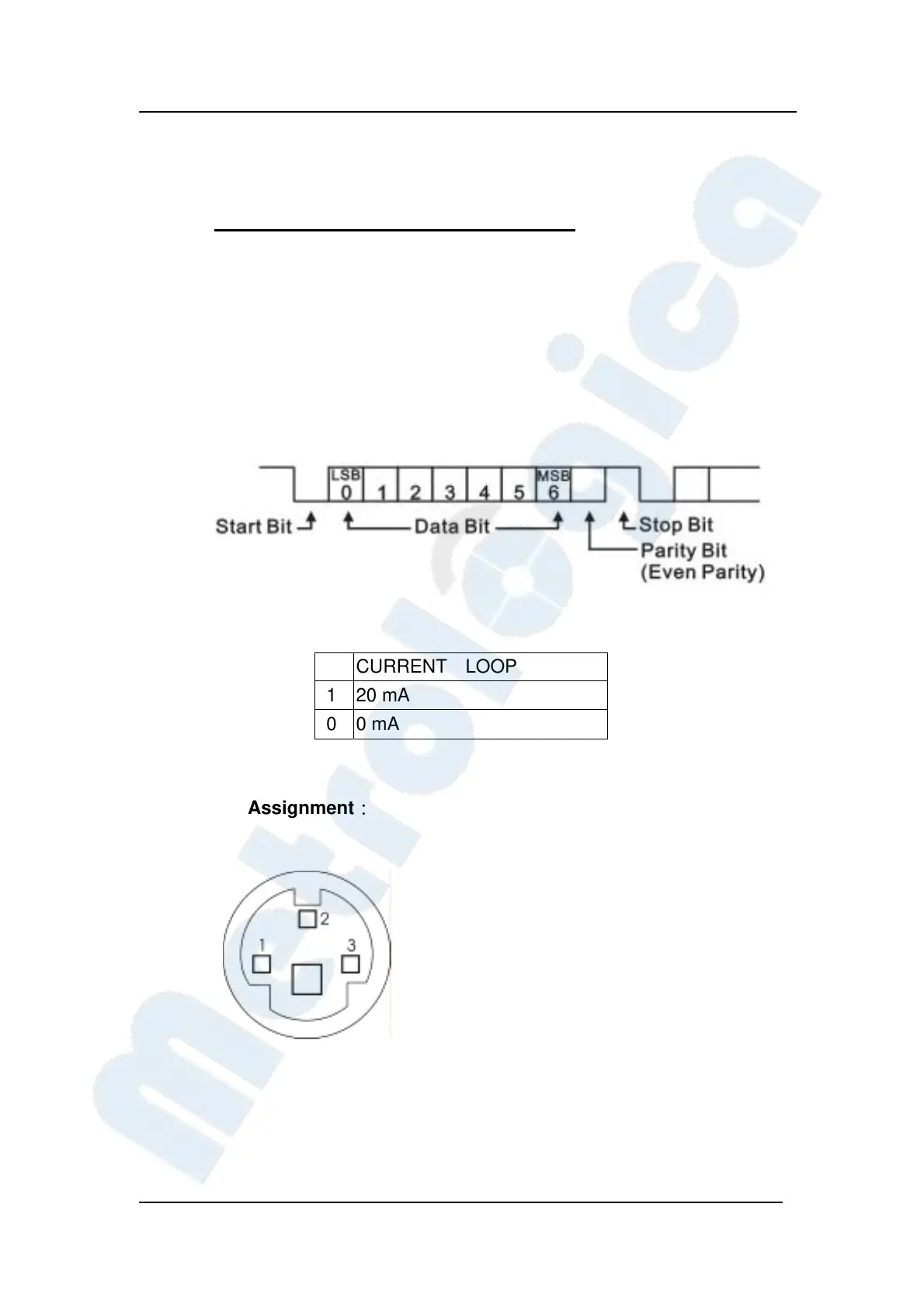

4-9 20mA Current Loop
20 mA Current Loop Specifications
1. Baud Rate
：1200 bps
2. Data bit
：7 bit
3. Parity
：Even Parity
4. Stop bit
：1 bit
5. Output Code
：ASCII
CURRENT LOOP
1 20 mA
0 0 mA
Pin Assignment：
Pin 1：Serial Output
Pin 2：Frame Ground
Pin 3：Serial Output
＊＊Output has no polarity , rather it is
bi-directional.
