JAKI H1 - Page 2

H1 DIRECT DRIVE LOCKSTITCH MACHNE
OPERATION INSTRUCTION
1
、

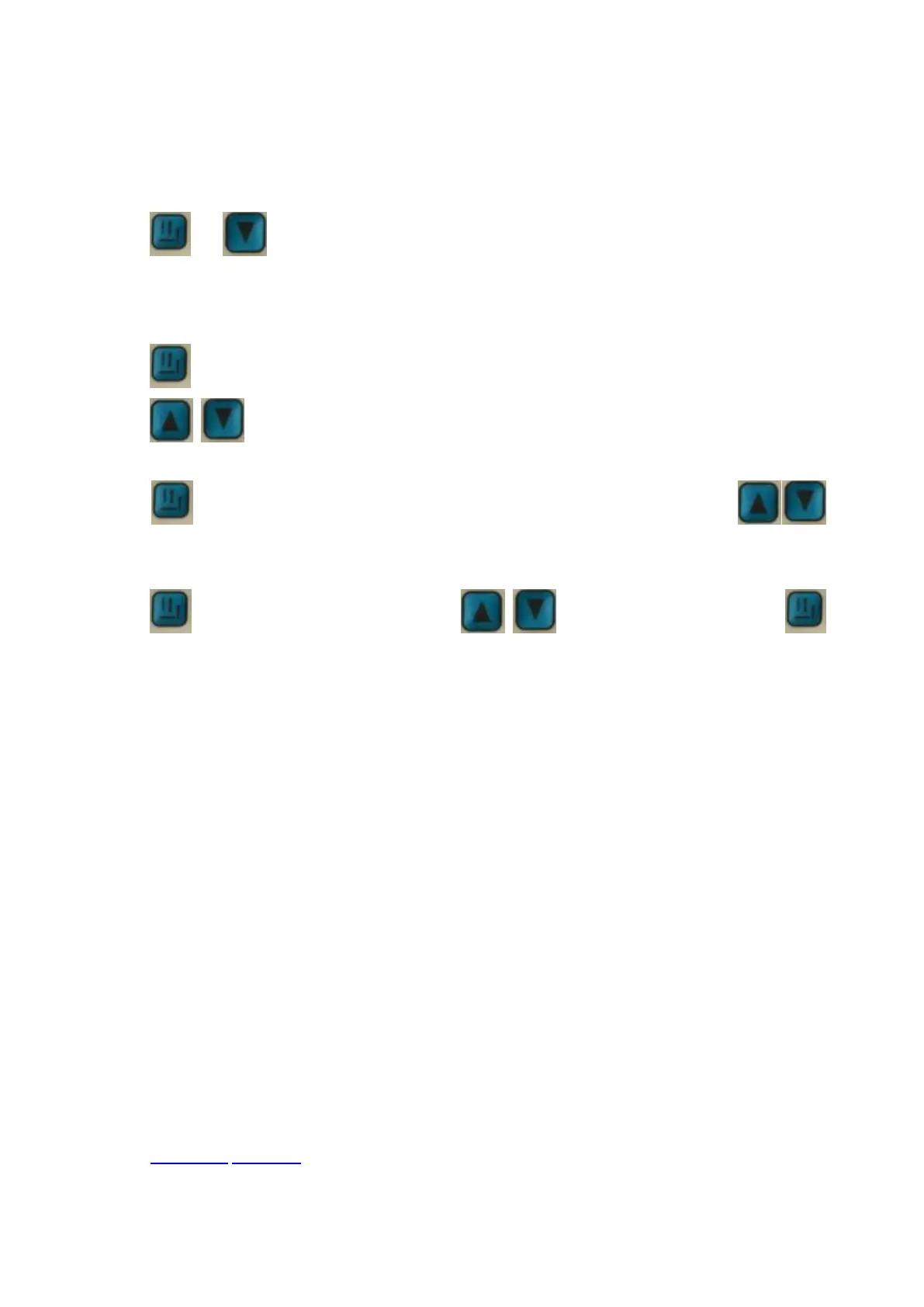

Restore factory settings
：
Press + start the machine。
When the nixie tube appears [- -] reference the end up of restore factory settings。
2
、
Power interface
Press alter up and down needle position
。
Press alter the R.P.M of motor。
3
、
Modify parameters
Press start-up the machine and enter parameter list mode
，
press
modify parameter number
，
Press ,enter modify parameter status，press modify the number, then press
save and quit
。
Restart the machine to turn to the normal interface after modifying parameters.
P0 ---- =0 No needle position, =1 auto needle position
P1 ---- maximum speed limitation P2 ---- upper needle position
P3 ---- lower needle position P4 ---- auto test speed
P5 ---- auto test the running time P6 ---- auto test stopping time
P7 ----=0 auto test OFF, =1 auto test ON
P8 ---- pedal maximum analogue retain
P9 ---- pedal minimum analogue retain
PA ---- retain PB ---- pedal upper limit voltage
PC ---- pedal medium voltage PD ---- retain
PE ---- retain PF ---- three-phase signal stop hall monitor
PF. ---- software version number
[Error Code Instruction]
E1 ---- cannot find the up needle position E2 ---- pedal abnormity
E3 ---- abnormal three-phase motor signal E4 ---- cannot reach the lowest speed,
（
1
、
the abnormity
of three-phase signal, 2
、
controller broke down
）
E5 ---- overcurrent protection E6 ---- the protection of lifting the head (engine stopped)
E7 ---- cannot reach the highest speed
