Jammin X1CR - Brake and Center Diff. Mount Assembly

10
Step 1
Step 2Step 1
Step 2
28
30
29
..........X4

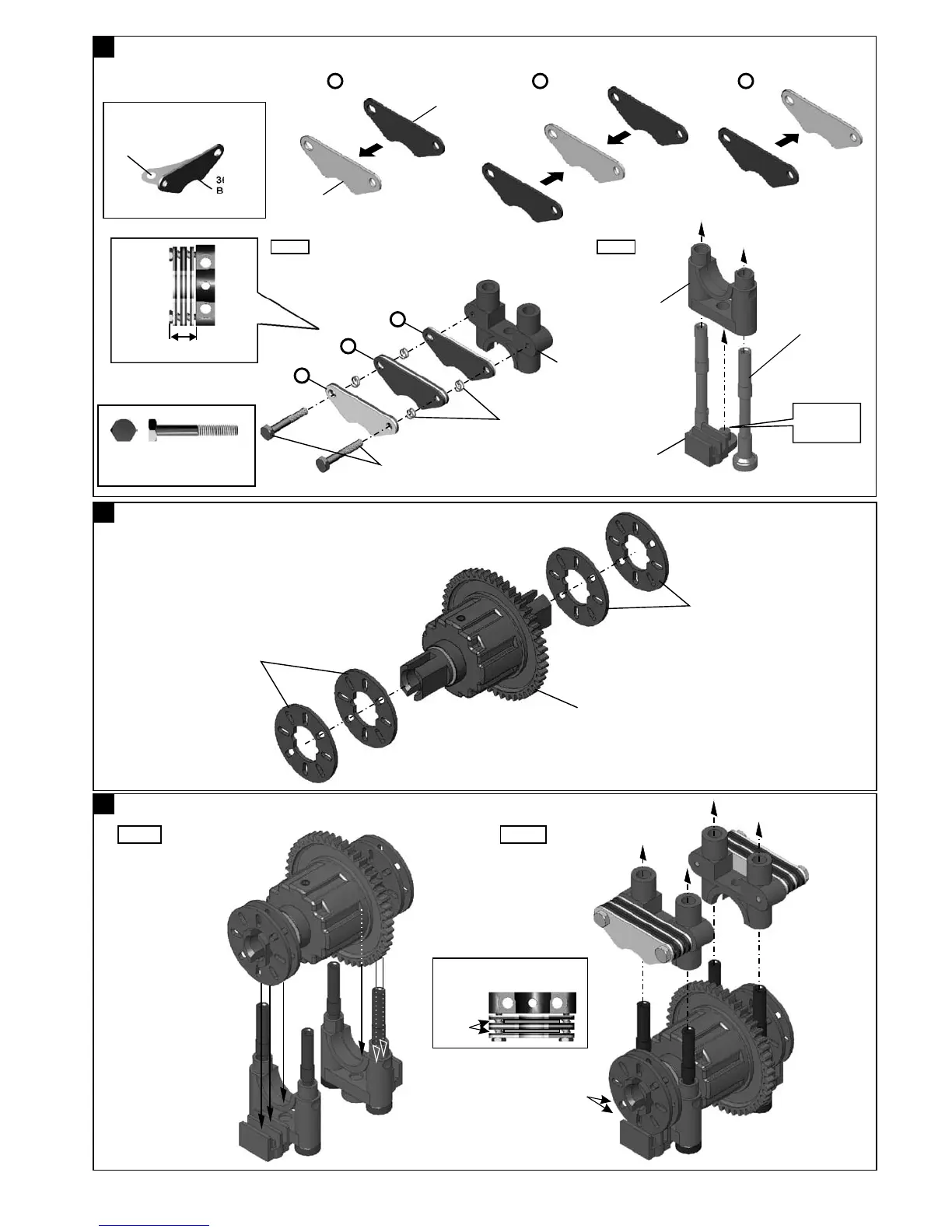

ASSEMBL OF THE BRAKE PADS AND CENTER DIFF. MOUNTY
ASSEMBL OF THE CENTER DIFF. INTO BRAKE DISKY
Make brake pads for each side as shown.
40044
Brake Pad
Spring
40045
Brake Pad
Adjustment Screw
40045
M3x20L
Brake Pad Adjustment Screw
40040
Center Diff.
Mount
Assembly the
brake disc holder
in the direction as
shown.
36661
Brake Pad
Linings
* Remove the double-side
tape before assembly.
A
B
C
36660
Brake Pad
40040
Center Diff.
Mount
40040
brake Disc
Holder
36661
Brake Pad
Linings
40512
Center Diff.
Mount Post
A B C
40042
Brake Disk
40042
Brake Disk
Center Diff.
Assemble
Approx. 12mm
ASSEMBL OF THE CENTER DIFF. INTO CENTER DIFF. MOUNTY
double-side
tape
* Place the brake disc between
the brake disc pads.
Brake
disc
* Put the brake disc into
brake disc holder.
