Fridgewatch 2000 Controller Mk5

Publication 3-59 Section 3

Page 91 of 222 Issue 3.2 : 05.23

24 V dc low consumption relay

mounted in the auxiliary starte

Fridgewatch will energise this

relay when the oil pump is

required to run

Oil Pump

Run

Request

Q100.7

DQa.7

Liquid Valve

Enable Relay

5K3 Q101.0

506 DQb.0

Economiser

Electronic

Expansion

Valve/

Controller

Enable Relay

5K4 Q101.1

507 DQb.1

Relays must be low consumption type, 40 mA maximum, Omron LY2 or similar (RS Components part number 329-799).

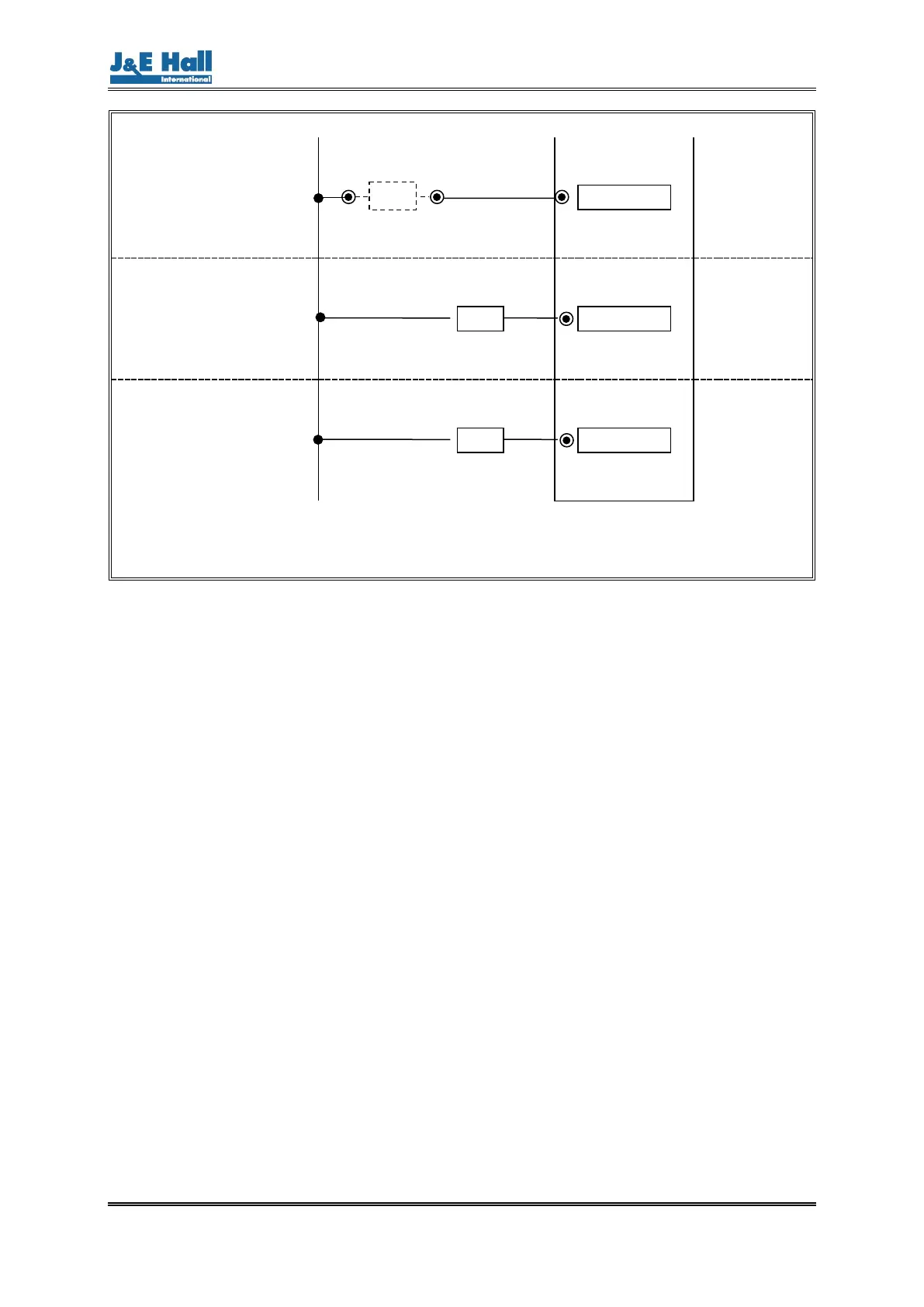

Fig 61 DIGOUT Wiring Connections to Slot 1

Oil pump run

output relay

227

226
