65
UMG 96RM
Limit value monitoring
Two comparator groups are available for monitoring a
limit value.
Comparator group 1 is assigned to digital output 1 and
comparator group 2 is assigned to digital output 2.
Digital
output 1
13
14
Source
selection
Addr. 200 =0
0/1
Comparator group 1
Comparator A
Comparator B
Comparator C
Logic
Result
Addr. 616
UMG 96RM
0/1
Inverter
Adr. 201=0 (not inverted)
Adr. 201=1 (inverted)
0/1
Addr. 608 =0
State of
digital output 1

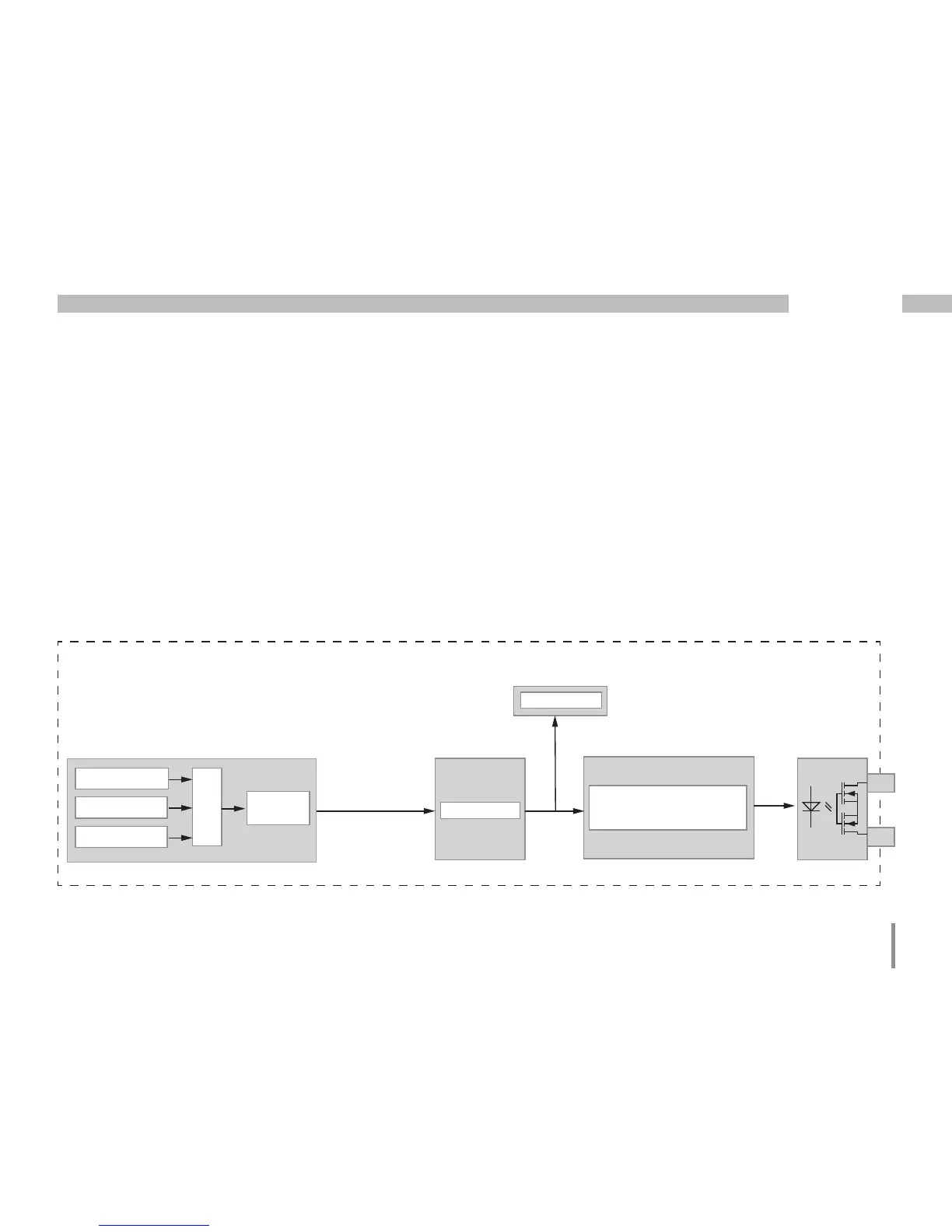

Block diagram: Use of digital output 1 for limit value monitoring.
