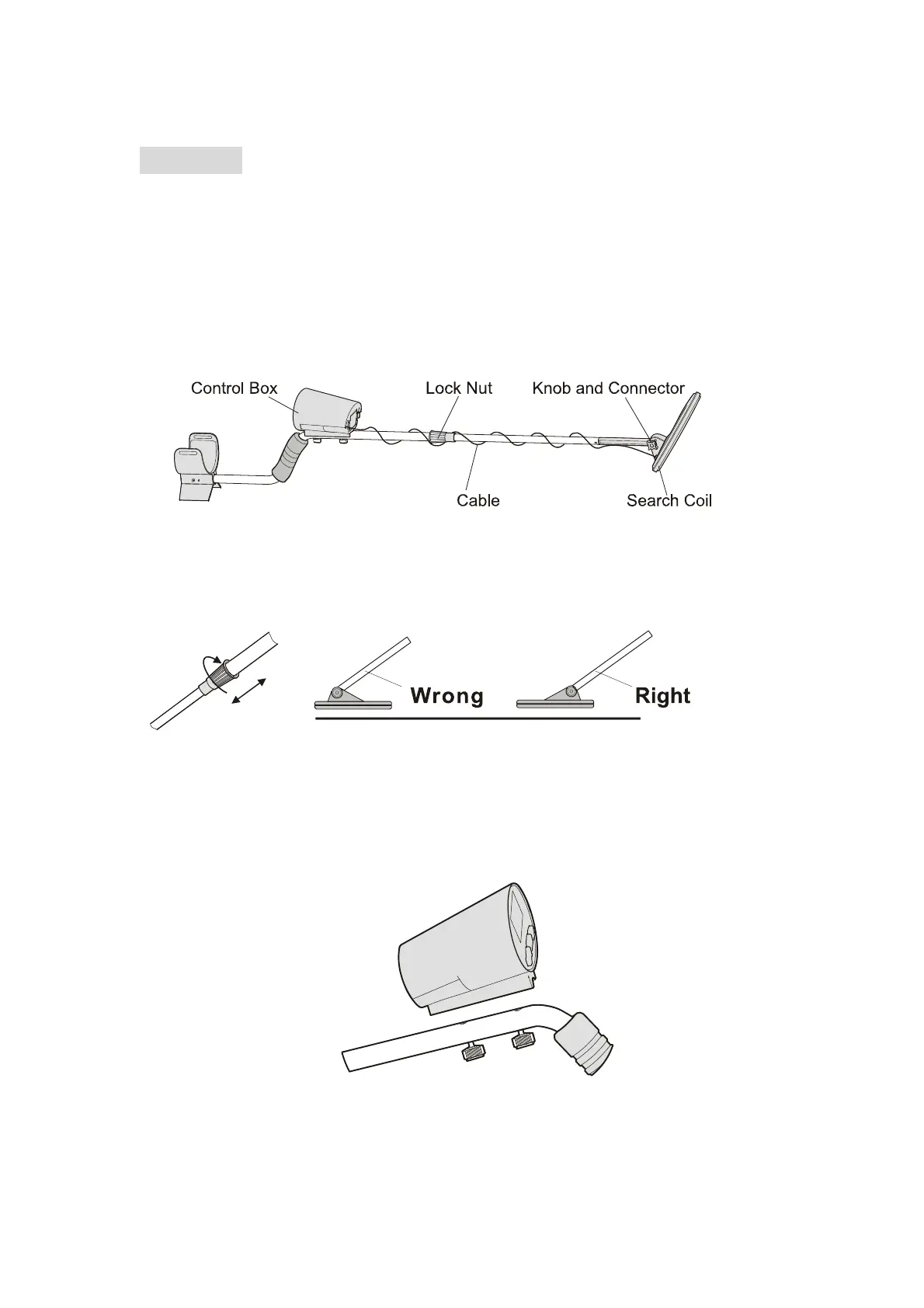

Assembly
1. Relax the end of the bend-shape tube sleeve clockwise, and insert the
aluminum tube which connects the search coil into the tube sleeve, adjusting
the length so that you can stand comfortably and straighten your arms,when
the search coil is from the ground about 1/2 inches,then lock the tube sleeve
anti-clockwise.( Fig.1 and Fig.2)
2.
Fig. 1
Fig. 2
3. Let the plastic pillar with two nuts on the bottom of the detector control box
align with the two holes of the bend shape aluminum tube,and then lock it with bolts.
(Fig.3)
Fig. 3
Coil the cable of the search coil onto the stem,elasticity within measure so that the
cable won’t sway, and then insert the cable plug into the lower right plug of the
2
