JAYCO TOWABLE SECTION 5 - SLIDEOUT SYSTEM
JFSTT/JFXTT 5-3
Dexter Chassis Group (DCG) Center Drive Slide override (flush floor models)
Disconnect the slideout motor brake wires from the power wires. Connect a 9 volt
battery harness to the motor brake wires Locate the manual advance crank nut on
the backside of the motor.
Crank the nut on the slideout motor with a 5/8” socket. With the 9 volt battery
connected to the motor brake crank the nut on the motor until the room is sealed.
Once the slide is in a closed position remove the 9 volt battery and harness.

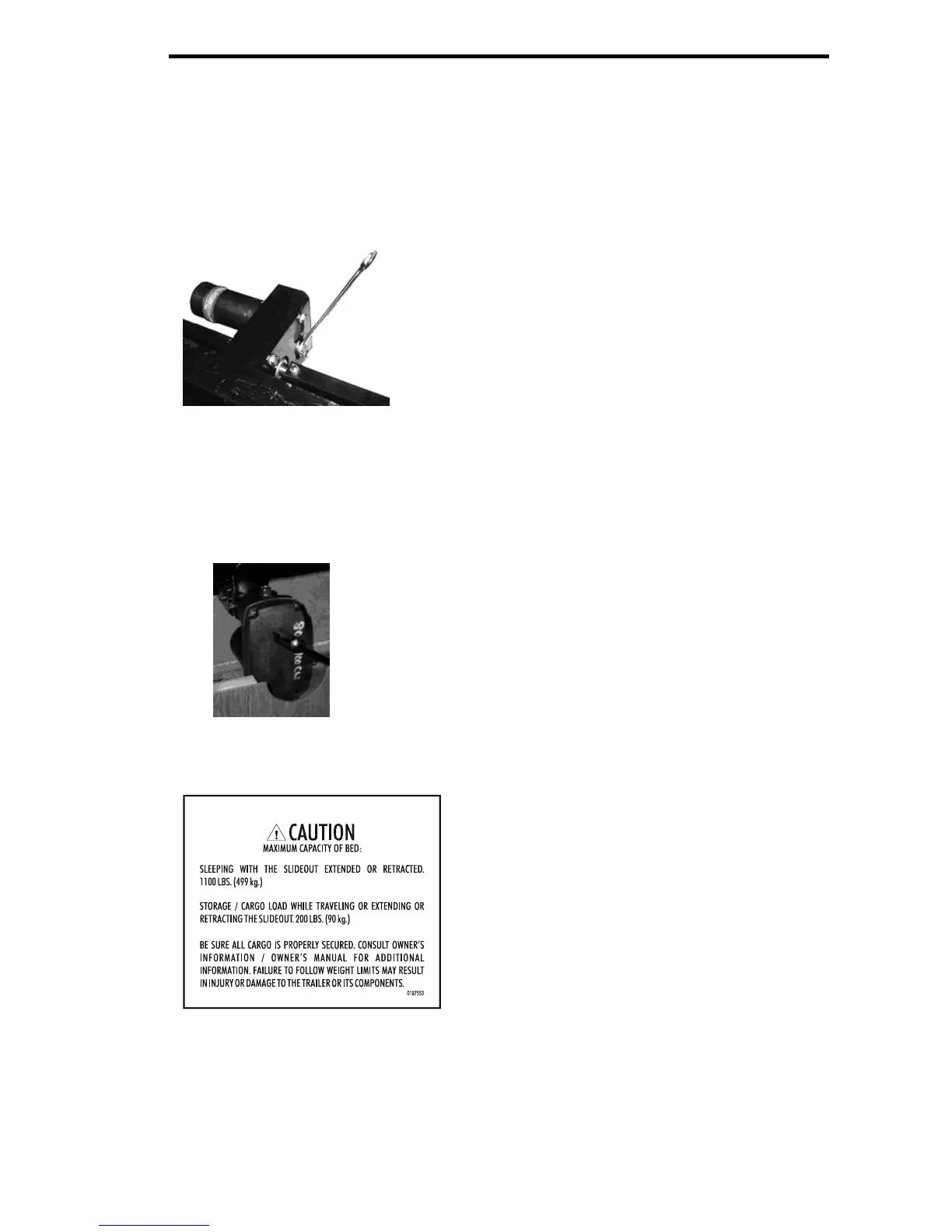

Fig. 5.3 DCG manual advance
crank nut
M-Tec rear bed/flush floor slideout override
In the event of a power failure or low battery, the slideout may be operated
manually using the manufacturer’s crank handle provided with your RV. The
manual crank shaft is located on the motor transmission housing. USE ONLY THE
MANUFACTURER’S CRANK HANDLE PROVIDED. Turn the crank clockwise to
move the room “in”, counter-clockwise to move the room “out”.
The following decal should remain permanently affixed to your RV. If you have any
questions regarding the rear wall slideout system please contact your dealer or
our customer service department.
Fig. 5.5 Rear bed
slideout label
M-Tec sofa slideout override
In the event of a power failure or low battery, the slide-out room may be operated
manually with a 5/8” ratchet wrench (not supplied). The manual crank shaft is
located on the motor-transmission housing. Turn the crank clockwise to move the
room “in”, counter-clockwise to move the room “out”.
Fig. 5.4 M-Tec crank handle inserted
to override the slideout motor
